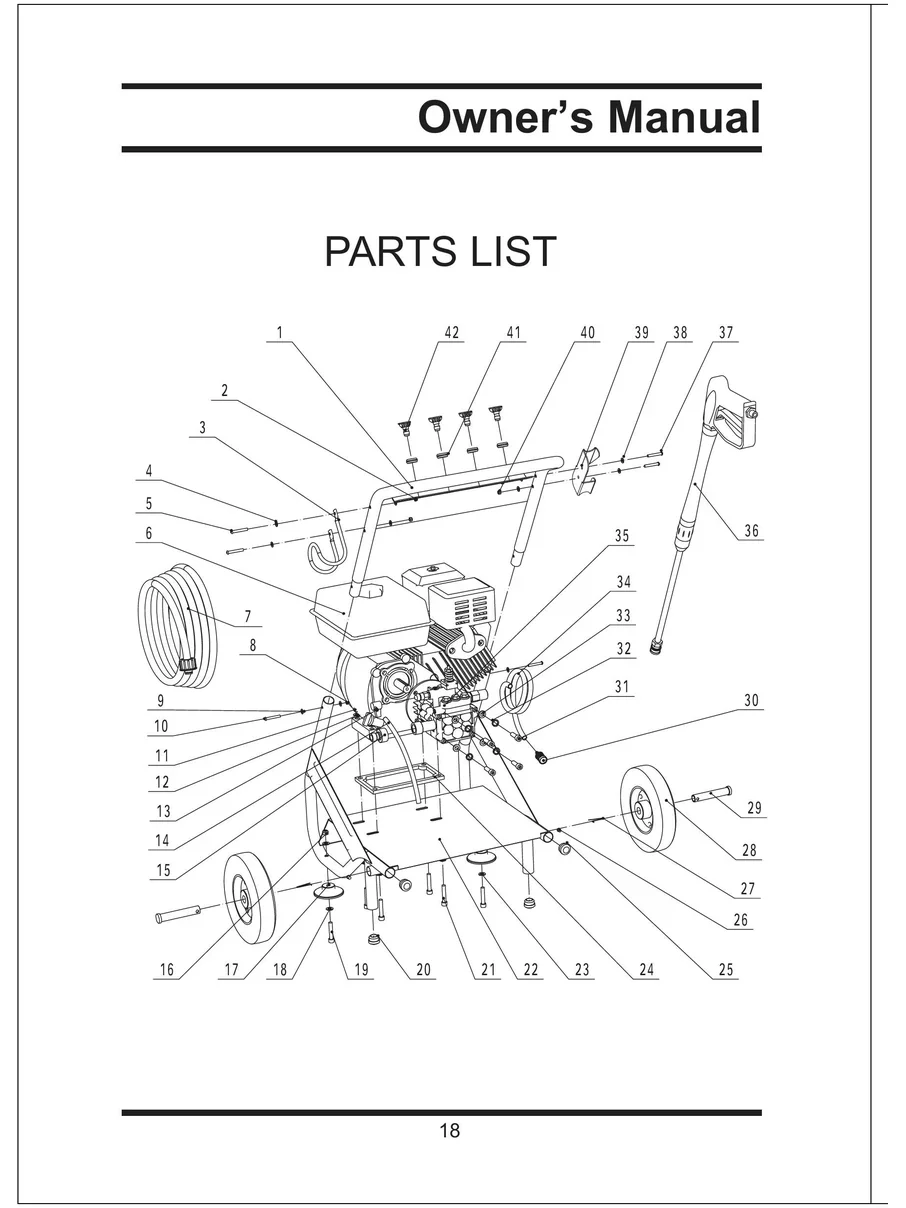

ALL POWER, APW5117, IPL.10
ALL POWER, APW5117, IPL.11
TECHNICAL SPECIFICATIONS
DOCUMENTS
Product Specifications and Attributes
Color Color Red Max PSI Max PSI 2400 PSI
Direction Direction Reverse Facing Nozzle Count Nozzle Count 4
Drive Type Drive Type Direct Nozzle Orifice Size Nozzle Orifice Size 3
Frame Orientation Frame Orientation Vertical Nozzle Type Nozzle Type Quick Connect
Frame Type Frame Type Cart Power Source Power Source Gasoline
Gun Outlet Gun Outlet 22 mm 14 F Pressure Washer Type Pressure Washer Type Cold Water
Hose Inlet Hose Inlet 22 mm 14 F Pump Orientation Pump Orientation Horizontal
Hose Length Hose Length 25' Shaft Type Shaft Type Hollow Shaft
Hose Material Hose Material Thermoplastic Wand Inlet Wand Inlet 22 mm 14 M
Max GPM Max GPM 3 GPM Wand Length Wand Length 20"

Illustrated Parts List
