TECHNICAL SPECIFICATIONS
DOCUMENTS
Product Specifications and Attributes
Color Color Black Nozzle Count Nozzle Count 4
Direction Direction Forward Facing Nozzle Orifice Size Nozzle Orifice Size 4
Drive Type Drive Type Direct Nozzle Type Nozzle Type Quick Connect
Frame Orientation Frame Orientation Vertical Power Source Power Source Gasoline
Frame Type Frame Type Cart Pressure Washer Type Pressure Washer Type Cold Water
Hose Diameter Hose Diameter 0" Pump Orientation Pump Orientation Horizontal
Hose Length Hose Length 25' Pump Shaft Diameter Pump Shaft Diameter 1"
Hose Material Hose Material Rubber Pump Type Pump Type Triplex Plunger
Max GPM Max GPM 3 GPM Shaft Type Shaft Type Hollow Shaft
Max PSI Max PSI 2700 PSI Weight Weight 95 lb

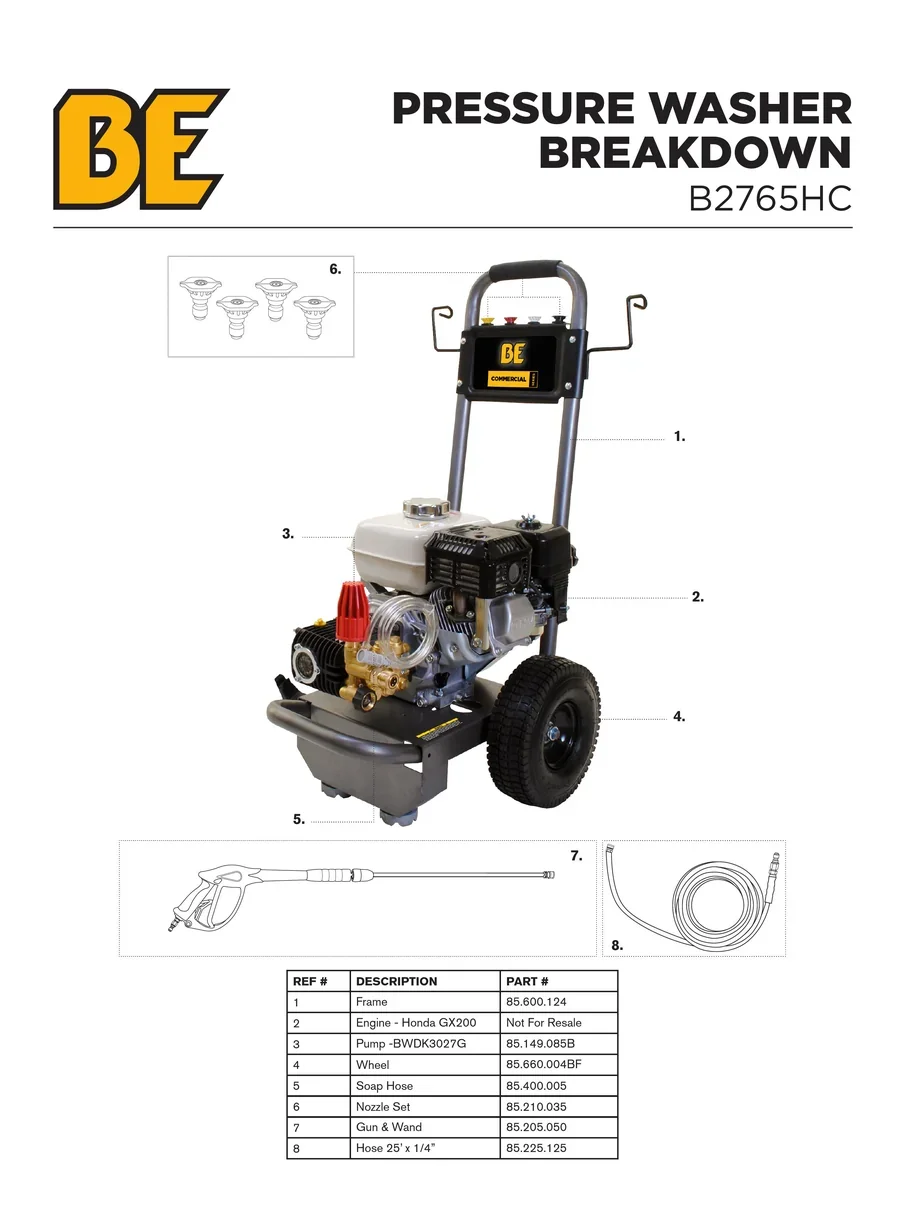

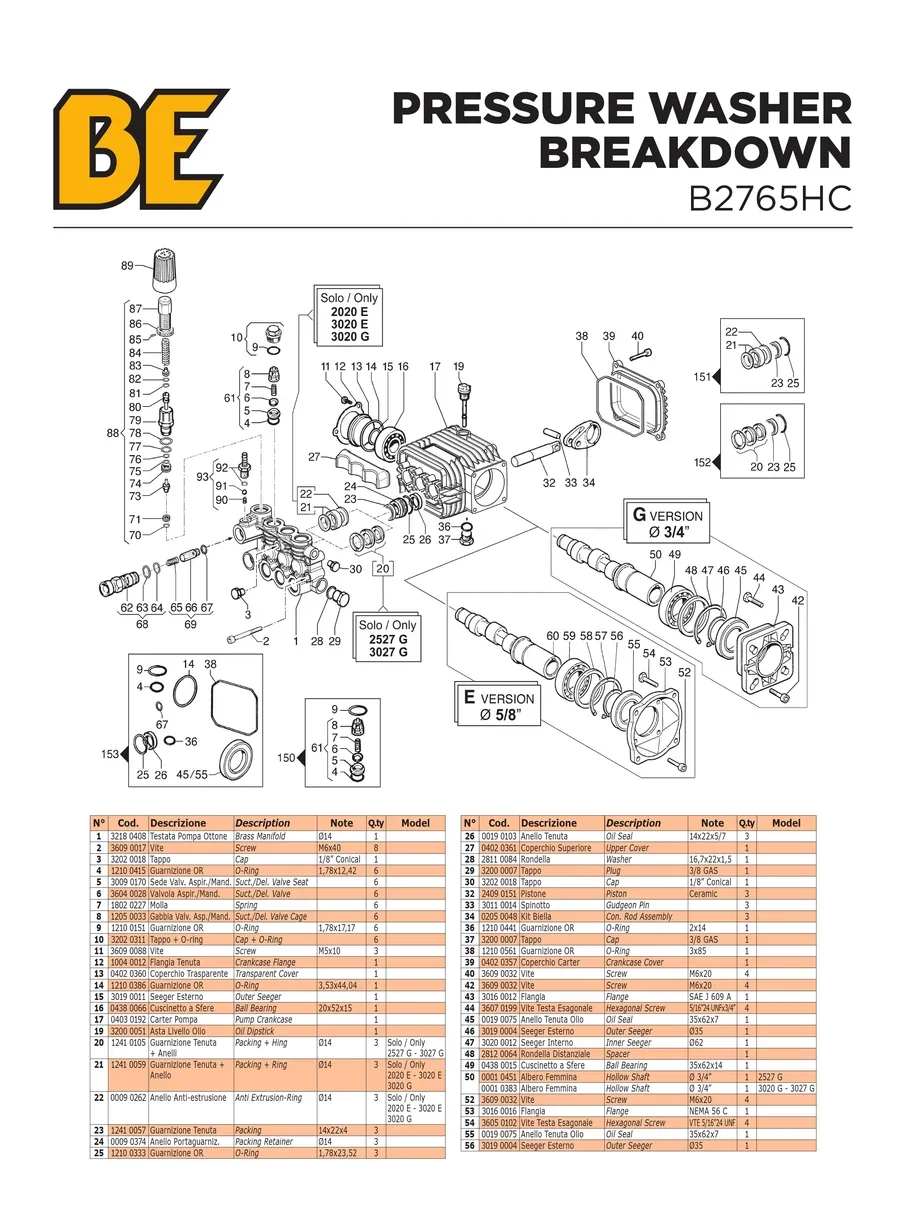

Illustrated Parts List

Owners Manual

Spec Sheet
