BE, B4013HCS, IPL.1
BE, B4013HCS, IPL.3
BE, B4013HCS, IPL.4
TECHNICAL SPECIFICATIONS
DOCUMENTS
Product Specifications and Attributes
Color Color Black Nozzle Orifice Size Nozzle Orifice Size 4
Direction Direction Forward Facing Nozzle Type Nozzle Type Quick Connect
Drive Type Drive Type Direct Power Source Power Source Gasoline
Frame Orientation Frame Orientation Vertical Pressure Washer Type Pressure Washer Type Cold Water
Frame Type Frame Type Cart Pump Orientation Pump Orientation Horizontal
Hose Diameter Hose Diameter 0" Pump Shaft Diameter Pump Shaft Diameter 1"
Hose Length Hose Length 50' Pump Type Pump Type Triplex Plunger
Max GPM Max GPM 4 GPM Shaft Type Shaft Type Hollow Shaft
Max PSI Max PSI 4000 PSI Weight Weight 150 lb
Nozzle Count Nozzle Count 4

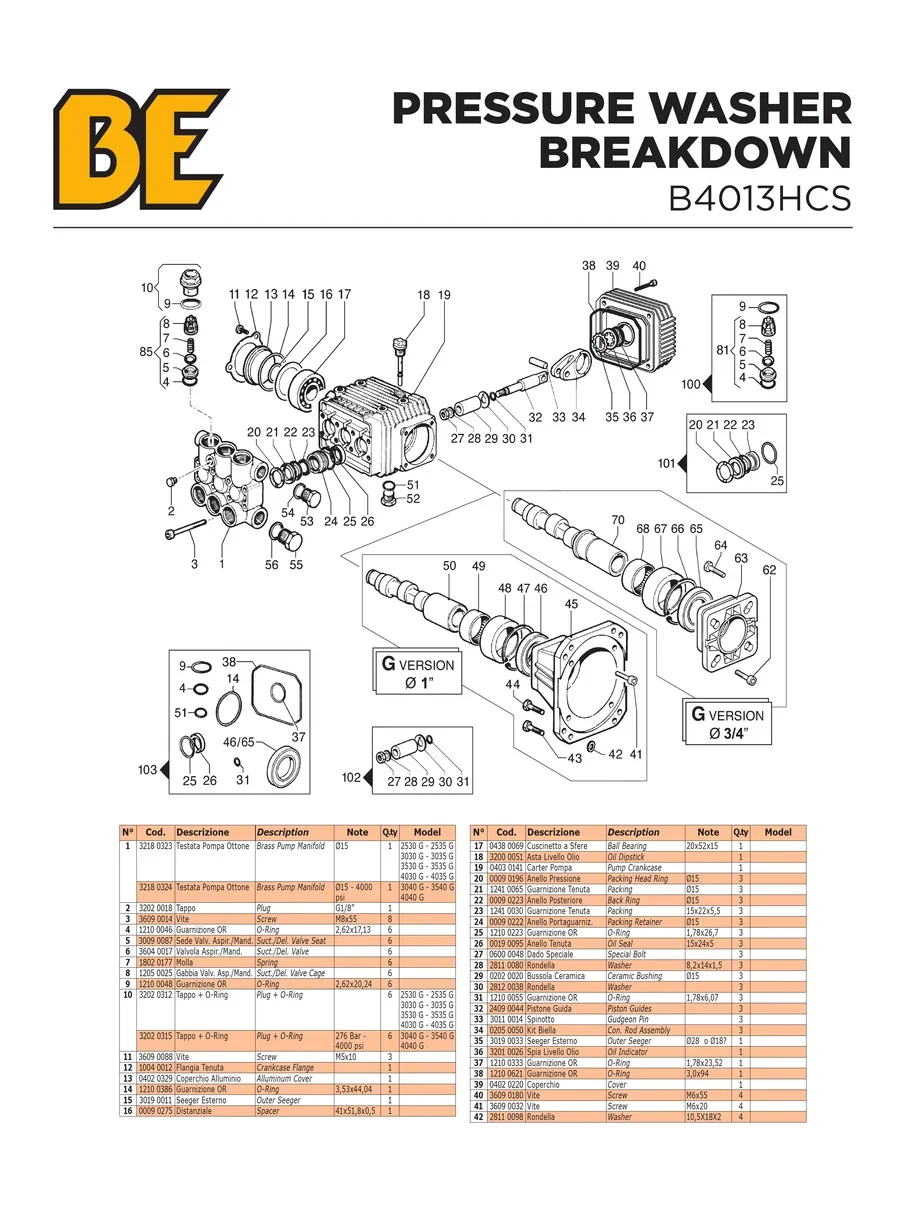

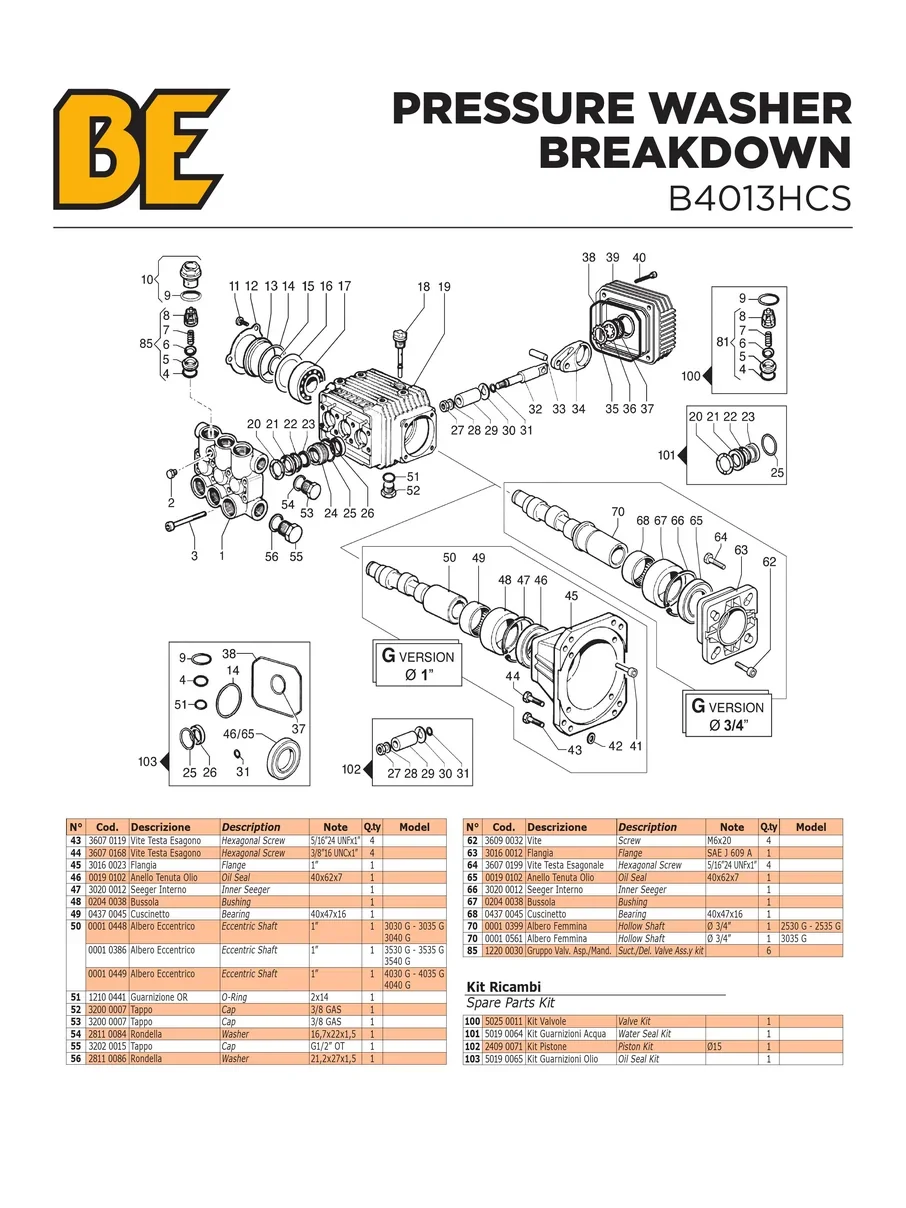

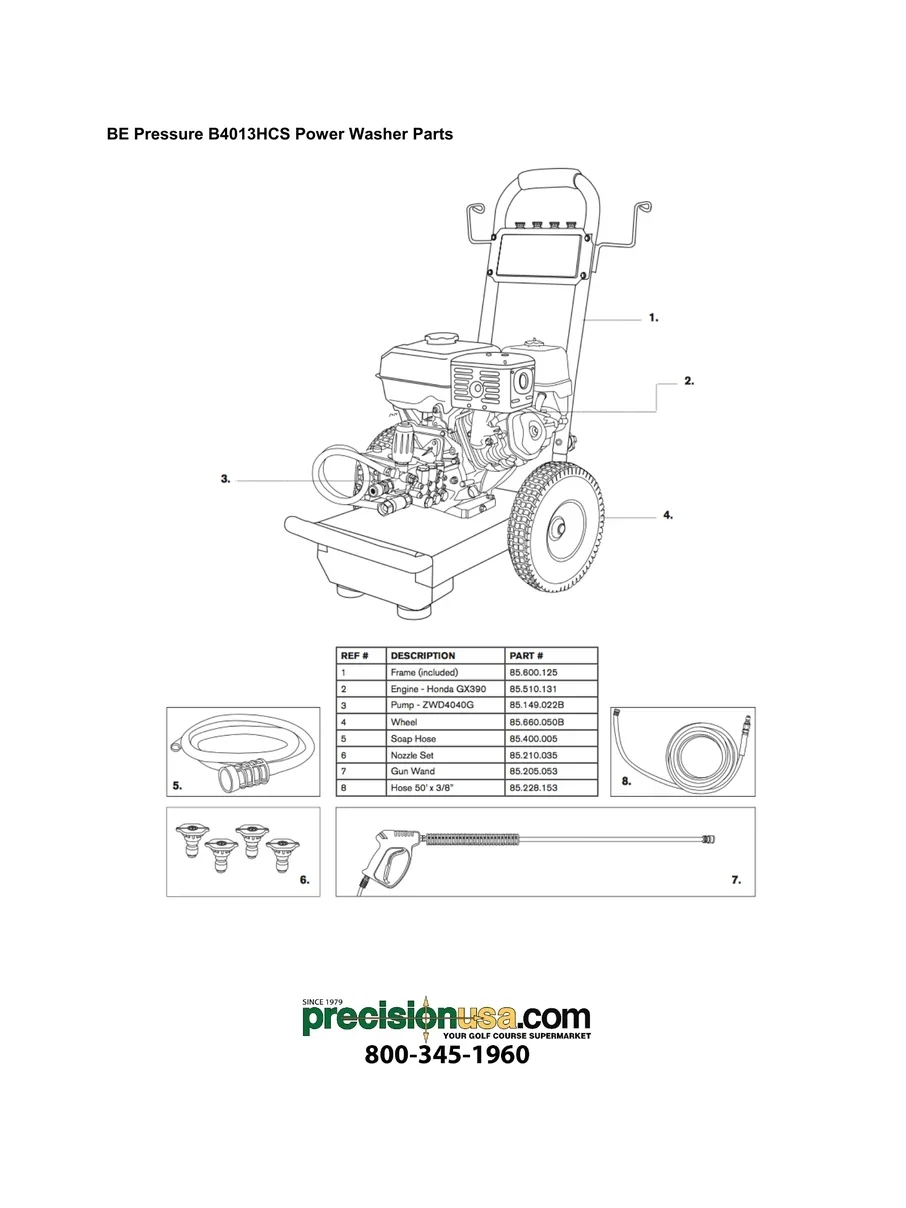

Illustrated Parts List

Owners Manual

Spec Sheet
