TECHNICAL SPECIFICATIONS
DOCUMENTS
Product Specifications and Attributes
Direction Direction Reverse Facing Max PSI Max PSI 3000 PSI
Drive Type Drive Type Direct Nozzle Orifice Size Nozzle Orifice Size 3
Frame Orientation Frame Orientation Horizontal Nozzle Type Nozzle Type Quick Connect
Frame Type Frame Type Cart Power Source Power Source Gasoline
Gun Inlet Gun Inlet 22 mm 14 M Pressure Washer Type Pressure Washer Type Cold Water
Gun Outlet Gun Outlet 22 mm 14 F Pump Orientation Pump Orientation Horizontal
Hose Inlet Hose Inlet 22 mm 14 F Pump Shaft Diameter Pump Shaft Diameter 1 in
Hose Length Hose Length 25 ft Pump Type Pump Type Triplex Plunger
Hose Material Hose Material Thermoplastic Shaft Type Shaft Type Hollow Shaft
Hose Outlet Hose Outlet 22 mm 14 F Wand Inlet Wand Inlet 22 mm 14 M
Max GPM Max GPM 2 GPM Wand Length Wand Length 20 in

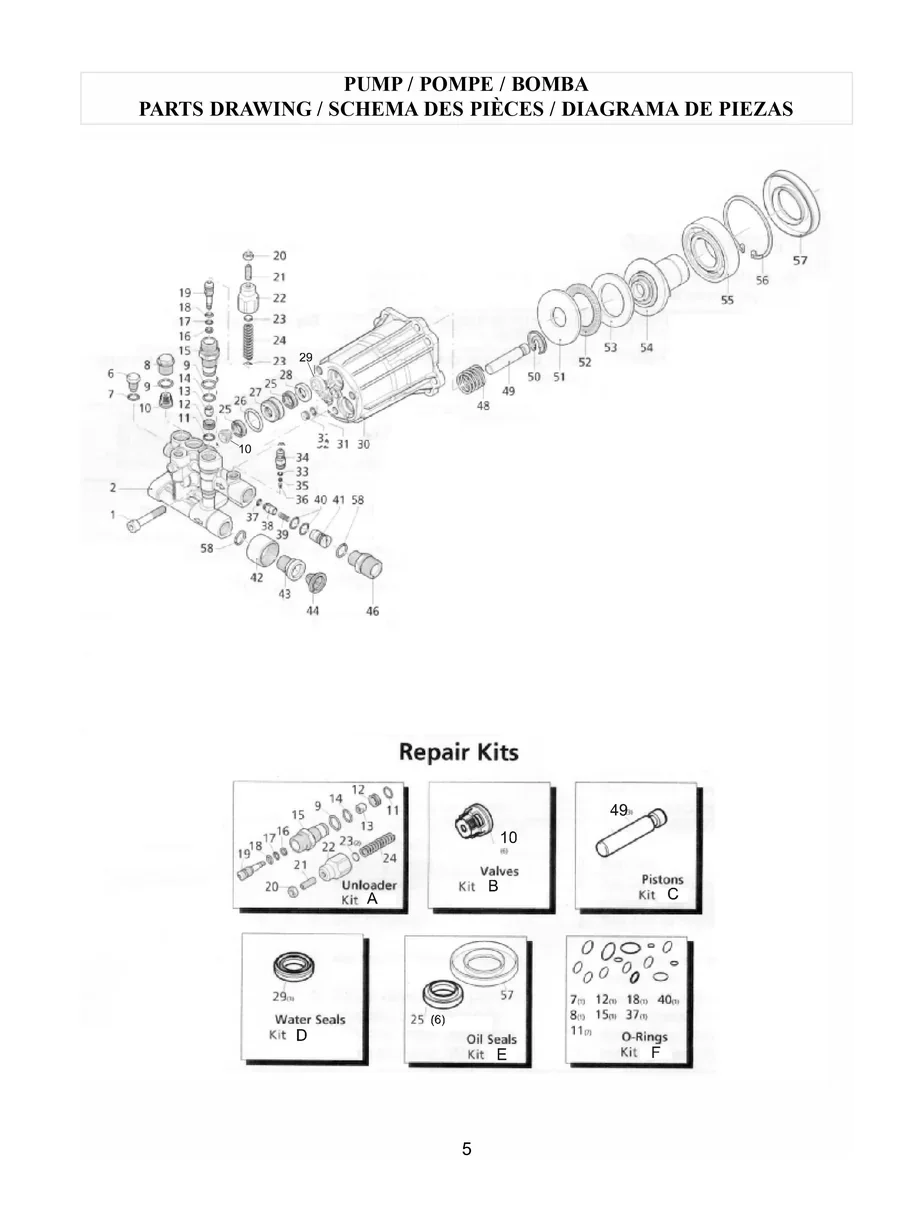

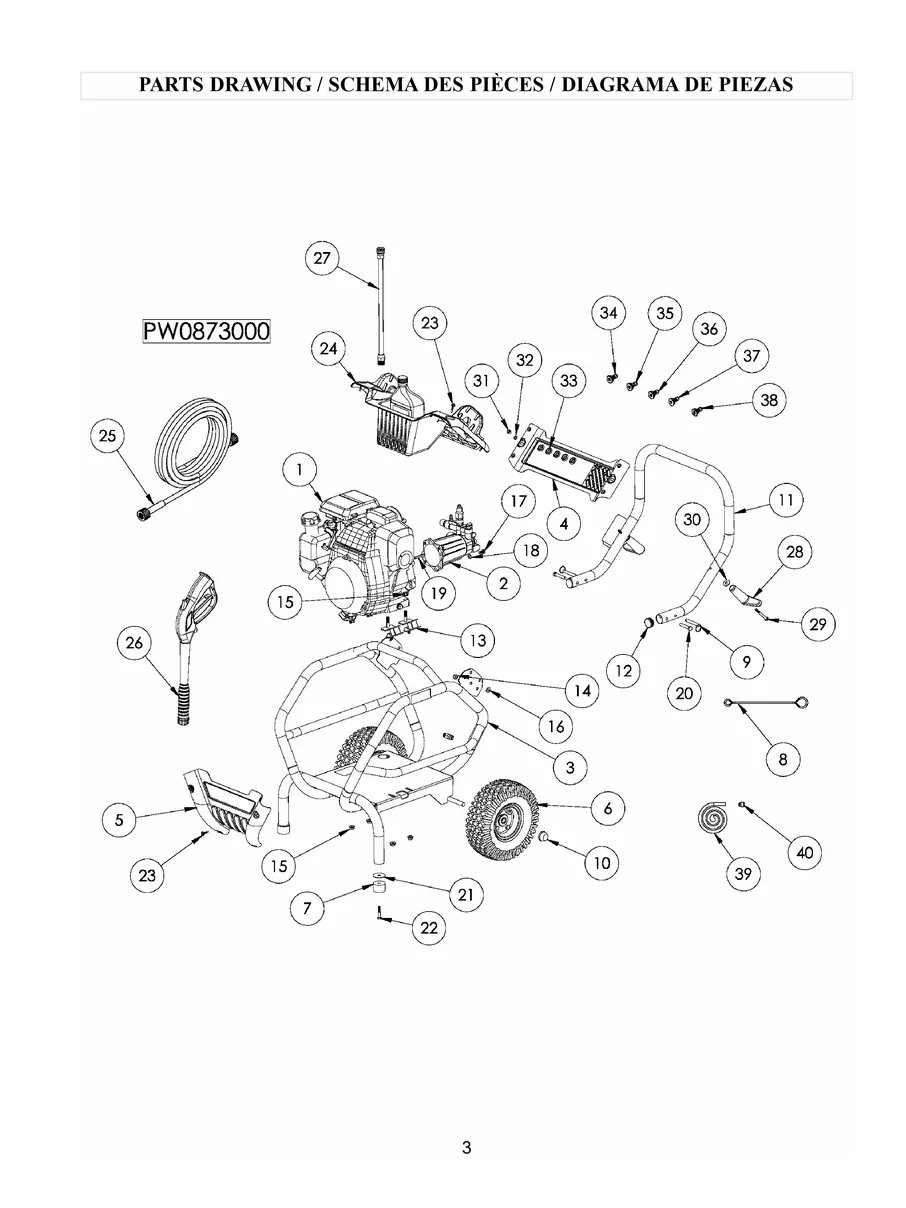

Illustrated Parts List
