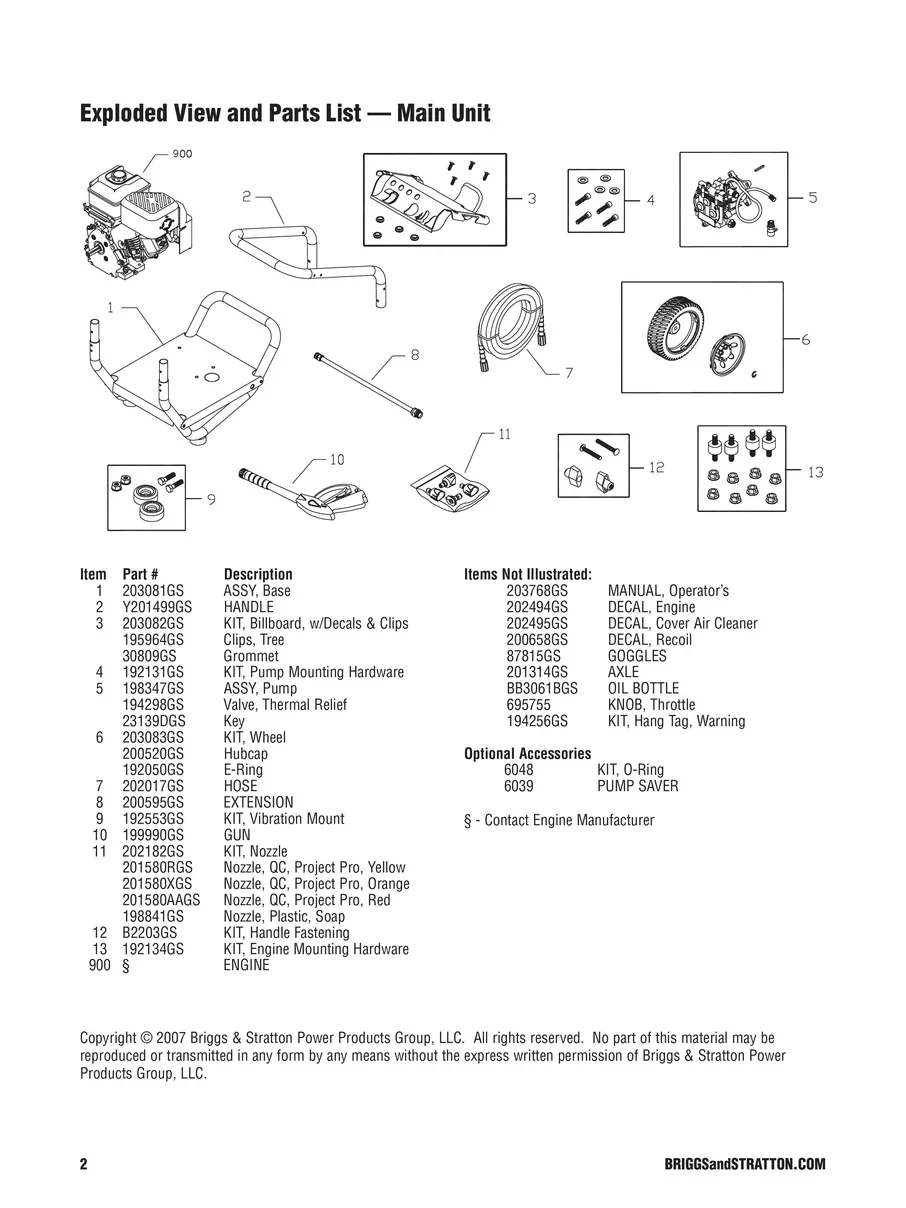

BRIGGS AND STRATTON, 020320, IPL.2

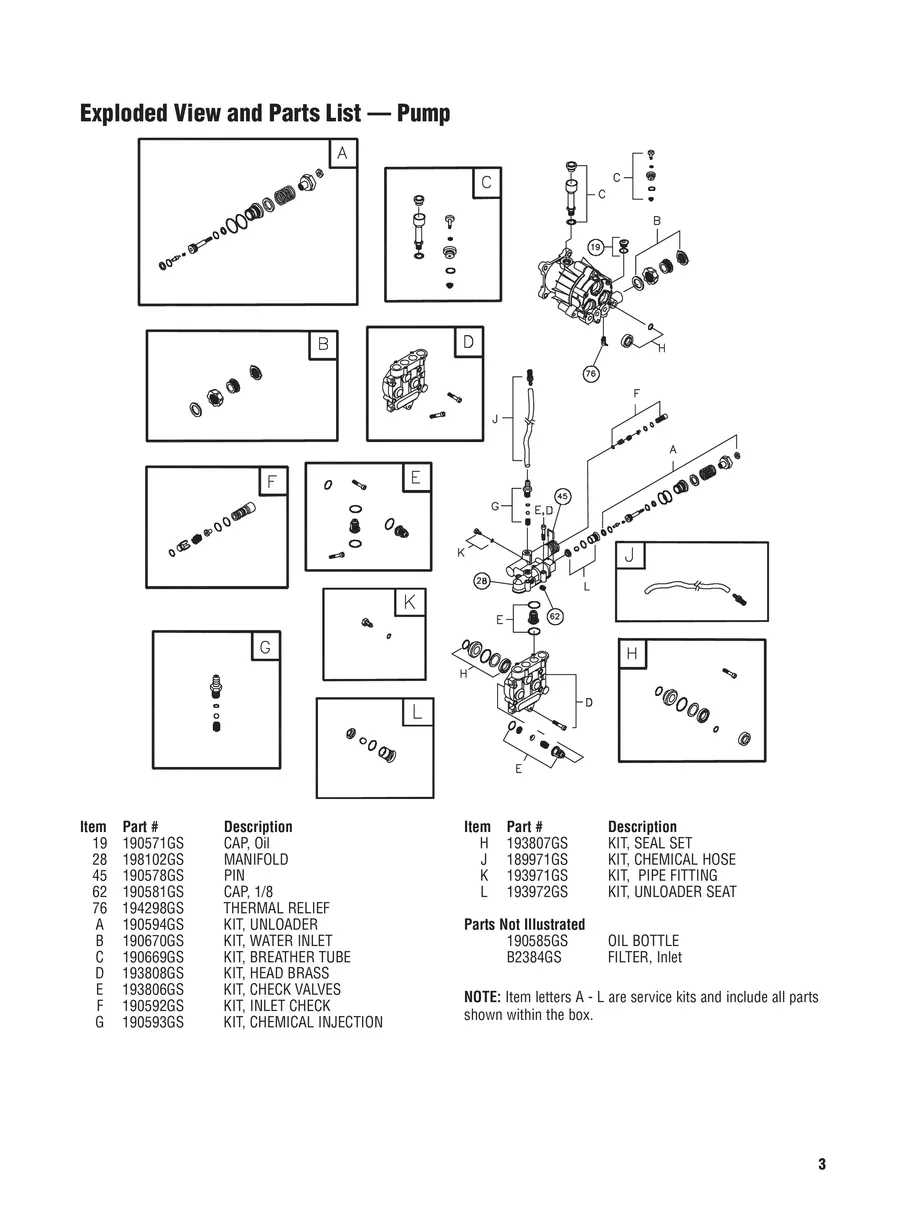

BRIGGS AND STRATTON, 020320, IPL.3
TECHNICAL SPECIFICATIONS
DOCUMENTS
Product Specifications and Attributes
Drive Type Drive Type Direct Max PSI Max PSI 3000 PSI
Frame Orientation Frame Orientation Horizontal Nozzle Count Nozzle Count 4
Frame Type Frame Type Cart Nozzle Orifice Size Nozzle Orifice Size 3
Gun Inlet Gun Inlet 22 mm 14 M Nozzle Type Nozzle Type Quick Connect
Gun Outlet Gun Outlet 22 mm 14 F Power Source Power Source Gasoline
Hose Inlet Hose Inlet 22 mm 14 F Pressure Washer Type Pressure Washer Type Cold Water
Hose Length Hose Length 25' Pump Orientation Pump Orientation Horizontal
Hose Material Hose Material Thermoplastic Shaft Type Shaft Type Hollow Shaft
Hose Outlet Hose Outlet 22 mm 14 F Wand Inlet Wand Inlet 22 mm 14 M
Max GPM Max GPM 3 GPM Wand Length Wand Length 20"
