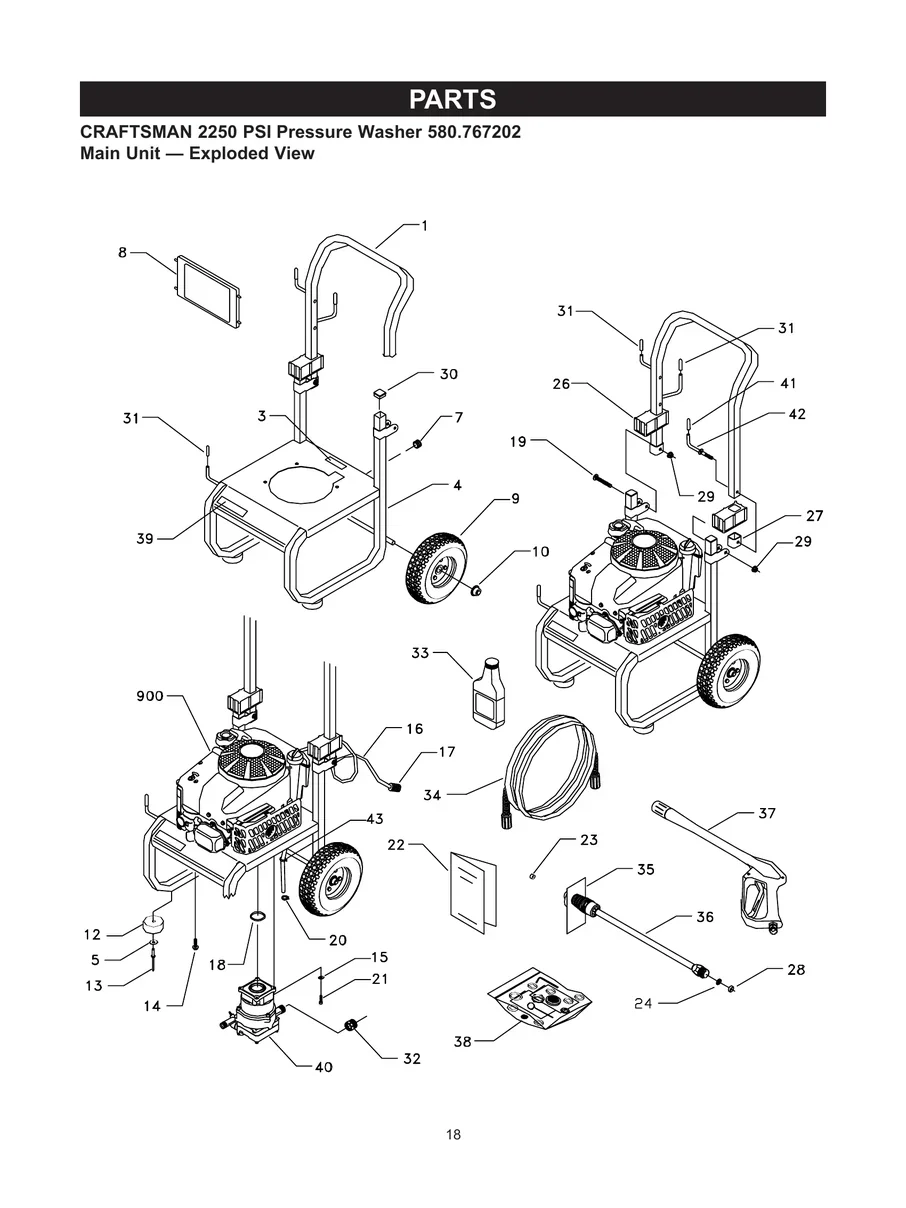

CRAFTSMAN, 580.767202, IPL.18

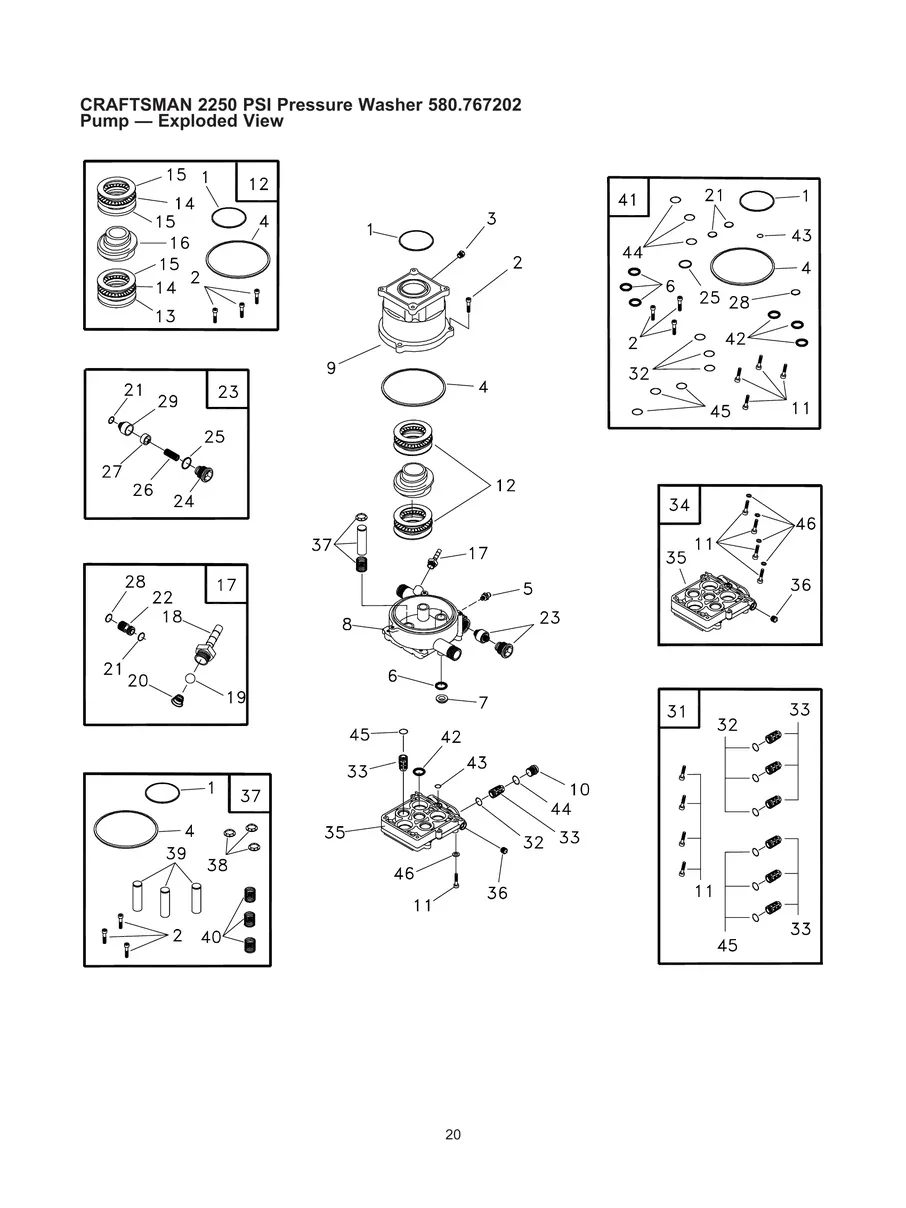

CRAFTSMAN, 580.767202, IPL.20

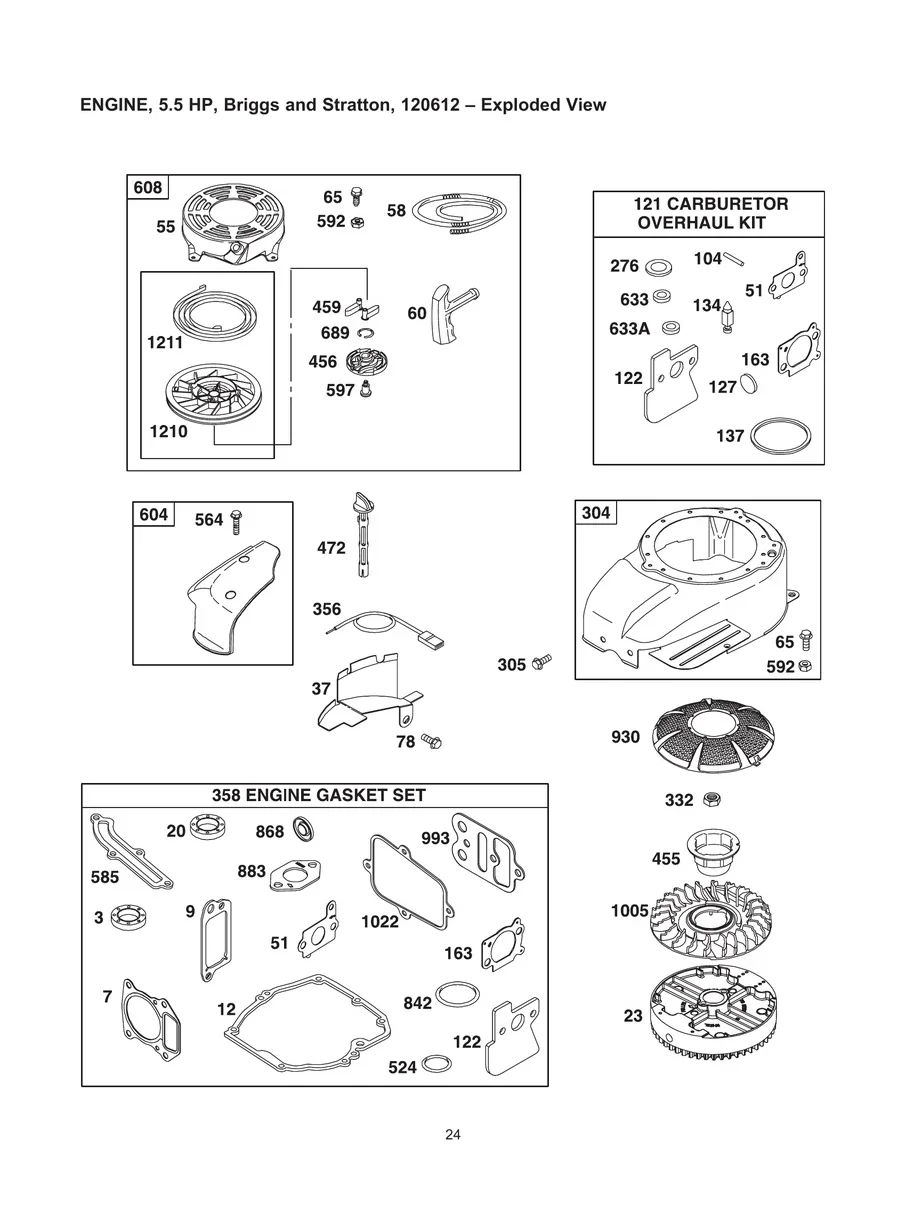

CRAFTSMAN, 580.767202, IPL.24
TECHNICAL SPECIFICATIONS
DOCUMENTS
VIDEOS
MANUFACTURER NOTES
Product Specifications and Attributes
Max GPM Max GPM 2.2 GPM Max PSI Max PSI 2250 PSI

Illustrated Parts List

Winterizing Your Pressure Washer
The Hidden Dangers of Using the Wrong Fuel in Your Pressure Washer
Part Availability Notice
|
2015-01-01
The original pump for this unit has been discontinued. Compatible replacement pumps are available.
Service Bulletin
|
2002-04-22
It is recommended to replace the Engine Air Filter yearly, or after 100 hours of use.
Service Bulletin
|
2002-04-22
It is recommended to replace the Engine Spark Plug yearly, or after 100 hours of use.
Service Bulletin
|
2002-04-22
It is recommended to change the Engine Oil yearly, or after after 50 hours of use.
