TECHNICAL SPECIFICATIONS
DOCUMENTS
Product Specifications and Attributes
Color Color Red Max PSI Max PSI 3000 PSI
Drive Type Drive Type Direct Nozzle Count Nozzle Count 5
Frame Orientation Frame Orientation Vertical Nozzle Orifice Size Nozzle Orifice Size 3
Frame Type Frame Type Cart Nozzle Type Nozzle Type Quick Connect
Gun Inlet Gun Inlet 0 in QC Plug Power Source Power Source Gasoline
Gun Outlet Gun Outlet 22 mm 14 F Pressure Washer Type Pressure Washer Type Cold Water
Hose Diameter Hose Diameter 0 in Pump Orientation Pump Orientation Horizontal
Hose Inlet Hose Inlet 0 in QC Plug Pump Shaft Diameter Pump Shaft Diameter 1 in
Hose Length Hose Length 50 ft Shaft Type Shaft Type Hollow Shaft
Hose Material Hose Material Rubber Wand Inlet Wand Inlet 22 mm 14 M
Hose Outlet Hose Outlet 0 in QC Socket Wand Length Wand Length 20 in
Max GPM Max GPM 3 GPM

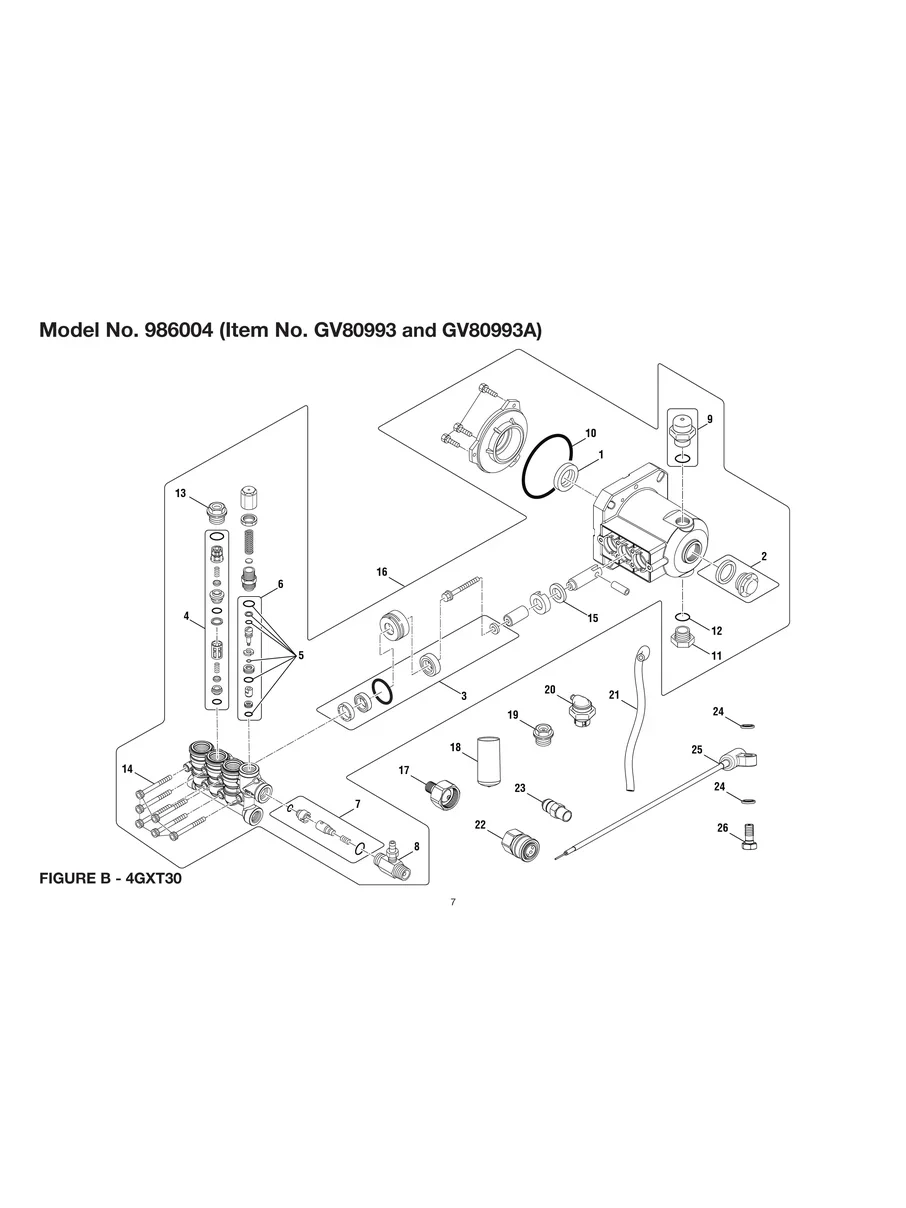

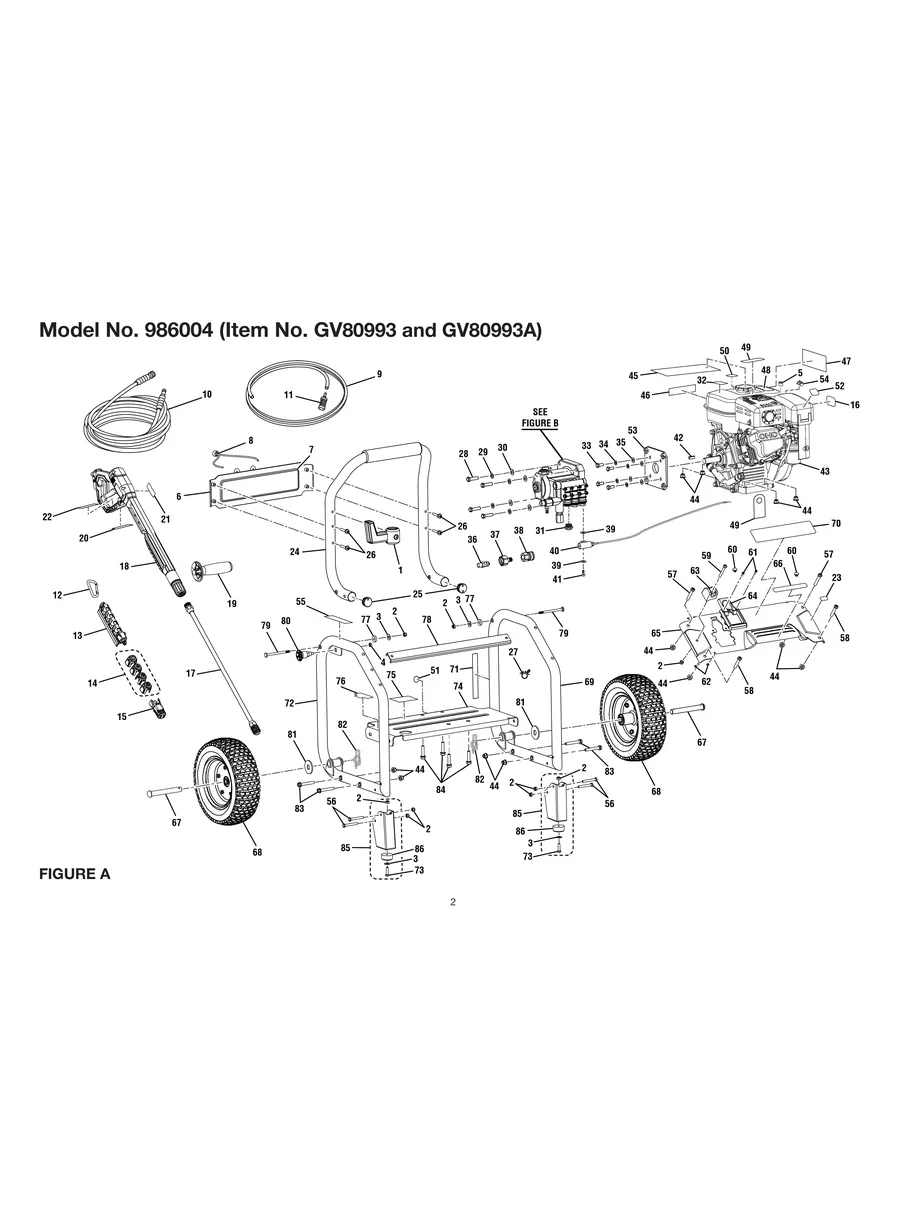

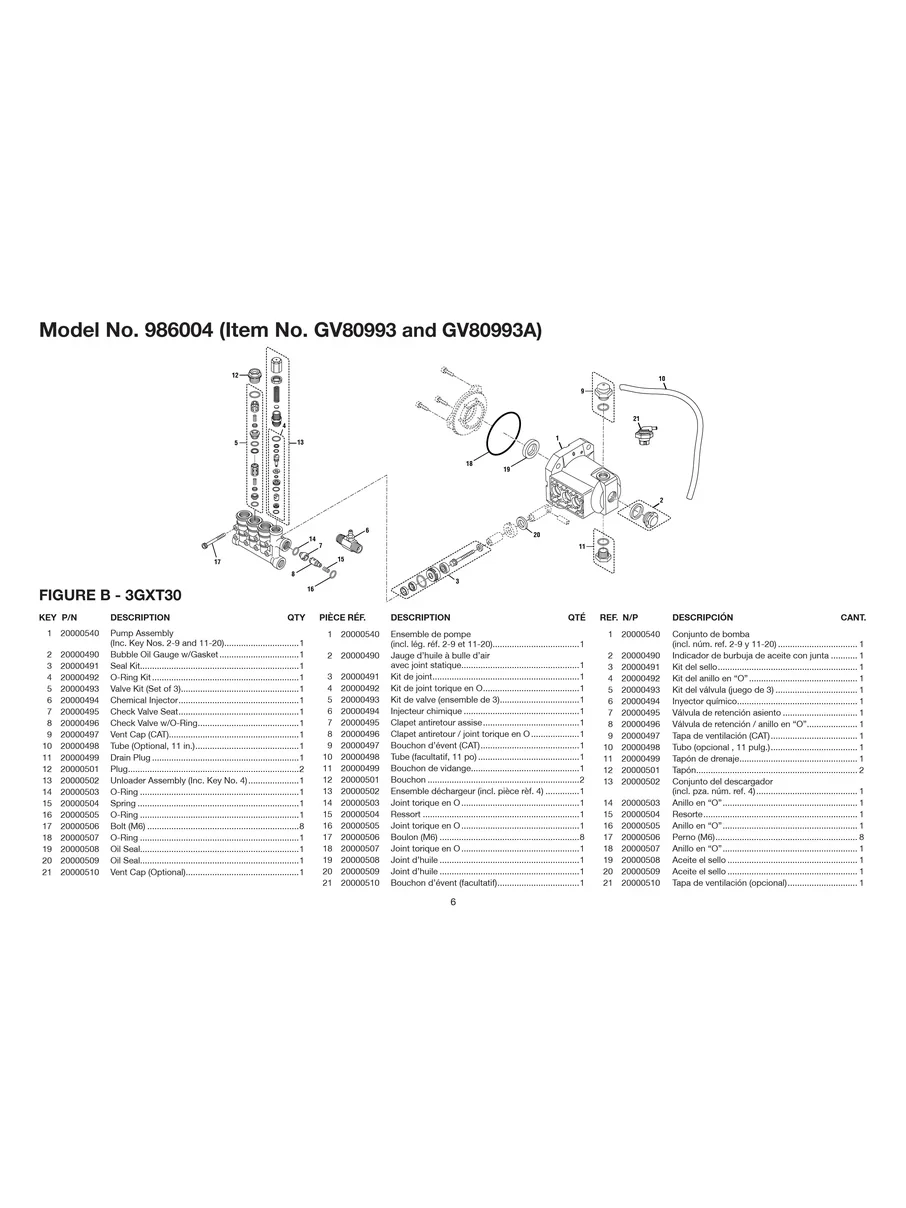

Illustrated Parts List
