TECHNICAL SPECIFICATIONS
DOCUMENTS
Product Specifications and Attributes
Color Color Yellow Hose Outlet Hose Outlet 22 mm 14 F
Direction Direction Forward Facing Max GPM Max GPM 2 GPM
Drive Type Drive Type Direct Max PSI Max PSI 2000 PSI
Frame Orientation Frame Orientation Vertical Nozzle Count Nozzle Count 5
Frame Type Frame Type Cart Nozzle Orifice Size Nozzle Orifice Size 4
Gun Inlet Gun Inlet 22 mm 14 M Nozzle Type Nozzle Type Quick Connect
Gun Outlet Gun Outlet 22 mm 14 F Power Source Power Source Gasoline
Hose Diameter Hose Diameter 0" Pressure Washer Type Pressure Washer Type Cold Water
Hose Inlet Hose Inlet 22 mm 14 F Pump Orientation Pump Orientation Vertical
Hose Length Hose Length 25' Wand Inlet Wand Inlet 22 mm 14 M
Hose Material Hose Material Thermoplastic Wand Length Wand Length 20"

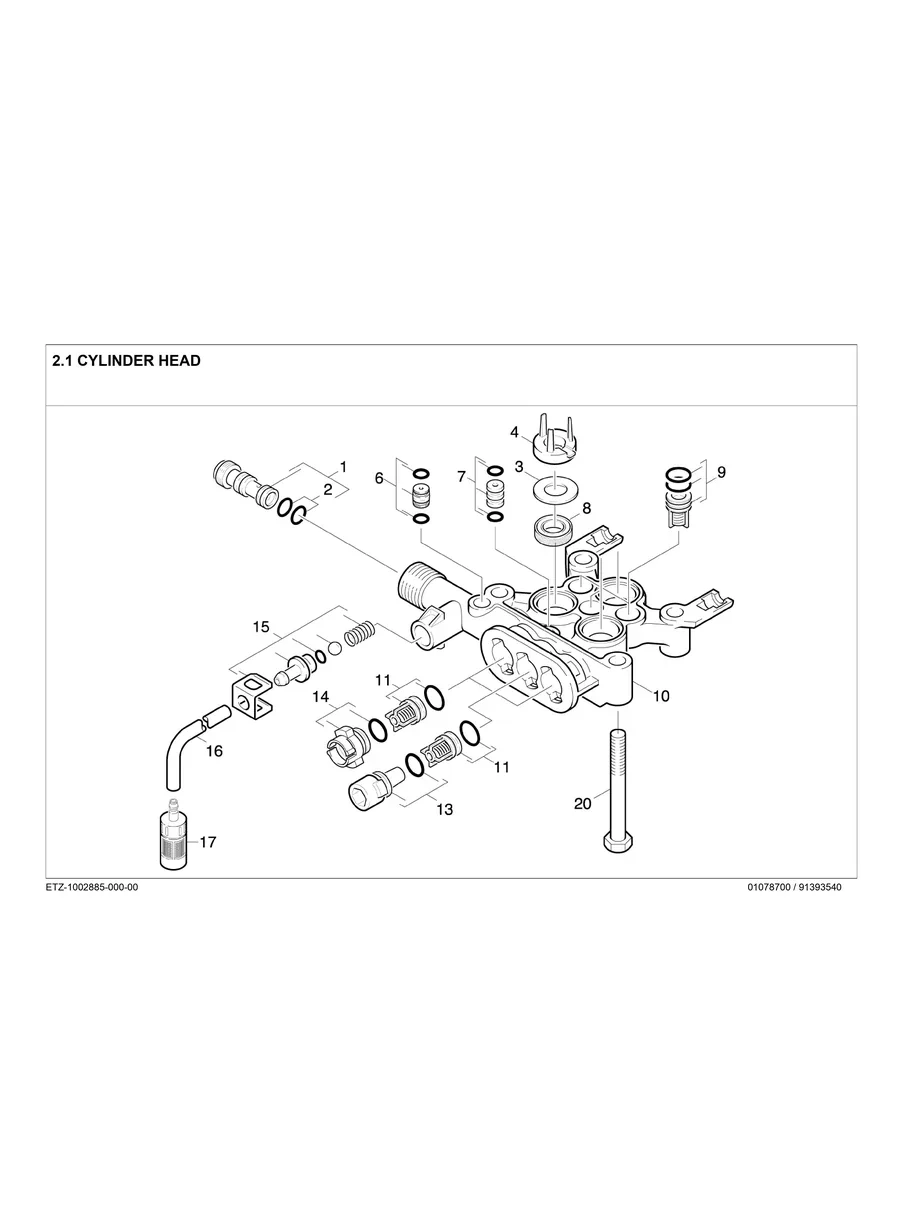

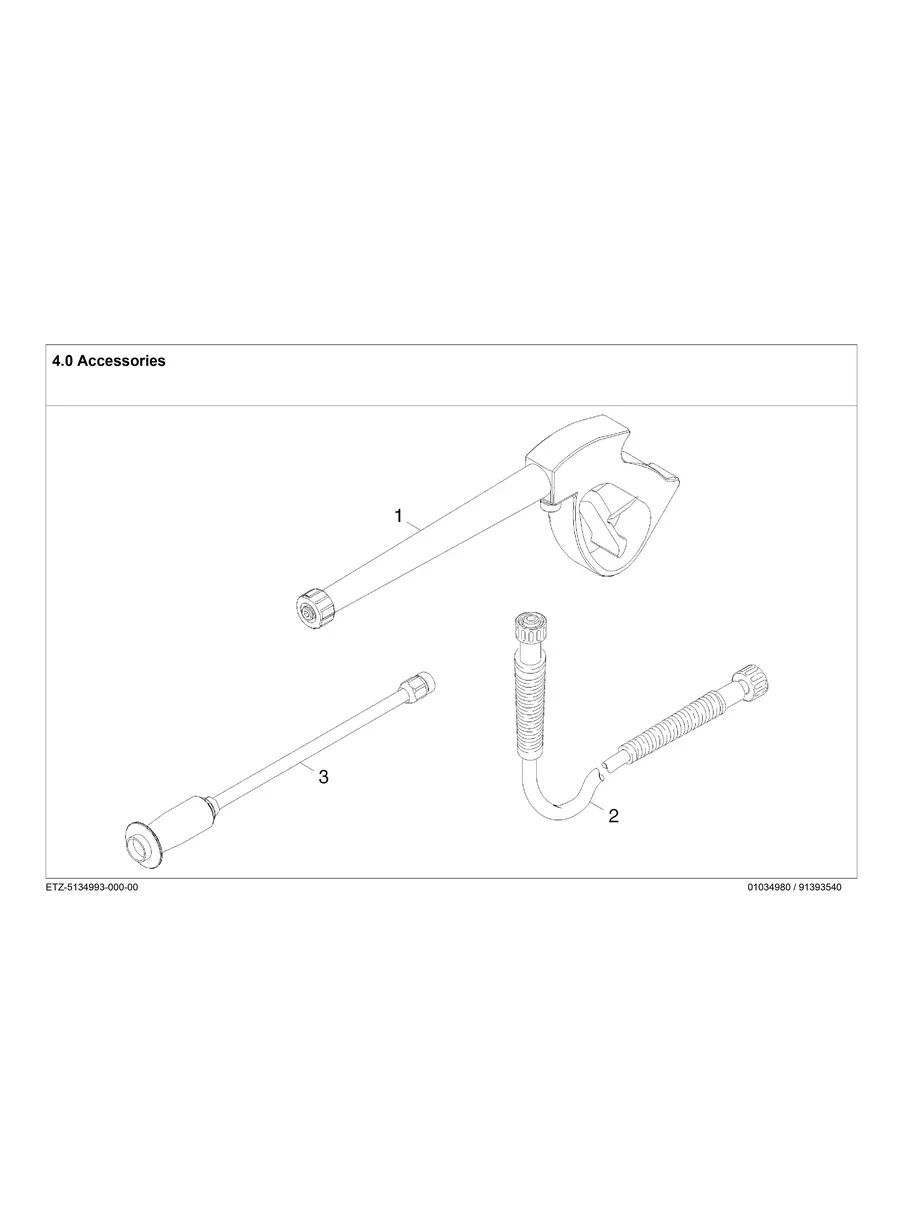

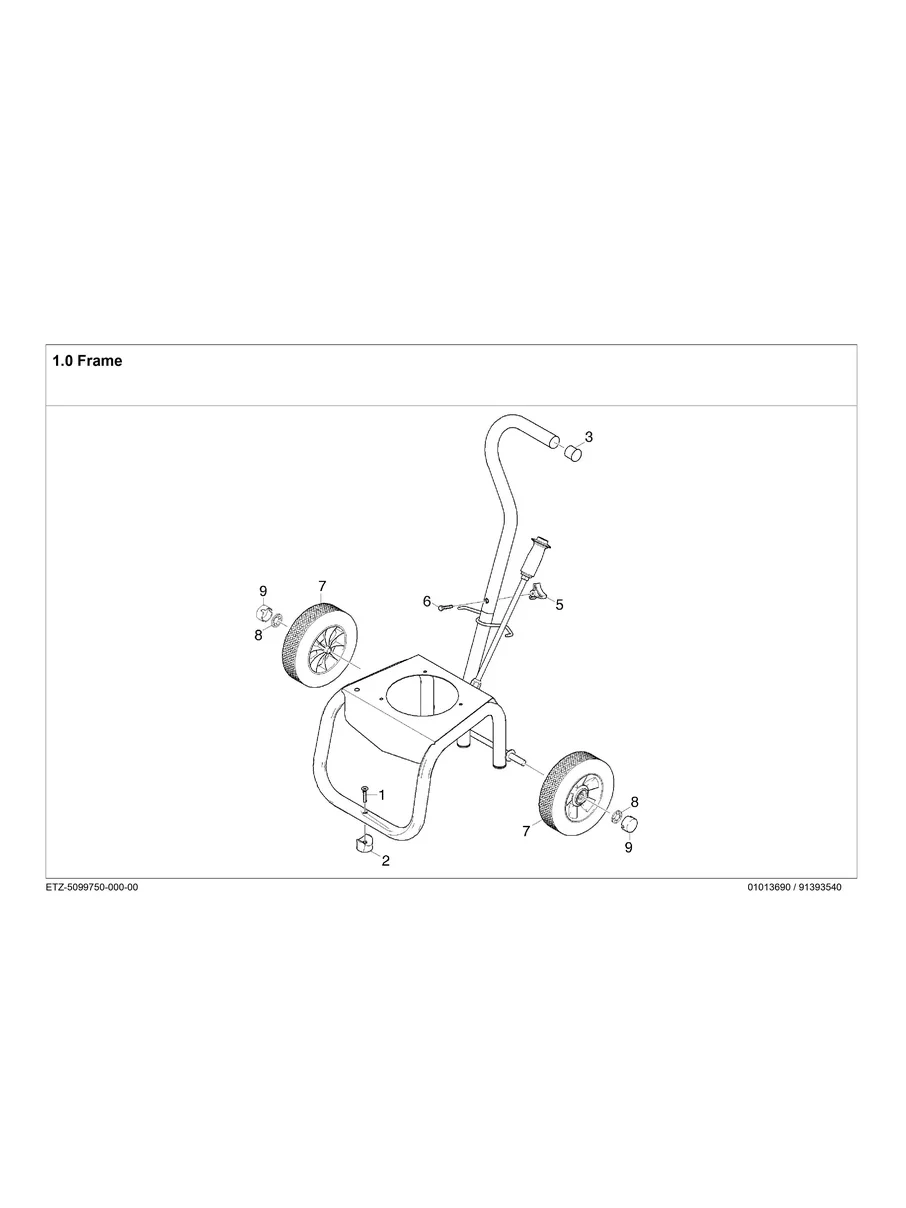

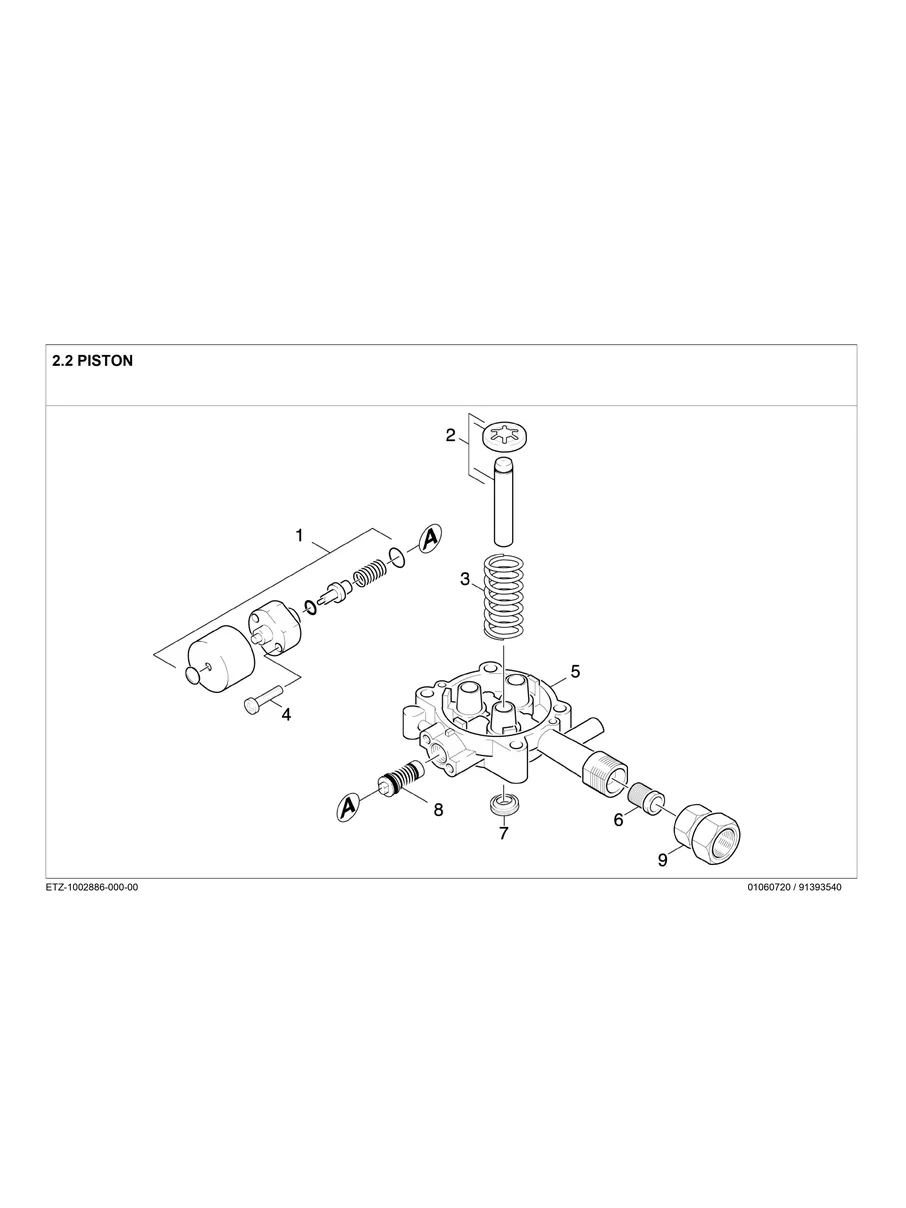

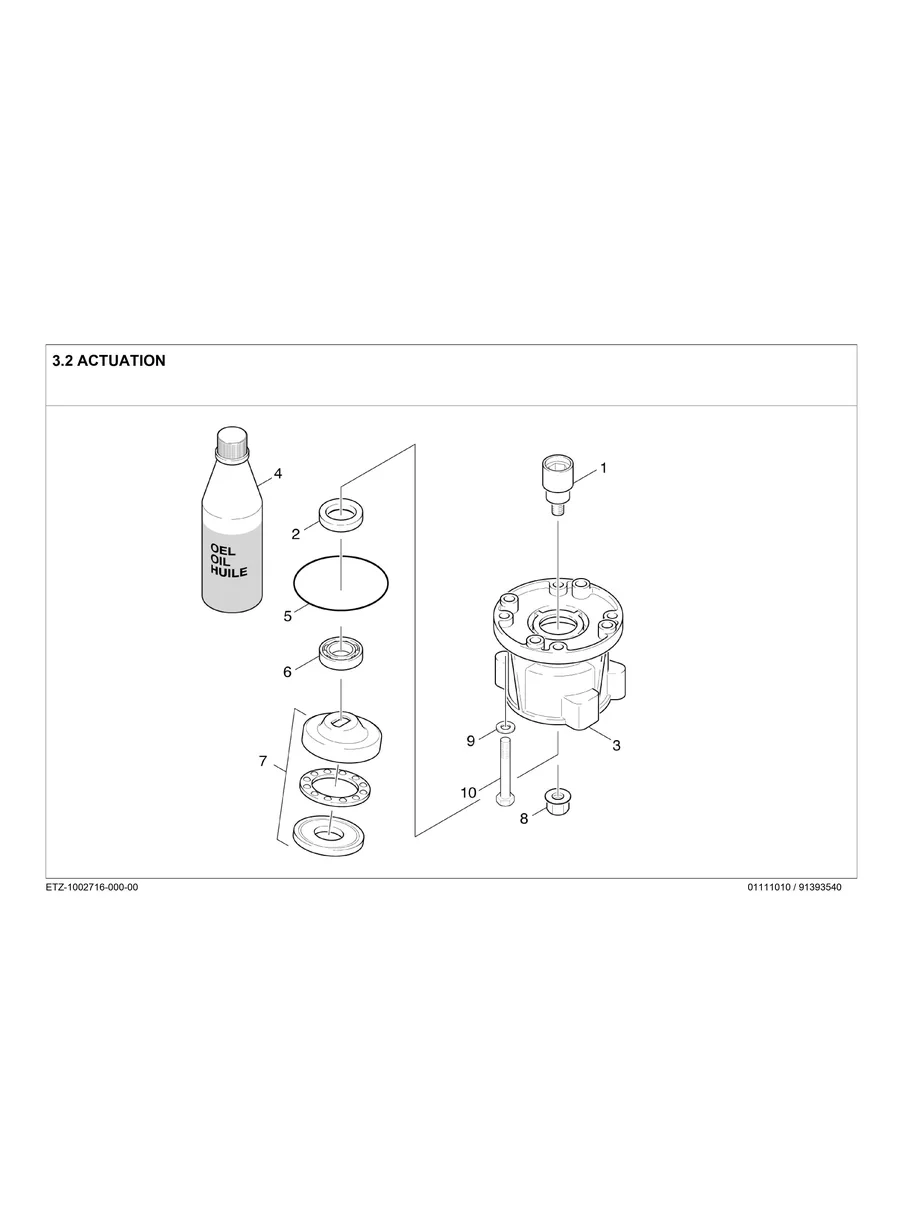

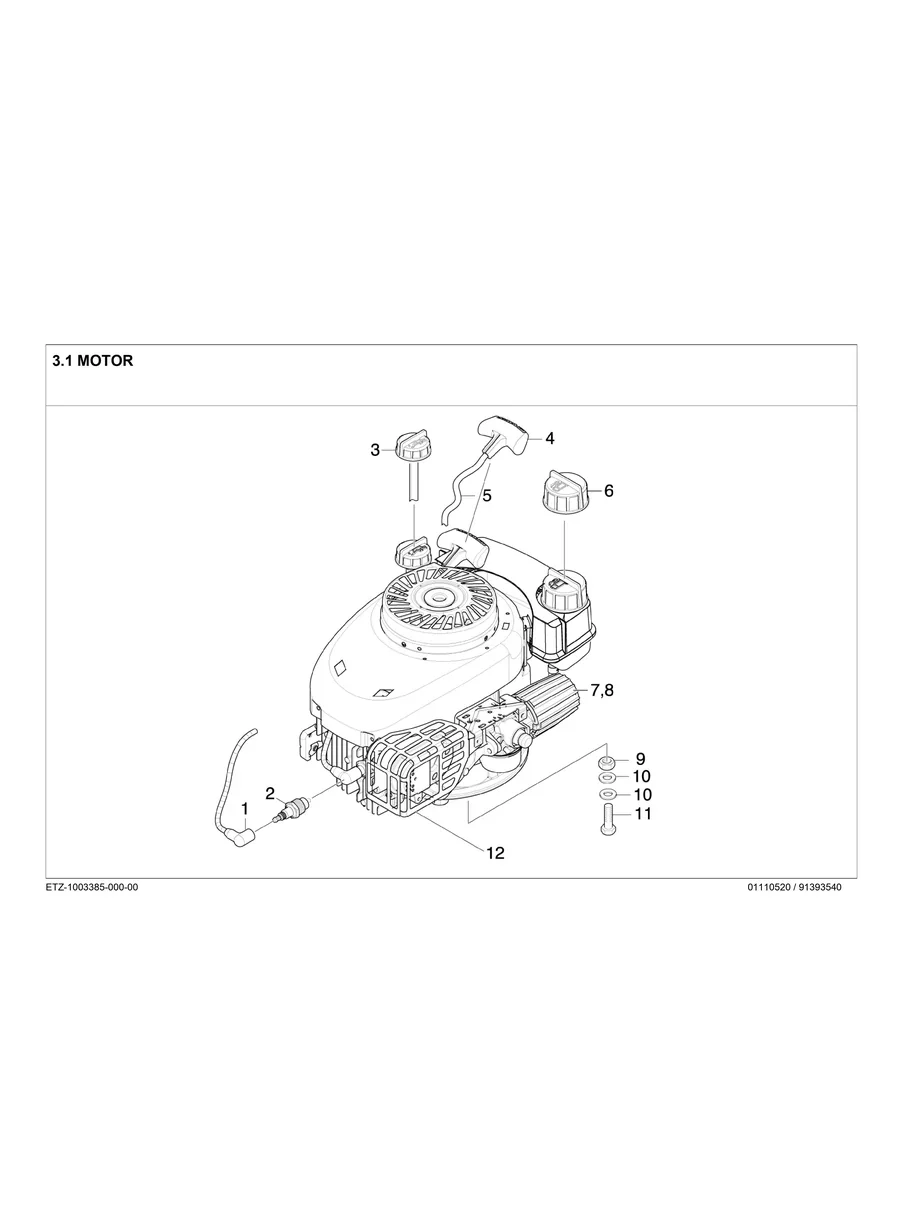

Illustrated Parts List

Owners Manual
