KARCHER, HD3000MTD
Pressure Washer Parts

Parts by Model » KARCHER » HD3000MTD

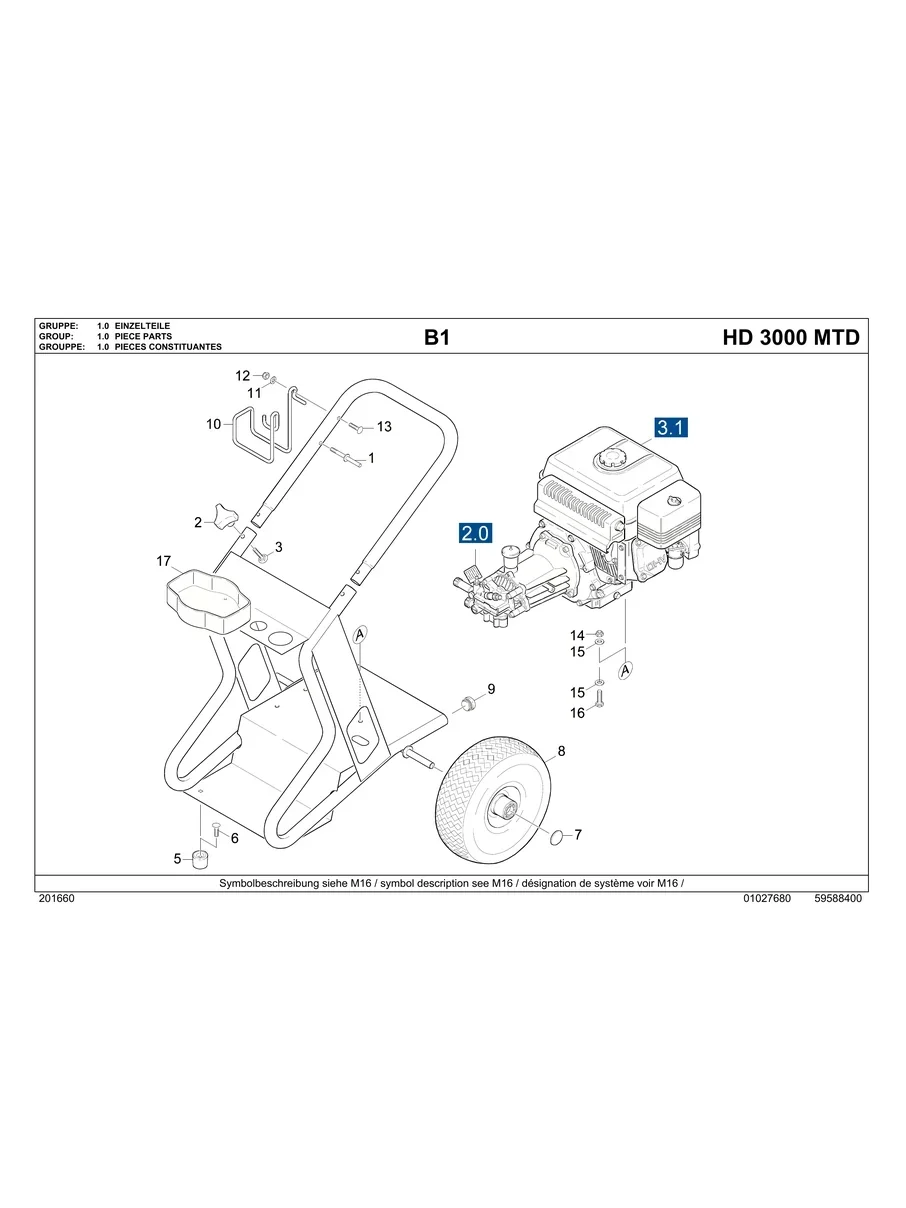

KARCHER, HD3000MTD, IPL.3

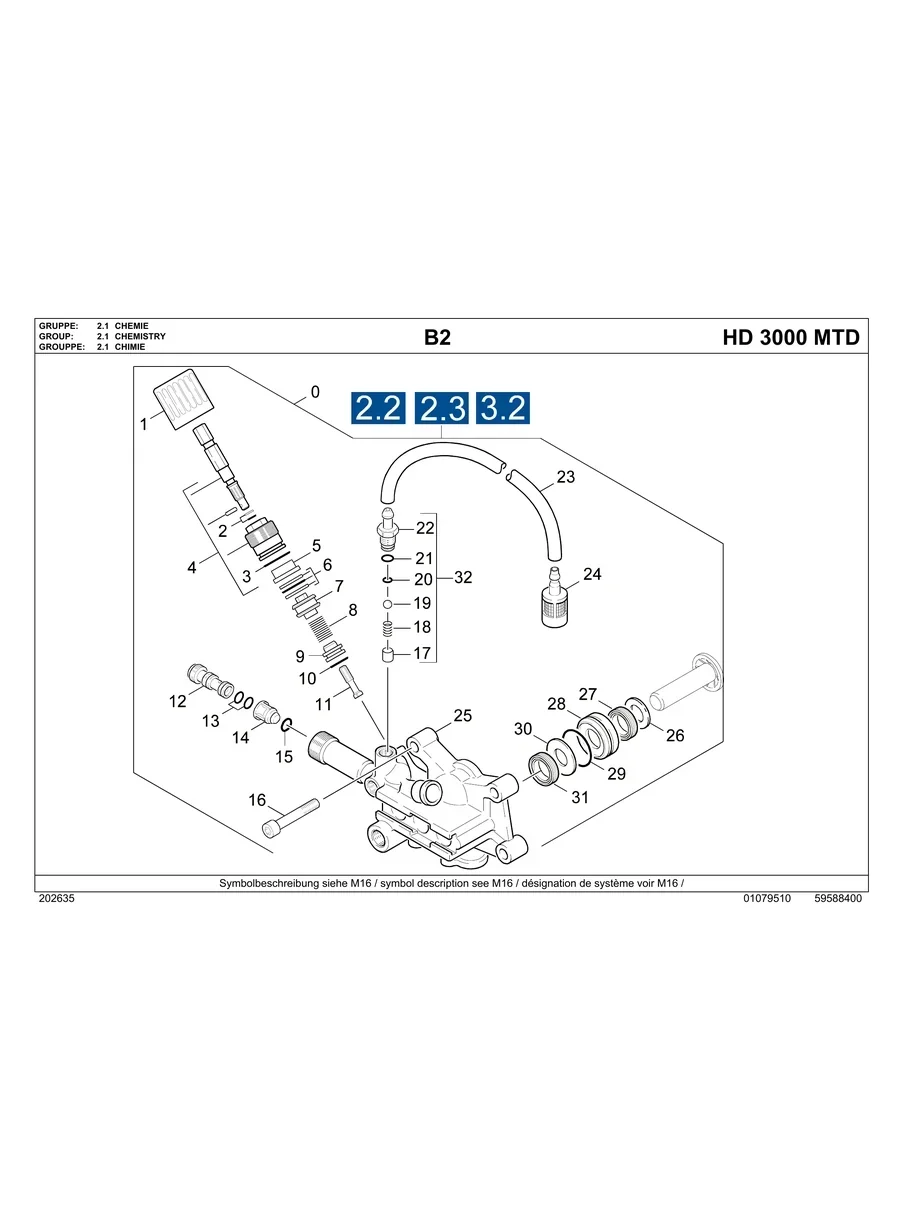

KARCHER, HD3000MTD, IPL.6

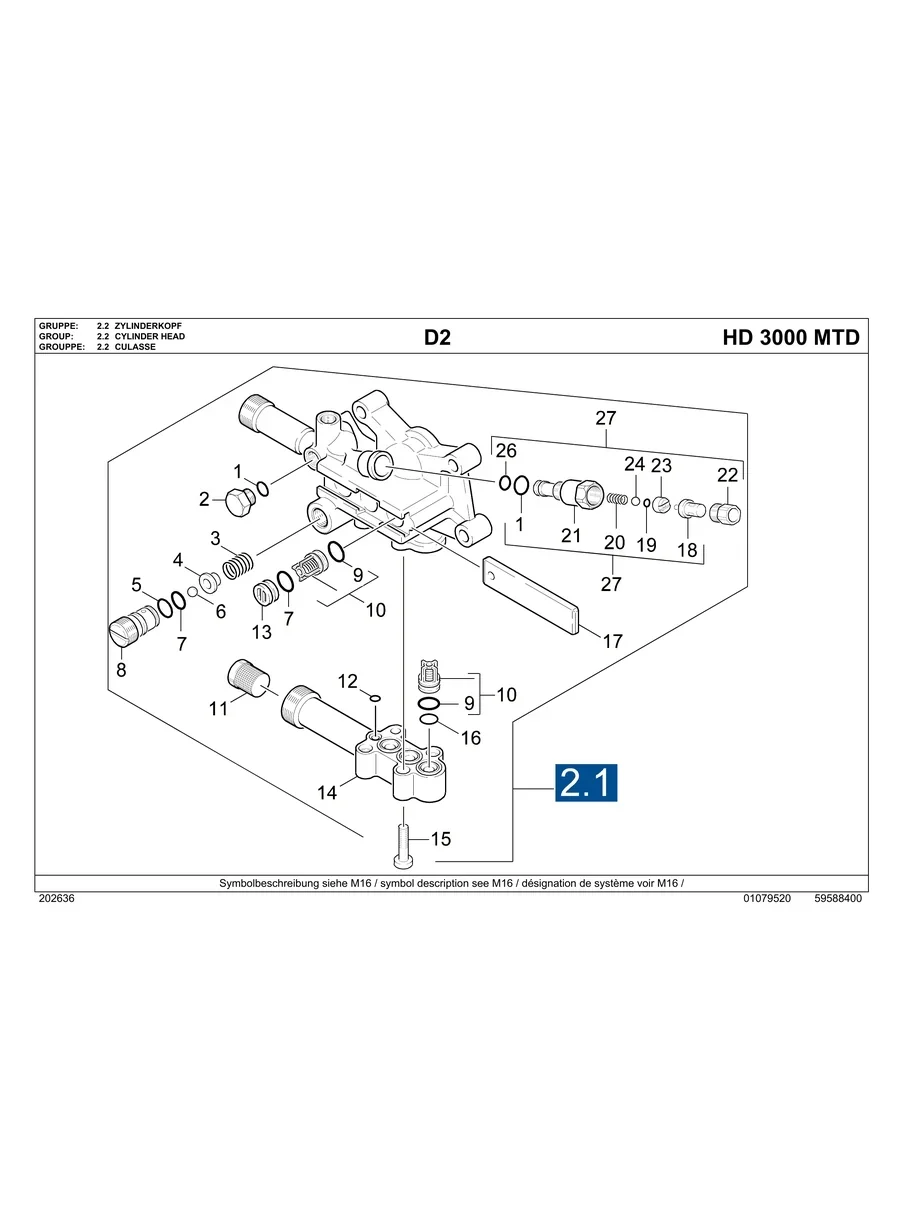

KARCHER, HD3000MTD, IPL.8

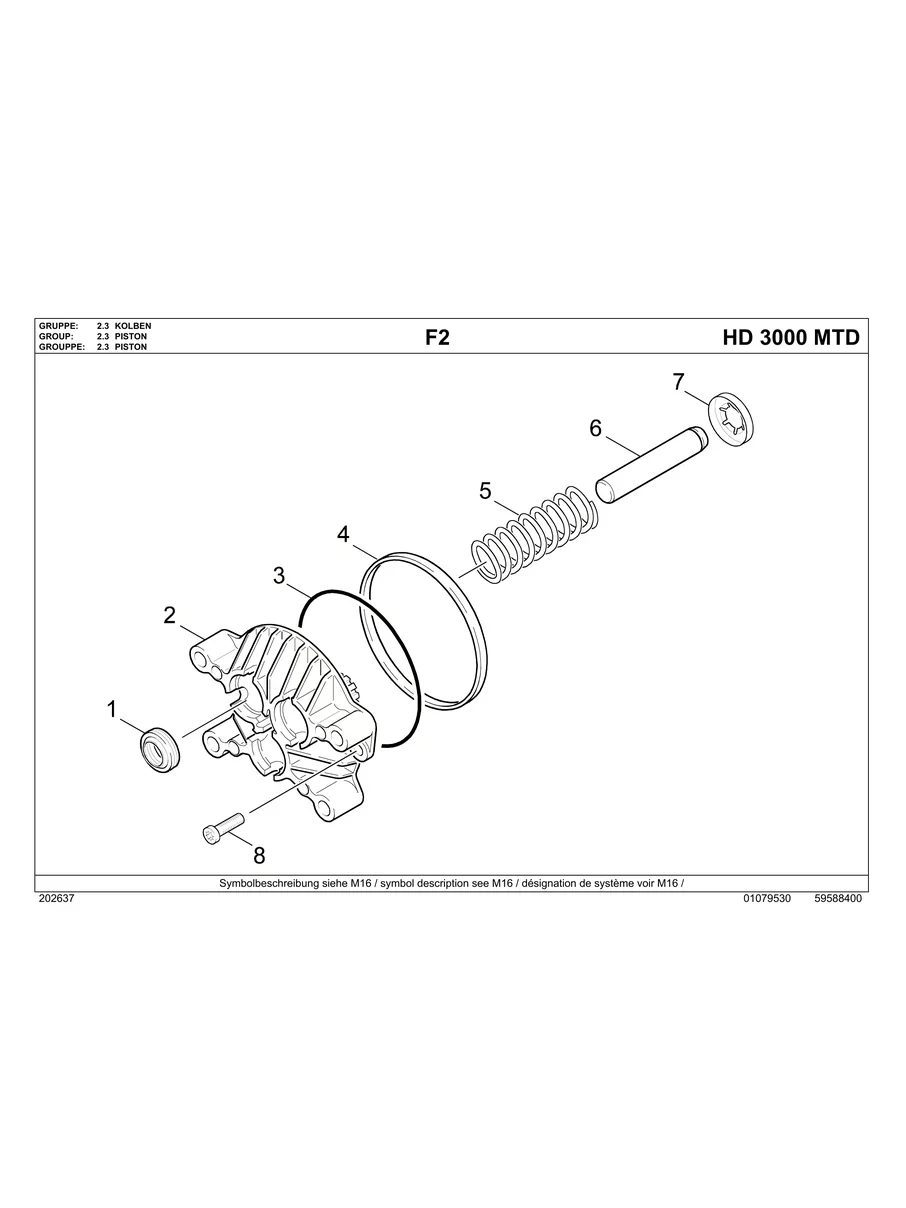

KARCHER, HD3000MTD, IPL.10

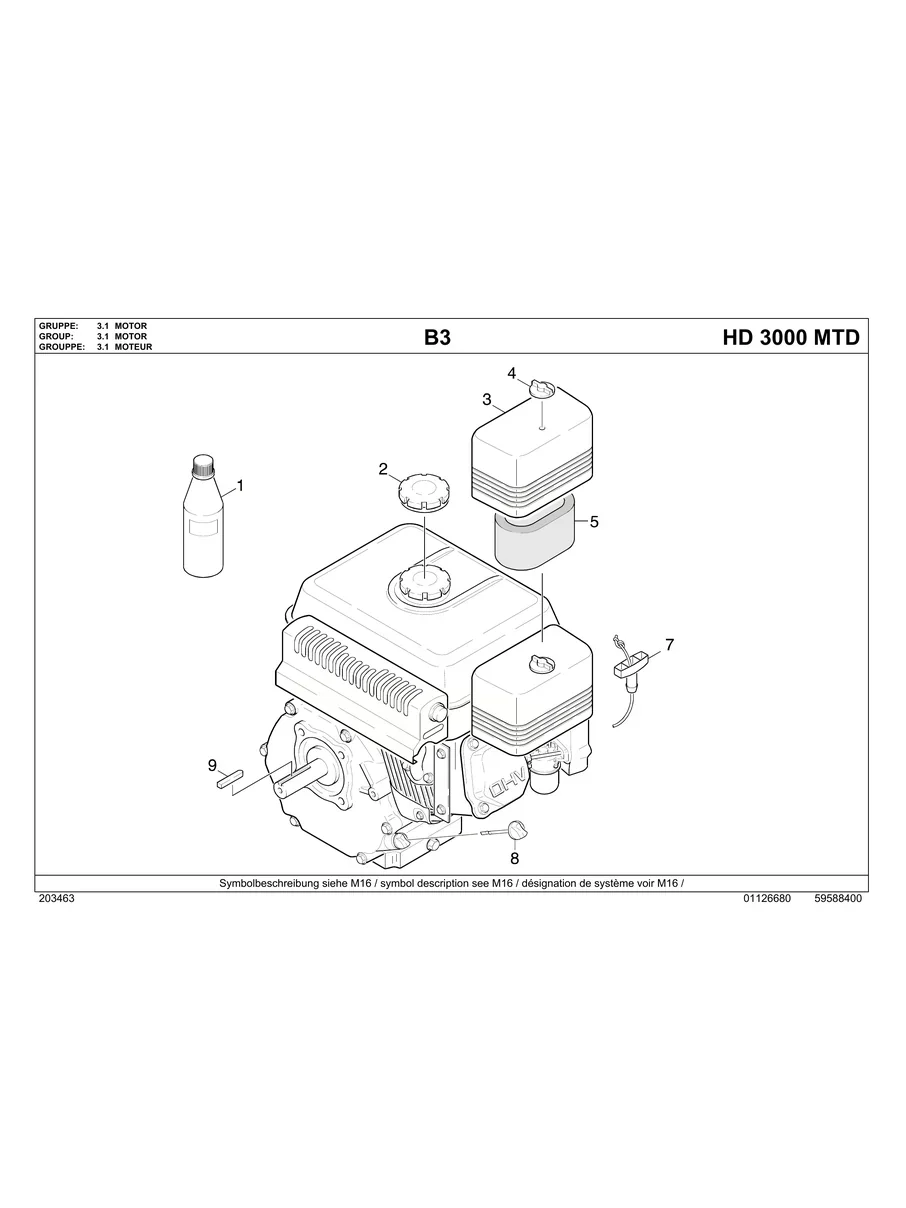

KARCHER, HD3000MTD, IPL.13

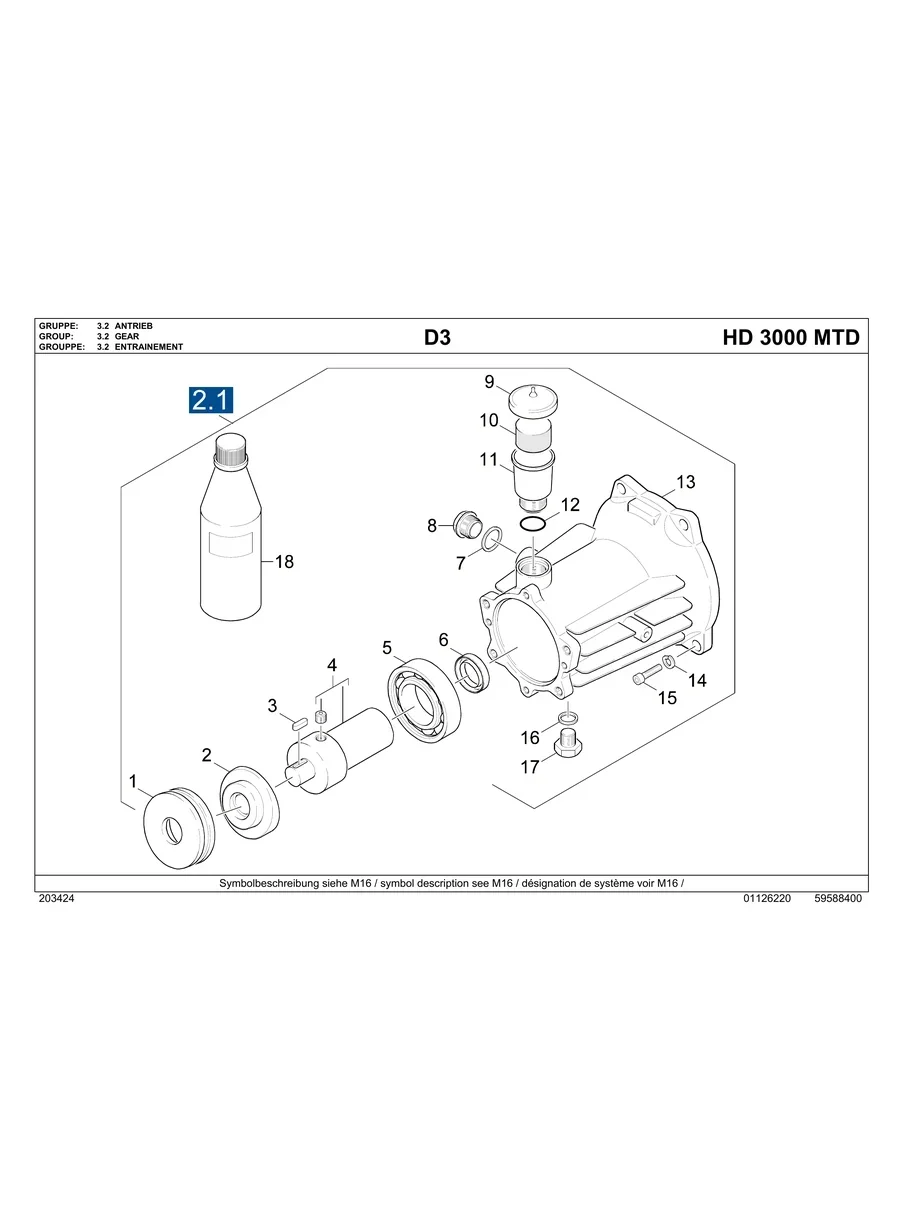

KARCHER, HD3000MTD, IPL.15

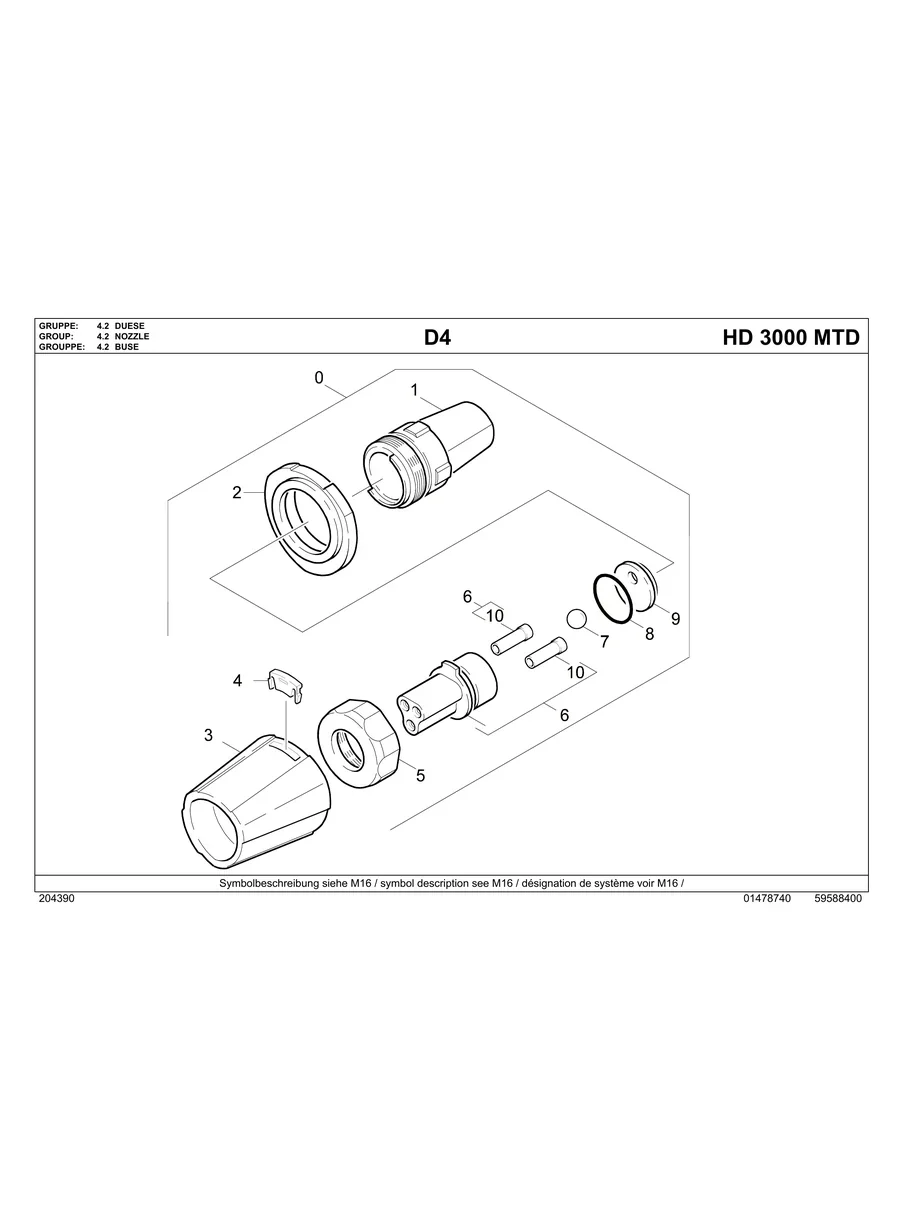

KARCHER, HD3000MTD, IPL.20

REPAIR PARTS

Karcher Black Plastic Plug 9.183-001.0

9.183-001.0

$3.15
Cap, Black Plastic, 5/8" Fastener - Karcher 9.182-506.0

9.182-506.0

$9.45
5/16-18 x 1/2 Carriage Bolt 9.196-308.0 Karcher

9.196-308.0

$3.10
Rubber Dampener 5/16"-18F, 9.183-405.0

9.183-405.0

$6.30
COVER QUSTY GREY

5.063-651.0

$10.45
Karcher Screw Plug 5.411-062.0

5.411-062.0

$7.95
Karcher Pump Oil, 1L 15W-40

6.288-050.0

$20.42
O-Ring Seal 22.3 x 2.4 NBR 70 Karcher 6.362-168.0

6.362-168.0

$6.25
Rotary Shaft Seal Ring A26x37x7 Karcher 7.367-018.0

7.367-018.0

$19.95

REPAIR PARTS

Karcher Pump Repair Kit 2.884-216.0

2.884-216.0

$198.45
Karcher 2.883-862.0 Detergent Injector

2.883-862.0

$51.40
Grooved Ring 14x22x5.3 Karcher 6.365-432.0

6.365-432.0

$26.20
5.115-859.0 Washer

5.115-859.0

$5.20
O-RING Seal 24.0 X 1.5 6.362-376.0

6.362-376.0

$3.14
Karcher Compact Seal 6.365-438.0

6.365-438.0

$30.45
Karcher Washer 5.115-744.0

5.115-744.0

$13.65
Karcher 4.862-032.0 Chemial Hose & Filter

4.862-032.0

$12.95
HOSE

6.388-216.0

$12.95
Nipple Chemistry Karcher 5.443-448.0

5.443-448.0

$12.60
7.401-909.0 Ball, 7.0

7.401-909.0

$9.00
Karcher 4.0 x 2.0 Gasket 6.362-851.0

6.362-851.0

$6.25
5.584-091.0 Karcher Valve Pin

5.584-091.0

$4.95
Karcher O-Ring, 9.0 X 1.5MM NBR 70 6.362-384.0

6.362-384.0

$2.05
Karcher 6.362-169.0 O-RING Seal 12.0 x 2.0

6.362-169.0

$6.25
6.362-454.0 O-RING Seal Kit 2ST.-R

6.362-454.0

$6.95
GASKET 18.0 X 2.0

6.362-989.0

$5.20
Karcher O-Ring Seal Complete 1ST.-R 6.362-468.0

6.362-468.0

$9.40
HANDLE

5.321-307.0

$12.60

REPAIR PARTS

Thermovalve Assembly 4.580-358.0

4.580-358.0

$72.45
7.401-009.0 Sphere 4.762

7.401-009.0

$6.25
Helical Spring 5.332-233.0 Karcher

5.332-233.0

$2.05
O-Ring, 4.47 X 1.78MM Karcher 6.362-853.0

6.362-853.0

$6.25
6.413-067.0 Thermovalve - Karcher

6.413-067.0

$30.45
Karcher O-Ring Seal 14.0 X 1.5 NBR 70, 6.362-533.0

6.362-533.0

$9.95
Karcher 5.132-100.0 Drain Plug

5.132-100.0

$10.45
Karcher 6.362-472.0 O-ring Seal 6 X 1 NBR 70

6.362-472.0

$5.20
Karcher Pump Inlet Stainer 6.414-252.0

6.414-252.0

$12.60
Pressure Check Valve 4.580-371.0 Karcher

4.580-371.0

$26.20
7.401-909.0 Ball, 7.0

7.401-909.0

$9.00
Karcher 6.362-169.0 O-RING Seal 12.0 x 2.0

6.362-169.0

$6.25
O-ring Seal 8 X 2 Karcher 6.362-101.0

6.362-101.0

$6.25

REPAIR PARTS

Karcher O-ring Seal 92X2 Nbr 70 6.363-067.0

6.363-067.0

$4.73
Karcher Thrust Guidance 5.060-677.0

5.060-677.0

$34.65

No OEM replacement parts found

No OEM replacement parts found

No OEM replacement parts found

DOCUMENTS

Illustrated Parts List

KARCHER, HD3000MTD, IPL
