MI-T-M, CW-2504-1MVB
Pressure Washer Parts

Parts by Model » MI-T-M » CW-2504-1MVB

MI-T-M, CW-2504-1MVB, IPL.4

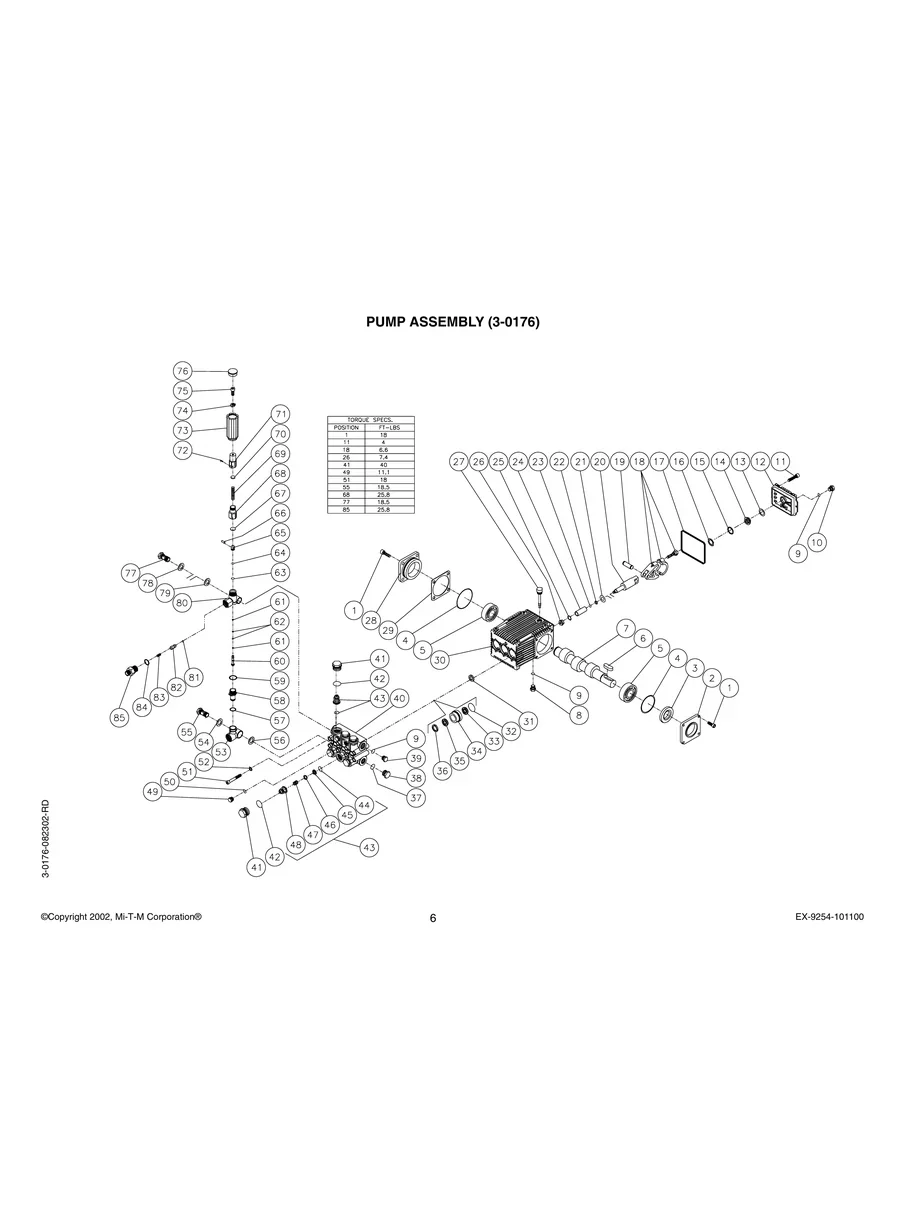

MI-T-M, CW-2504-1MVB, IPL.6

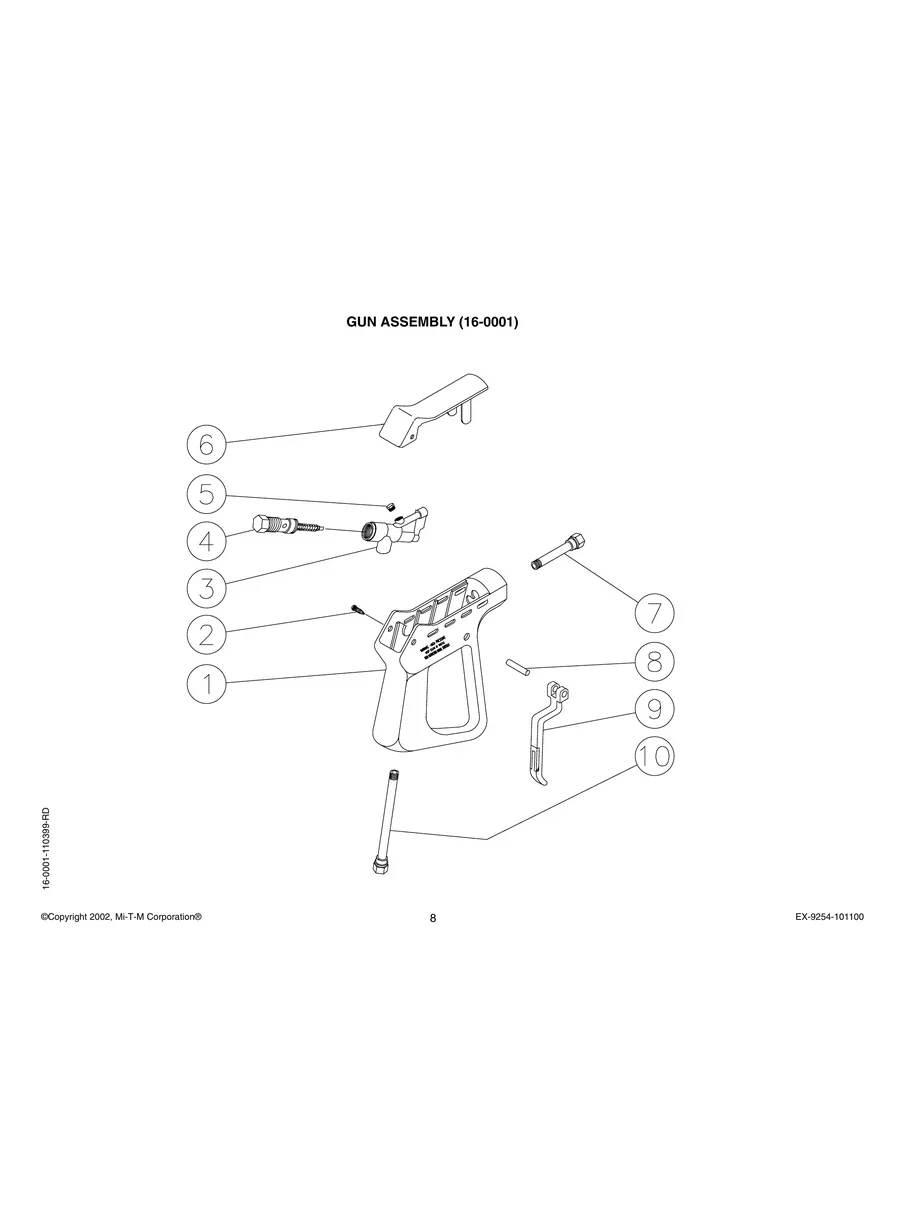

MI-T-M, CW-2504-1MVB, IPL.8

REPAIR PARTS

WHEEL

14-0006

$61.95
ISOLATER

14-0008

$7.95
HEX NYLON LOCKNUT - ZINC 5/16-18

30-0157

$2.05
O-RING KIT

25-0122

$14.65
MITM 17-0001 Quick Coupling

17-0001

$10.45
Mi-T-M 16-0001 High Pressure Replacement Trigger Gun

16-0001

$51.45
Mi-T-M 17-0005 Quick Connect Plug 3/8" MNPT

17-0005

$11.55
MI-T-M 50', 3/8" Black Hose, R1 w/ QC 15-0003

15-0003

$135.45
3/8" FEMALE NIPPLE, SS

17-0006

$11.00
851-0007 Mi-T-M 50' Pressure Hose Assembly w/ QCs

851-0007

$145.95
CLEAR INLET FILTER - NO PORT

19-0206

$37.80
3/8" O-RING

25-0123

$1.94
Mi-T-M 17-0004 Quick Connect Coupler 3/8" Brass

17-0004

$9.95
1/2" Brass Thermal Valve - 145F by MiTM

22-0005

$22.05
MITM Belt Drive Pump Assembly, 4 GPM

3-0176

$612.15
4.5 SPRAY TIPS, 5-PACK

18-0039

$35.00
Rubber Grommet 33-0001 for MiTM Pressure Washers

33-0001

$1.50
FASTENER 1/4 TURN SLOTTED STUD

33-0197

$6.04
BUSHING H 1 MOTOR

9-0005

$18.95

REPAIR PARTS

Kit, Oil Seal 70-0321 MI-T-M

70-0321

$69.00
MiTM 18MM Piston Kit 70-0352

70-0352

$198.45
70-0180 Unloader Repair Kit-MI-T-M

70-0180

$57.70
8-0456 Unloader Valve, Gymatic 3/B, 1/2" - MITM

8-0456

$155.40
Mi-T-M Check Valve Kit Replacement for CW Series

70-0319

$71.40
SUPPORT RINGS

70-0178

$36.70
70-0177 Pressure Seal Kit 18MM

70-0177

$135.45
Replacement Unloader Spring, MITM 49-0123

49-0123

$8.99
8-0454 Shutter Valve for MITM Pumps

8-0454

$32.00
Washer with Seal Ring 8-0450 - MITM

8-0450

$10.45
Unloader Washer W/ Seal Ring 15x2.1mm for MiTM

8-0449

$7.30
Pin, Unloader - MITM 8-0444

8-0444

$3.10
MiTM 4.47 X 1.78MM O-Ring - 25-0371

25-0371

$2.00
MITM 8-0439 Washer for Pumps - 19 x 2.5mm

8-0439

$10.45
Unloader Washer W/ Seal, 19 x 2.5mm - MiTM

8-0440

$10.45
8-0437 Inlet Adapter for Mi-T-M Unloaders

8-0437

$72.45
25-0387 O-ring 10.82 x 1.78mm - MITM

25-0387

$1.95
39-0096 Plug for MITM Pump Head

39-0096

$7.05
MiTM 25-0386 O-Ring 15.54 X 2.62MM

25-0386

$1.95
25-0160 - Pump Oring - MITM

25-0160

$1.95
MITM 39-0088 1/2" Plug for Pump

39-0088

$20.95
MIITM Oil Dipstick, 39-0090

39-0090

$12.59
MITM Washer / Gasket 26-0191

26-0191

$1.95
MiTM 46-0701 Ceramic Piston for Pumps

46-0701

$93.45
Back-Up Ring 25-0404 for MiTM Pumps

25-0404

$1.24
MITM Pump Slinger Washer 46-0700

46-0700

$2.10
46-0670 Sight Glass - MiTM

46-0670

$19.95
MiTM - 25-0370 Sight Glass O-Ring

25-0370

$2.10
O-RING, 14 X 1.78MM

25-0325

$4.15
39-0102 BrassPump Plug, 3/8"G - MITM

39-0102

$13.60

No OEM replacement parts found

DOCUMENTS

Illustrated Parts List

MI-T-M, CW-2504-1MVB, IPL
