MI-T-M, CW-2504-CMV4
Pressure Washer Parts

Parts by Model » MI-T-M » CW-2504-CMV4

MI-T-M, CW-2504-CMV4, IPL.2

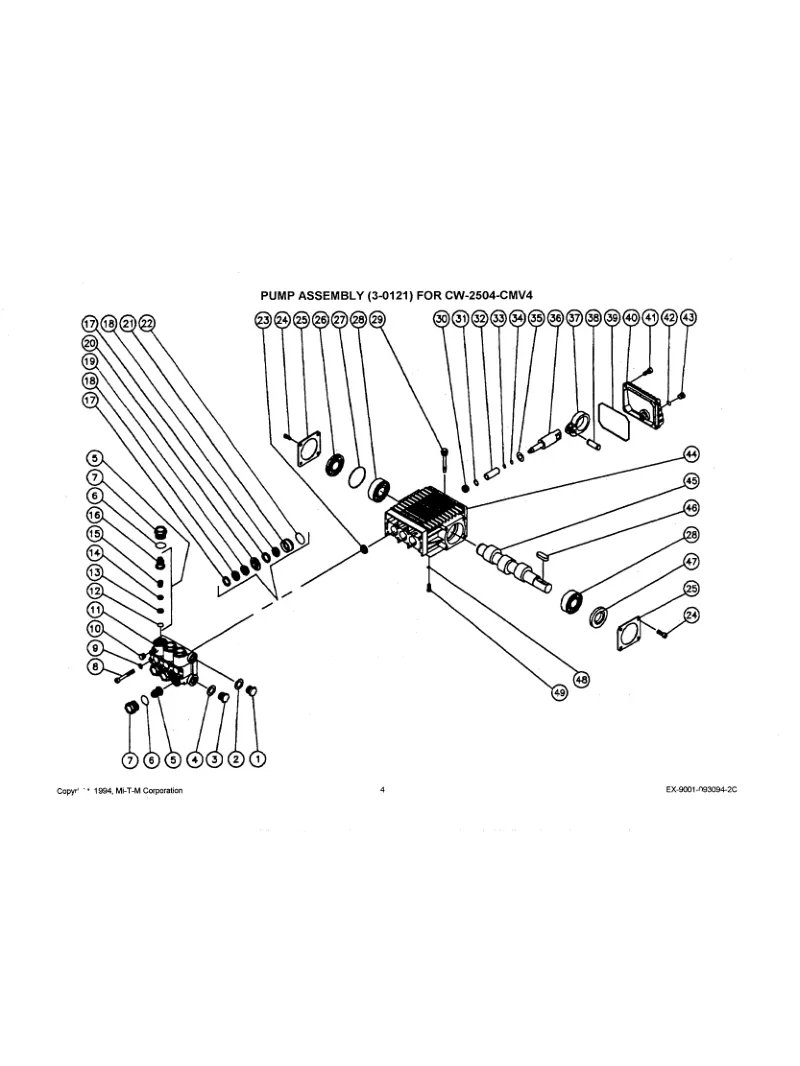

MI-T-M, CW-2504-CMV4, IPL.4

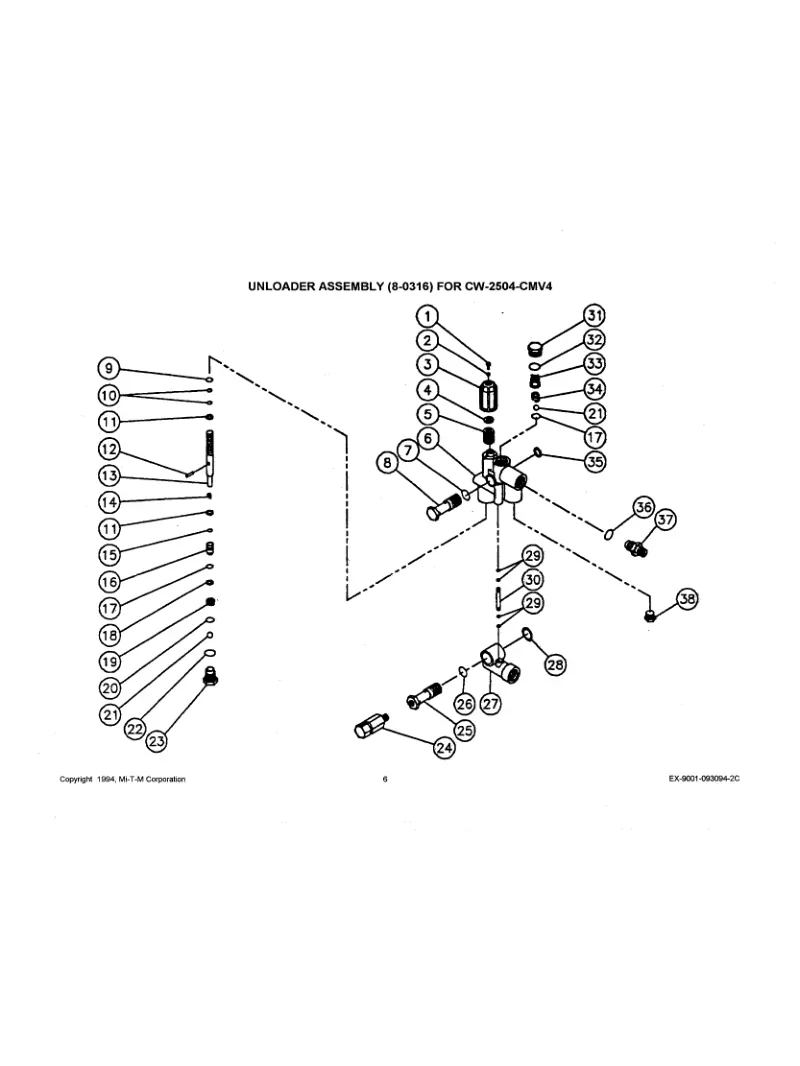

MI-T-M, CW-2504-CMV4, IPL.6

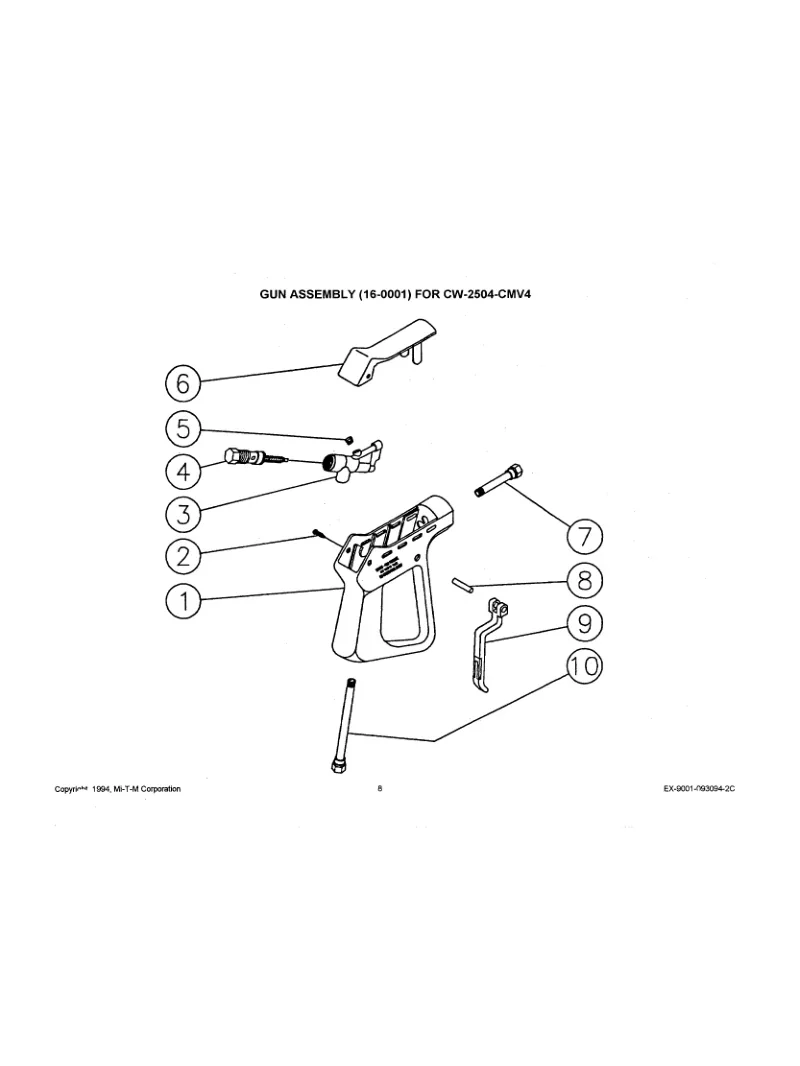

MI-T-M, CW-2504-CMV4, IPL.8

REPAIR PARTS

O-RING KIT

25-0122

$14.65
MITM 17-0001 Quick Coupling

17-0001

$10.45
Mi-T-M 16-0001 High Pressure Replacement Trigger Gun

16-0001

$51.45
Mi-T-M 17-0005 Quick Connect Plug 3/8" MNPT

17-0005

$11.55
3/8" FEMALE NIPPLE, SS

17-0006

$11.00
MI-T-M 50', 3/8" Black Hose, R1 w/ QC 15-0003

15-0003

$135.45
851-0007 Mi-T-M 50' Pressure Hose Assembly w/ QCs

851-0007

$145.95
Mi-T-M 23-0095 Garden Hose Swivel, 1/2 Inch

23-0095

$10.45
STRAINER GASKET

26-0160

$9.95
80 Mesh Water Inlet Filter by MITM - 3/4"FPT X 3/8" Garden Hose Fitting

19-0057

$48.30
3/8" O-RING

25-0123

$1.94
Mi-T-M 17-0004 Quick Connect Coupler 3/8" Brass

17-0004

$9.95
Mi-T-M 22-0148 Thermo Valve 1/4" NPT Male 130F

22-0148

$29.00
Rubber Grommet 33-0001 for MiTM Pressure Washers

33-0001

$1.50
4.5 SPRAY TIPS, 5-PACK

18-0039

$35.00
FASTENER 1/4 TURN SLOTTED STUD

33-0197

$6.04
BUSHING H 1 MOTOR

9-0005

$18.95
WHEEL ASSEMBLY, 10" PNEUMATIC, WHITE HUB, 5/8" AXLE

14-0017

$39.00
ISOLATER

14-0008

$7.95
HEX NYLON LOCKNUT - ZINC 5/16-18

30-0157

$2.05

REPAIR PARTS

KIT 127,SHORT PACKNG ASSY

852-0114

$118.00
Replacment Valve Kit MITM 70-0028

70-0028

$93.45
46-0604 MiTM Oil Seal for CW Series Pressure Washer

46-0604

$16.00
PLUG/HEX, BRASS, 1/4"G X 9

39-0017

$9.65
Mi-T-M 25-0014 Buna-N O-Ring

25-0014

$4.19
MiTM 27-8401 | Crankcase Cover Screw - M6-1.00P X 16.0mm

27-8401

$3.95
Mi-T-M 25-0317 O-Ring 101.27 X 2.62MM

25-0317

$6.29
ANTI-EXTRUSION RING

25-0143

$2.25
25-0045 MiTM Pump O-Ring

25-0045

$2.05
PISTON 18MM

46-0603

$75.00
DIPSTICK

46-0143

$17.85
25-0060 MITM O-Ring 55.56 X 3.53MM

25-0060

$3.58
Mi-T-M 46-0574 Oil Level Indicator

46-0574

$25.15
OIL SEAL

26-0046

$27.30
VALVE CAP

39-0071

$28.82
Mi-T-M Replacement Nitrile O-Ring Seal 25-0012

25-0012

$2.05

REPAIR PARTS

Viton 25-0051 O-Ring 9/16 X 3/4 by Mi-T-M

25-0051

$6.29
25-0053 Mi-T-M 11/16 X 7/8 O-Ring

25-0053

$2.10
Mi-T-M 22-0208 Thermal Relief Valve

22-0208

$19.00
25-0160 - Pump Oring - MITM

25-0160

$1.95
MiTM 25-0159 - O-Ring 15.60 X 1.78mm

25-0159

$3.10

No OEM replacement parts found

DOCUMENTS

Illustrated Parts List

MI-T-M, CW-2504-CMV4, IPL
