TECHNICAL SPECIFICATIONS
DOCUMENTS
Product Specifications and Attributes
Drive Type Drive Type Direct Hose Outlet Hose Outlet 22 mm 14 F
Frame Orientation Frame Orientation Vertical Nozzle Count Nozzle Count 3
Frame Type Frame Type Cart Nozzle Type Nozzle Type Quick Connect
Gun Inlet Gun Inlet 22 mm 14 M Power Source Power Source Gasoline
Gun Outlet Gun Outlet 22 mm 14 F Pressure Washer Type Pressure Washer Type Cold Water
Hose Diameter Hose Diameter 0" Pump Orientation Pump Orientation Vertical
Hose Inlet Hose Inlet 22 mm 14 F Shaft Type Shaft Type Hollow Shaft
Hose Length Hose Length 25' Wand Inlet Wand Inlet 22 mm 14 M
Hose Material Hose Material Thermoplastic Wand Length Wand Length 20"

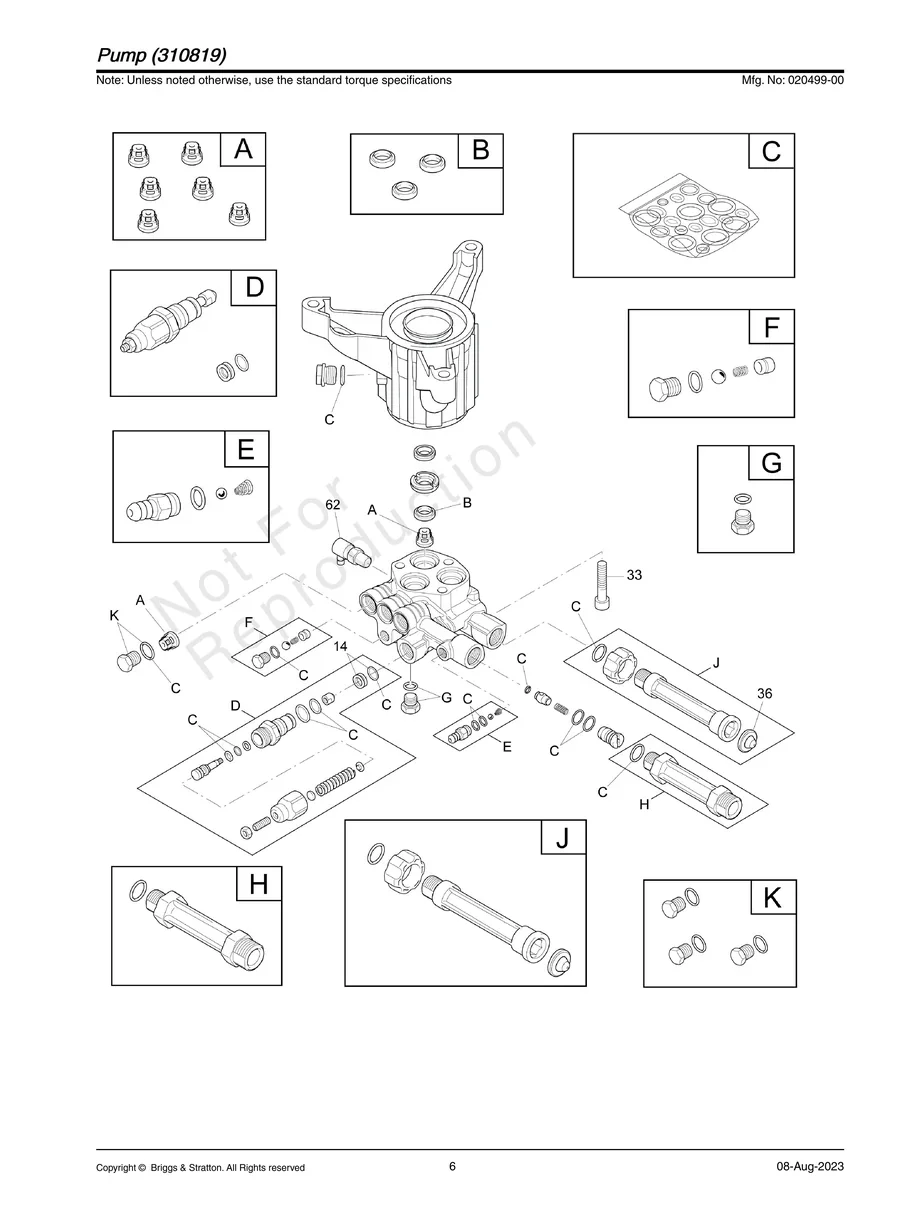

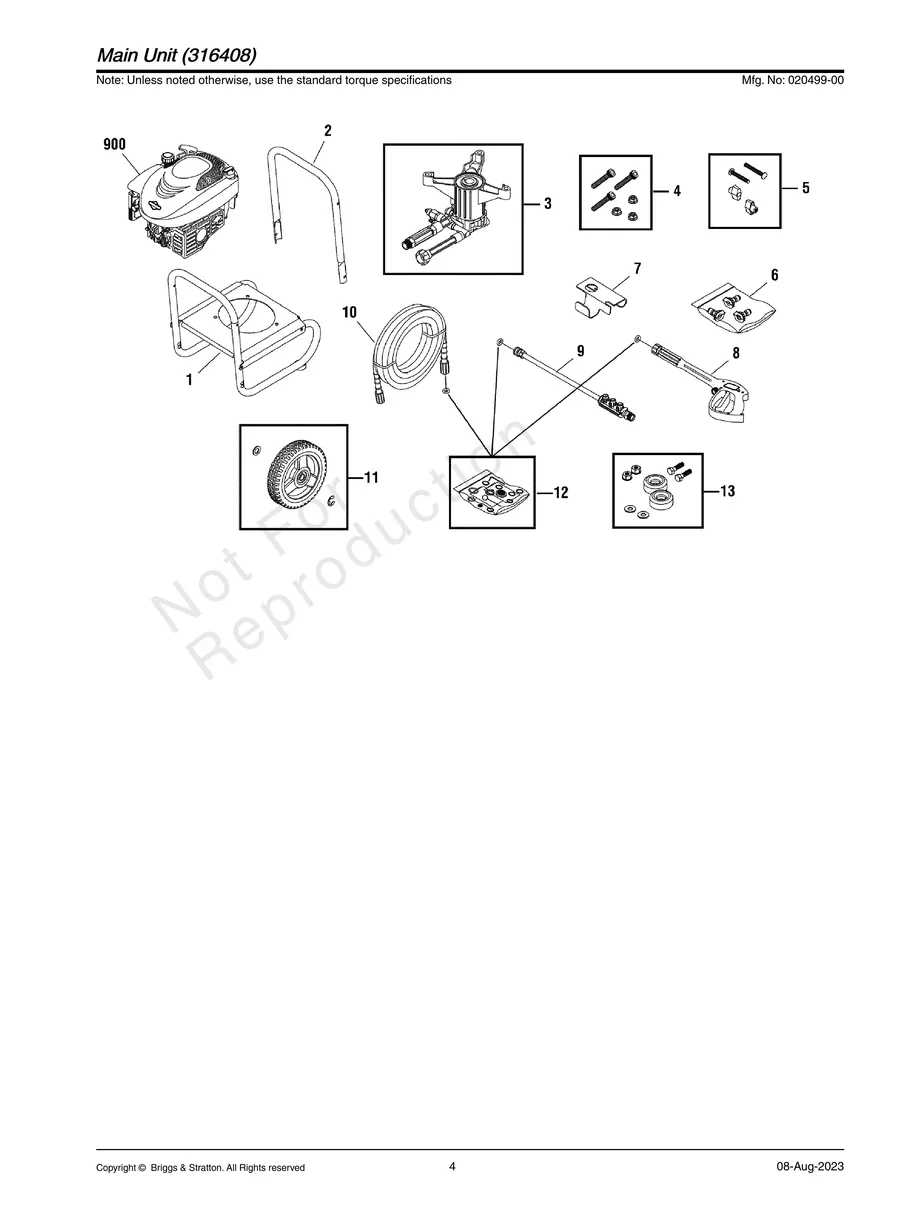

Illustrated Parts List
