TECHNICAL SPECIFICATIONS
DOCUMENTS
Product Specifications and Attributes
Direction Direction Reverse Facing Max PSI Max PSI 3100 PSI
Drive Type Drive Type Direct Nozzle Count Nozzle Count 5
Frame Orientation Frame Orientation Horizontal Nozzle Orifice Size Nozzle Orifice Size 3
Frame Type Frame Type Cart Nozzle Type Nozzle Type Quick Connect
Gun Inlet Gun Inlet 22 mm 14 M Power Source Power Source Gasoline
Gun Outlet Gun Outlet 22 mm 14 F Pressure Washer Type Pressure Washer Type Cold Water
Hose Inlet Hose Inlet 22 mm 14 F Pump Orientation Pump Orientation Vertical
Hose Length Hose Length 25' Shaft Type Shaft Type Hollow Shaft
Hose Material Hose Material Thermoplastic Wand Inlet Wand Inlet 22 mm 14 M
Hose Outlet Hose Outlet 22 mm 14 F Wand Length Wand Length 20"
Max GPM Max GPM 2 GPM

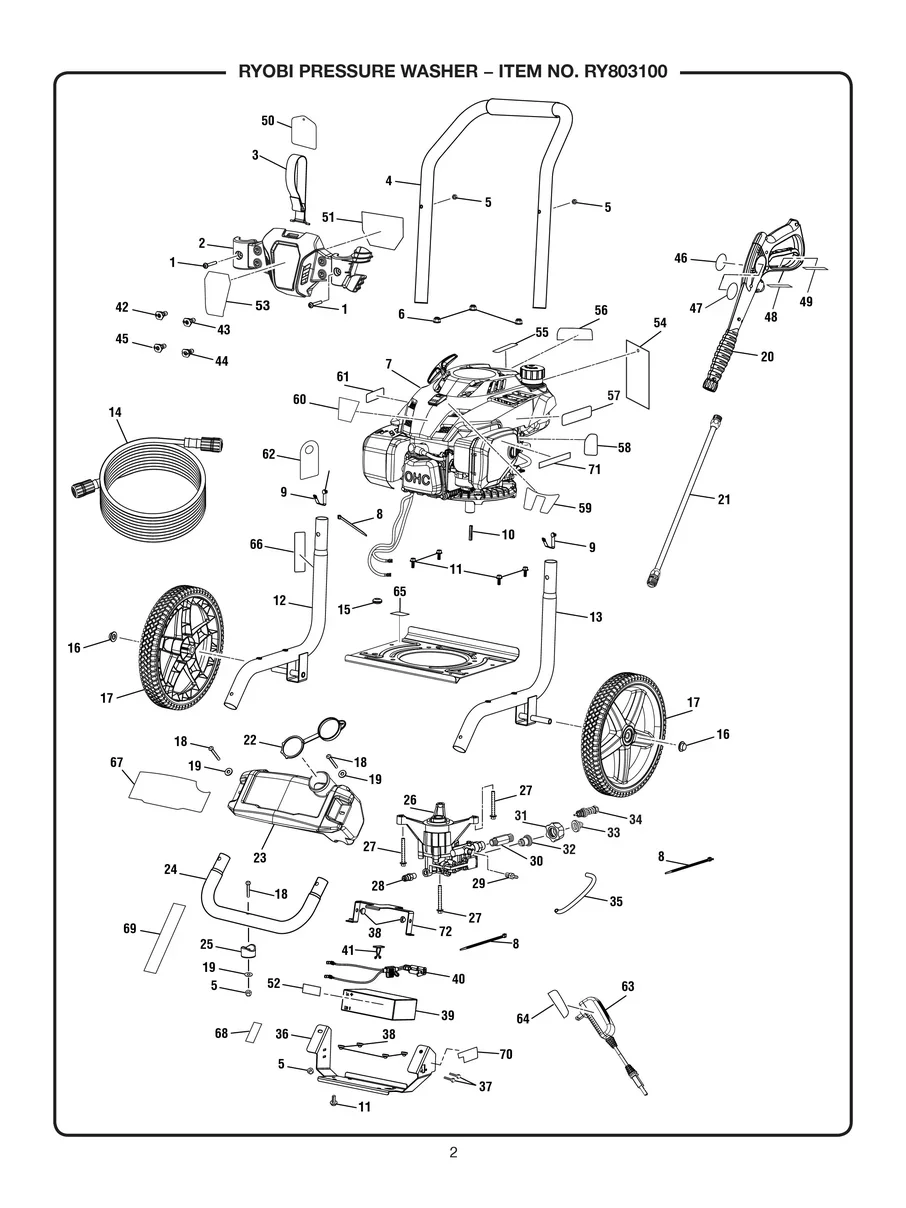

Illustrated Parts List
