TECHNICAL SPECIFICATIONS
DOCUMENTS
Product Specifications and Attributes
Color Color Black Max GPM Max GPM 3 GPM
Direction Direction Reverse Facing Max PSI Max PSI 3000 PSI
Drive Type Drive Type Direct Nozzle Orifice Size Nozzle Orifice Size 3
Frame Orientation Frame Orientation Horizontal Nozzle Type Nozzle Type Quick Connect
Frame Type Frame Type Cart Power Source Power Source Gasoline
Gun Inlet Gun Inlet 0" QC Plug Pressure Washer Type Pressure Washer Type Cold Water
Gun Outlet Gun Outlet 22 mm 14 F Pump Orientation Pump Orientation Horizontal
Hose Inlet Hose Inlet 0" QC Plug Pump Shaft Diameter Pump Shaft Diameter 1"
Hose Length Hose Length 25' Wand Inlet Wand Inlet 22 mm 14 M
Hose Material Hose Material Rubber Wand Length Wand Length 20"
Hose Outlet Hose Outlet 0" QC Socket

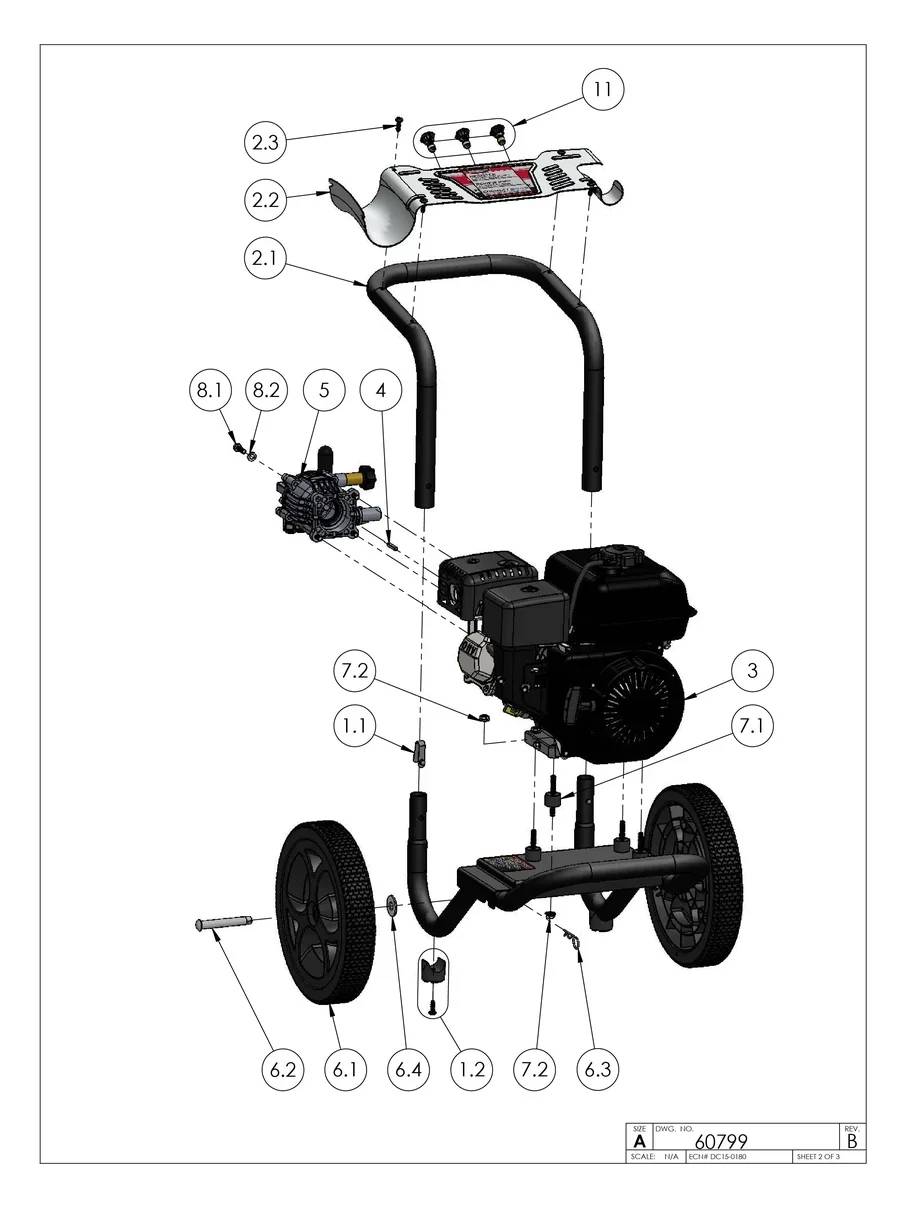

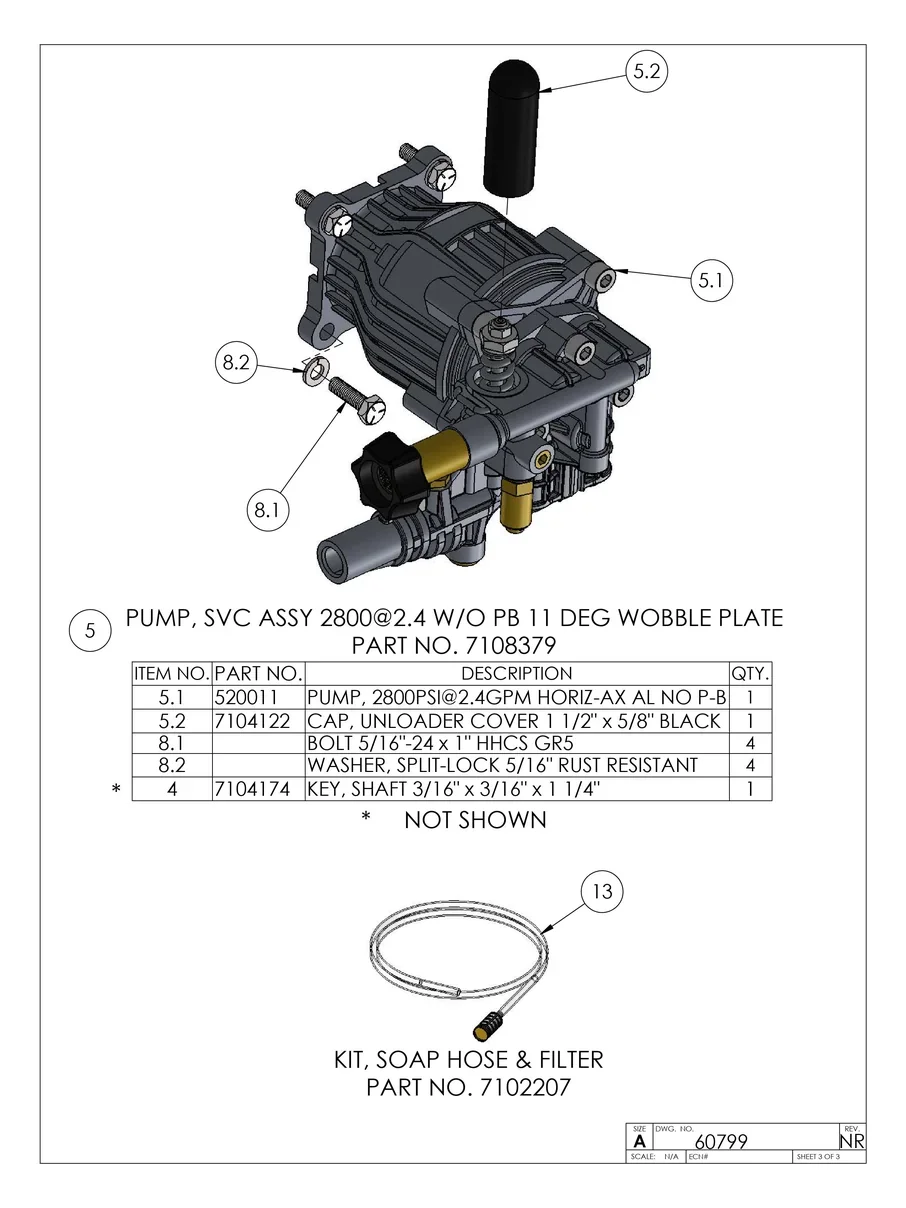

Illustrated Parts List
