TECHNICAL SPECIFICATIONS
DOCUMENTS
Product Specifications and Attributes
Drive Type Drive Type Direct Nozzle Count Nozzle Count 5
Frame Orientation Frame Orientation Vertical Nozzle Orifice Size Nozzle Orifice Size 3
Frame Type Frame Type Cart Nozzle Type Nozzle Type Quick Connect
Gun Inlet Gun Inlet 22 mm 14 M Power Source Power Source Gasoline
Gun Outlet Gun Outlet 22 mm 14 F Pressure Washer Type Pressure Washer Type Cold Water
Hose Inlet Hose Inlet 22 mm 14 F Pump Orientation Pump Orientation Vertical
Hose Length Hose Length 25' Pump Shaft Diameter Pump Shaft Diameter 1"
Hose Material Hose Material Thermoplastic Shaft Type Shaft Type Hollow Shaft
Hose Outlet Hose Outlet 22 mm 14 F Wand Inlet Wand Inlet 22 mm 14 M
Max GPM Max GPM 2 GPM Wand Length Wand Length 20"
Max PSI Max PSI 3100 PSI

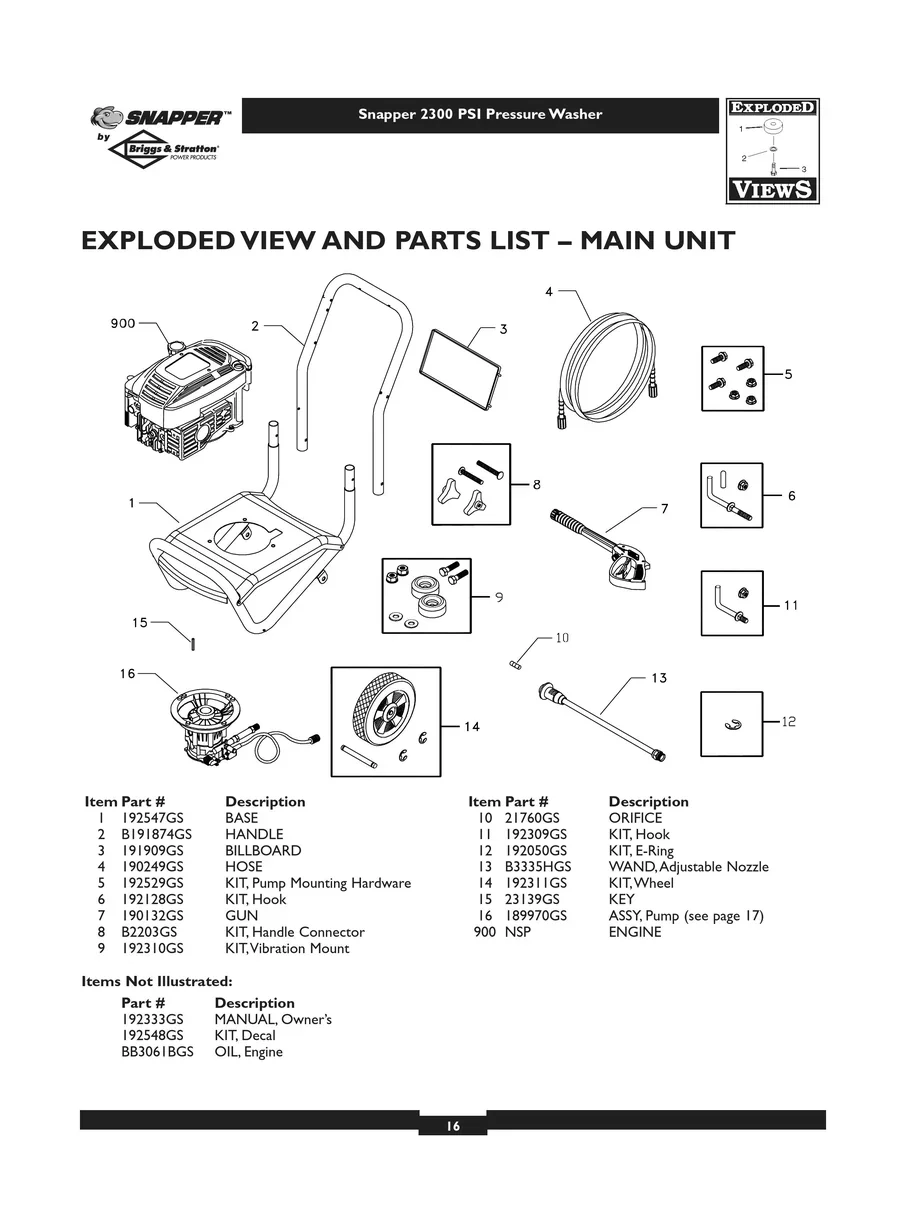

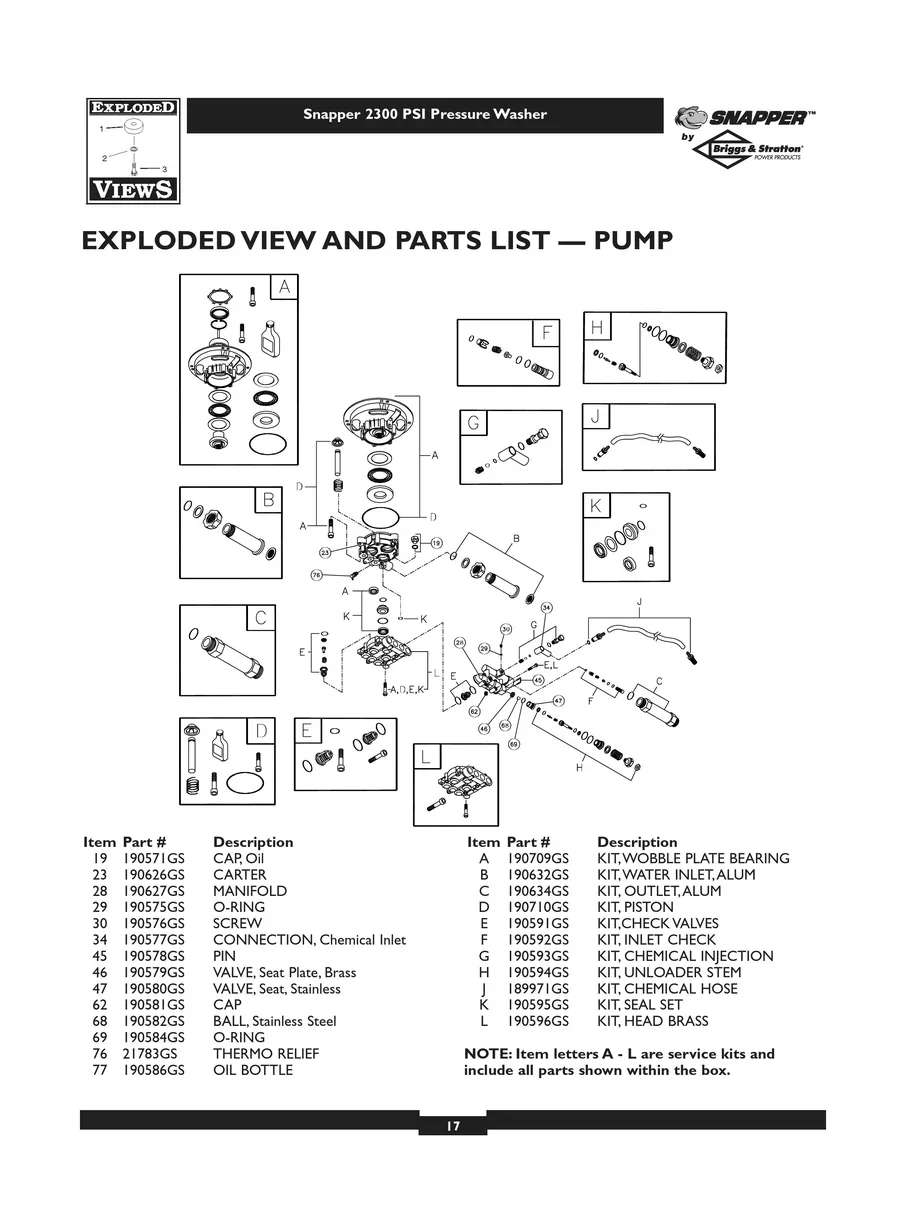

Illustrated Parts List
