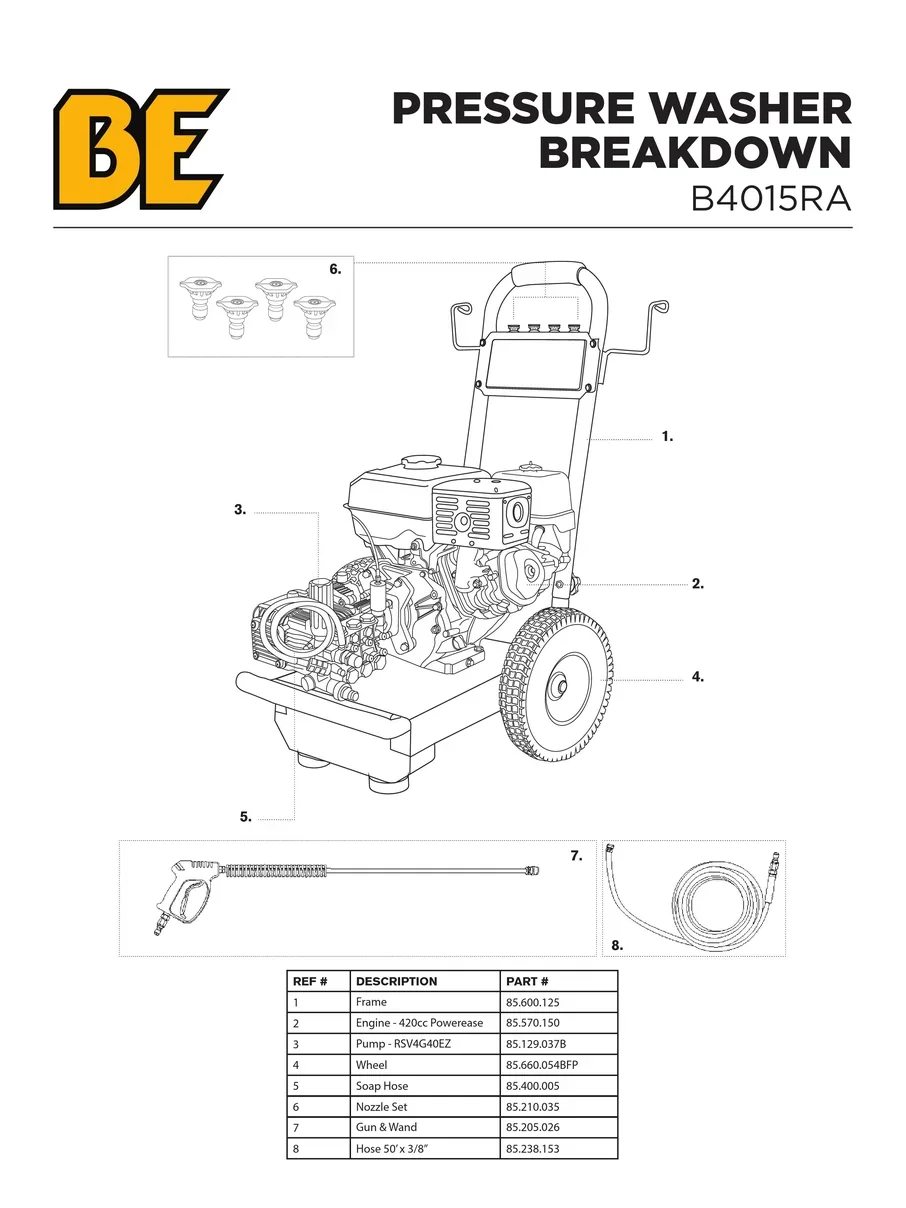

BE, B4015RA, IPL.1

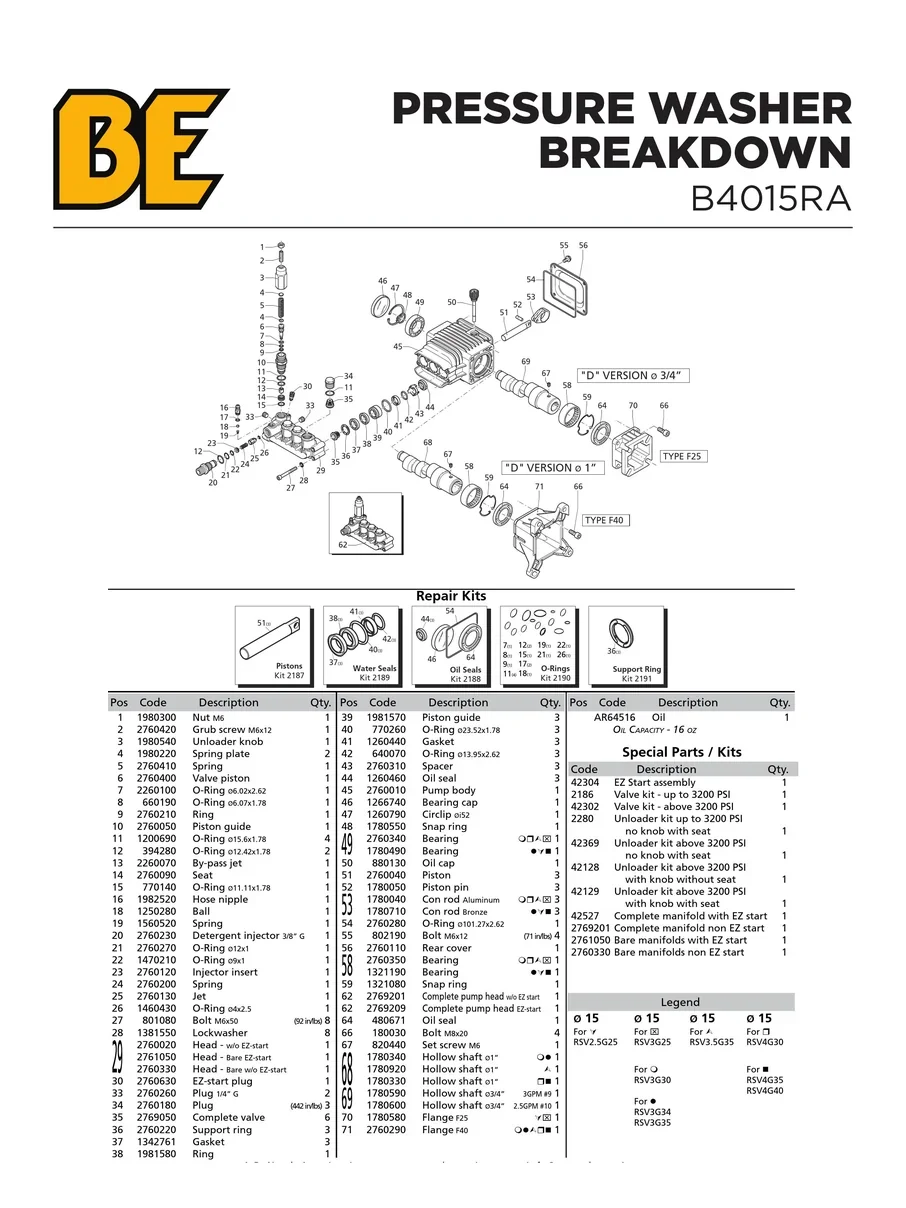

BE, B4015RA, IPL.3
TECHNICAL SPECIFICATIONS
DOCUMENTS
Product Specifications and Attributes
Color Color Black Max PSI Max PSI 4000 PSI
Direction Direction Forward Facing Nozzle Count Nozzle Count 4
Drive Type Drive Type Direct Nozzle Orifice Size Nozzle Orifice Size 4
Frame Orientation Frame Orientation Vertical Nozzle Type Nozzle Type Quick Connect
Frame Type Frame Type Cart Power Source Power Source Gasoline
Gun Inlet Gun Inlet 0" QC Plug Pressure Washer Type Pressure Washer Type Cold Water
Gun Outlet Gun Outlet 0" NPT F Pump Orientation Pump Orientation Horizontal
Hose Diameter Hose Diameter 0" Pump Shaft Diameter Pump Shaft Diameter 1"
Hose Inlet Hose Inlet 0" Pump Type Pump Type Triplex Plunger
Hose Length Hose Length 25' Shaft Type Shaft Type Hollow Shaft
Hose Material Hose Material Rubber Wand Inlet Wand Inlet 0" NPT M
Hose Outlet Hose Outlet 0" Weight Weight 125 lb
Max GPM Max GPM 4 GPM

Illustrated Parts List

Owners Manual

Spec Sheet
