TECHNICAL SPECIFICATIONS
DOCUMENTS
Product Specifications and Attributes
Color Color Black Nozzle Count Nozzle Count 4
Direction Direction Reverse Facing Nozzle Orifice Size Nozzle Orifice Size 3
Drive Type Drive Type Direct Nozzle Type Nozzle Type Quick Connect
Frame Orientation Frame Orientation Vertical Power Source Power Source Gasoline
Frame Type Frame Type Cart Pressure Washer Type Pressure Washer Type Cold Water
Hose Diameter Hose Diameter 0" Pump Orientation Pump Orientation Horizontal
Hose Inlet Hose Inlet 22 mm 14 F Pump Shaft Diameter Pump Shaft Diameter 1"
Hose Length Hose Length 25' Pump Type Pump Type Triplex Plunger
Hose Material Hose Material Thermoplastic Shaft Type Shaft Type Hollow Shaft
Hose Outlet Hose Outlet 22 mm 14 F Wand Inlet Wand Inlet 22 mm 14 M
Max GPM Max GPM 2 GPM Weight Weight 75 lb
Max PSI Max PSI 3100 PSI

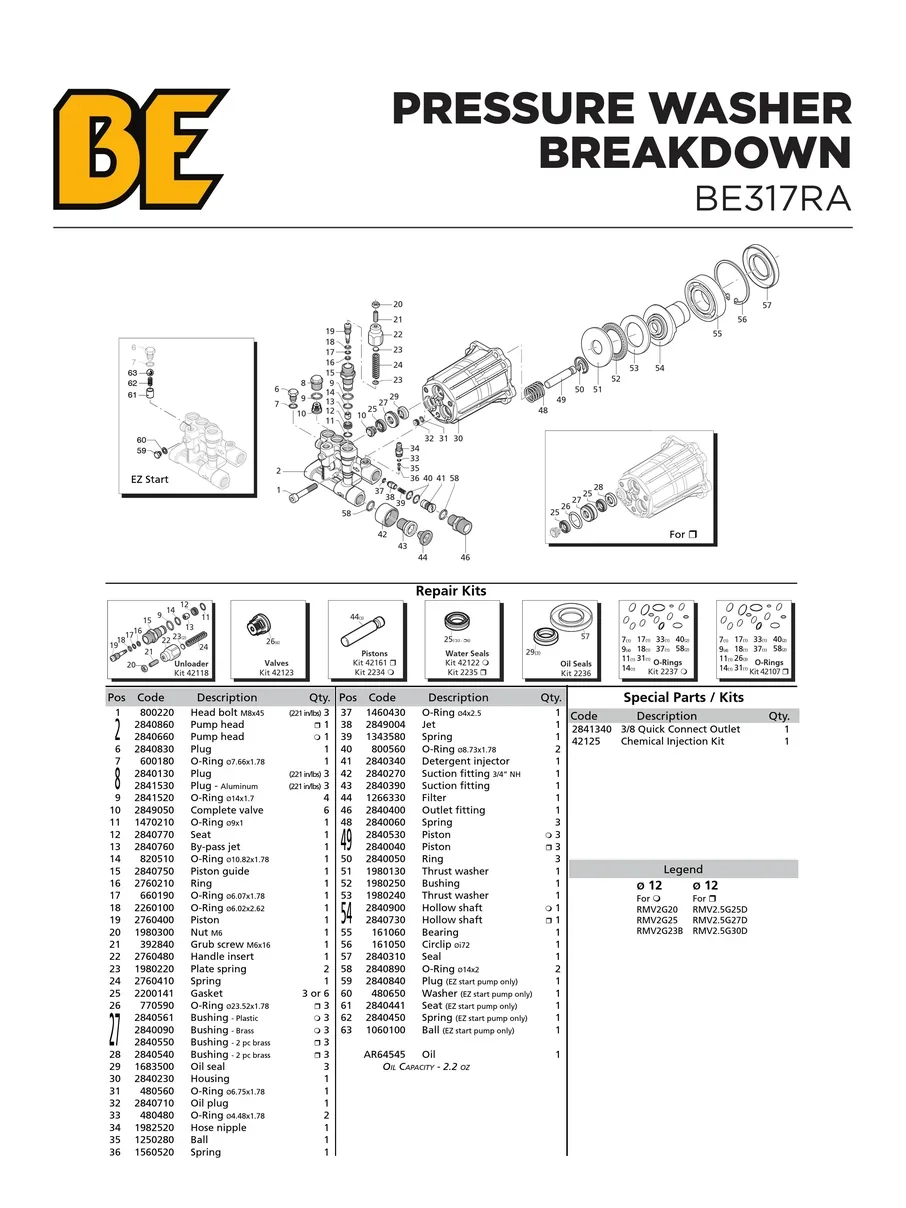

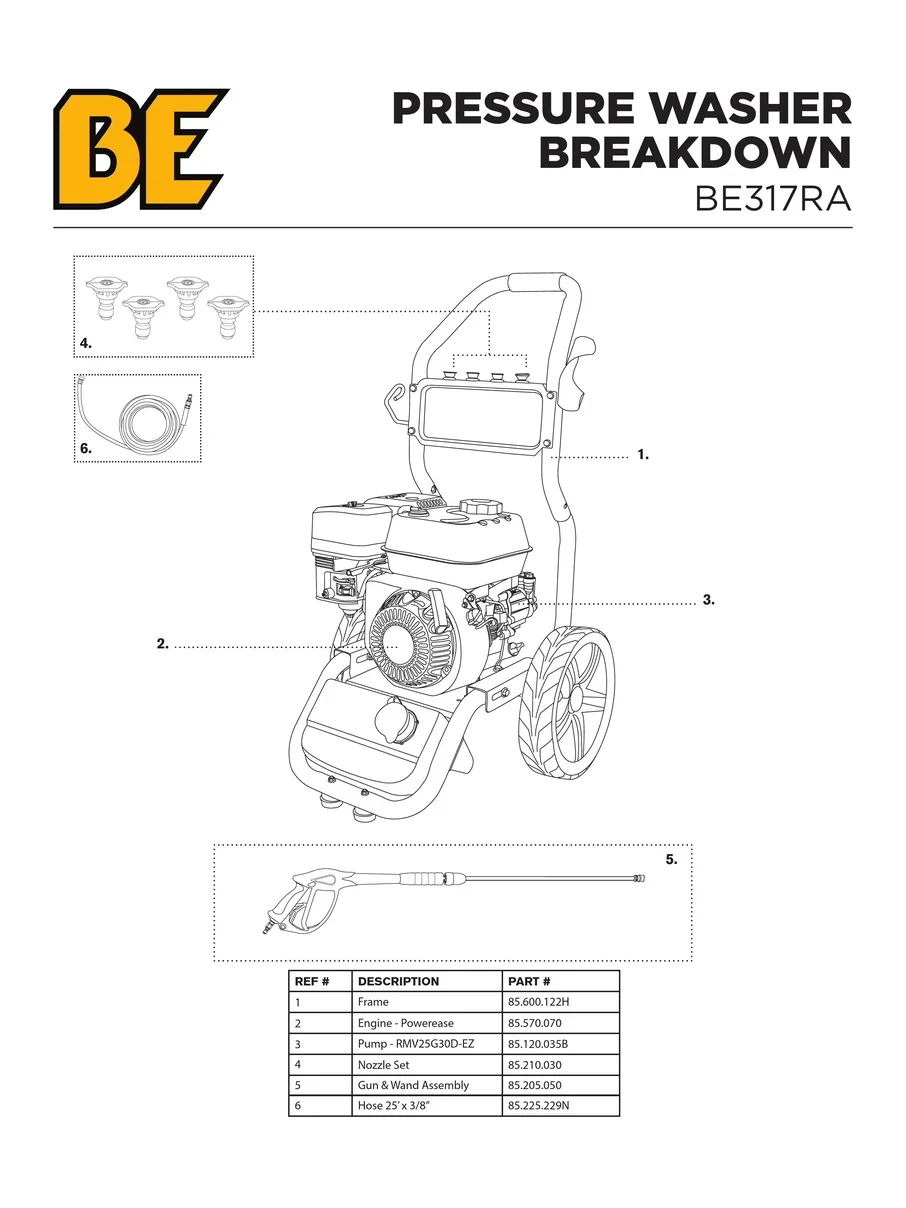

Illustrated Parts List

Owners Manual

Spec Sheet
