TECHNICAL SPECIFICATIONS
DOCUMENTS
Product Specifications and Attributes
Direction Direction Reverse Facing Max PSI Max PSI 2700 PSI
Drive Type Drive Type Direct Nozzle Orifice Size Nozzle Orifice Size 3
Frame Orientation Frame Orientation Vertical Nozzle Type Nozzle Type Quick Connect
Frame Type Frame Type Cart Power Source Power Source Gasoline
Gun Inlet Gun Inlet 22 mm 14 M Pressure Washer Type Pressure Washer Type Cold Water
Gun Outlet Gun Outlet 22 mm 14 F Pump Orientation Pump Orientation Vertical
Hose Inlet Hose Inlet 22 mm 14 F Pump Shaft Diameter Pump Shaft Diameter 1"
Hose Length Hose Length 25' Pump Type Pump Type Triplex Plunger
Hose Material Hose Material Thermoplastic Shaft Type Shaft Type Hollow Shaft
Hose Outlet Hose Outlet 22 mm 14 F Wand Inlet Wand Inlet 22 mm 14 M
Max GPM Max GPM 2 GPM Wand Length Wand Length 20"

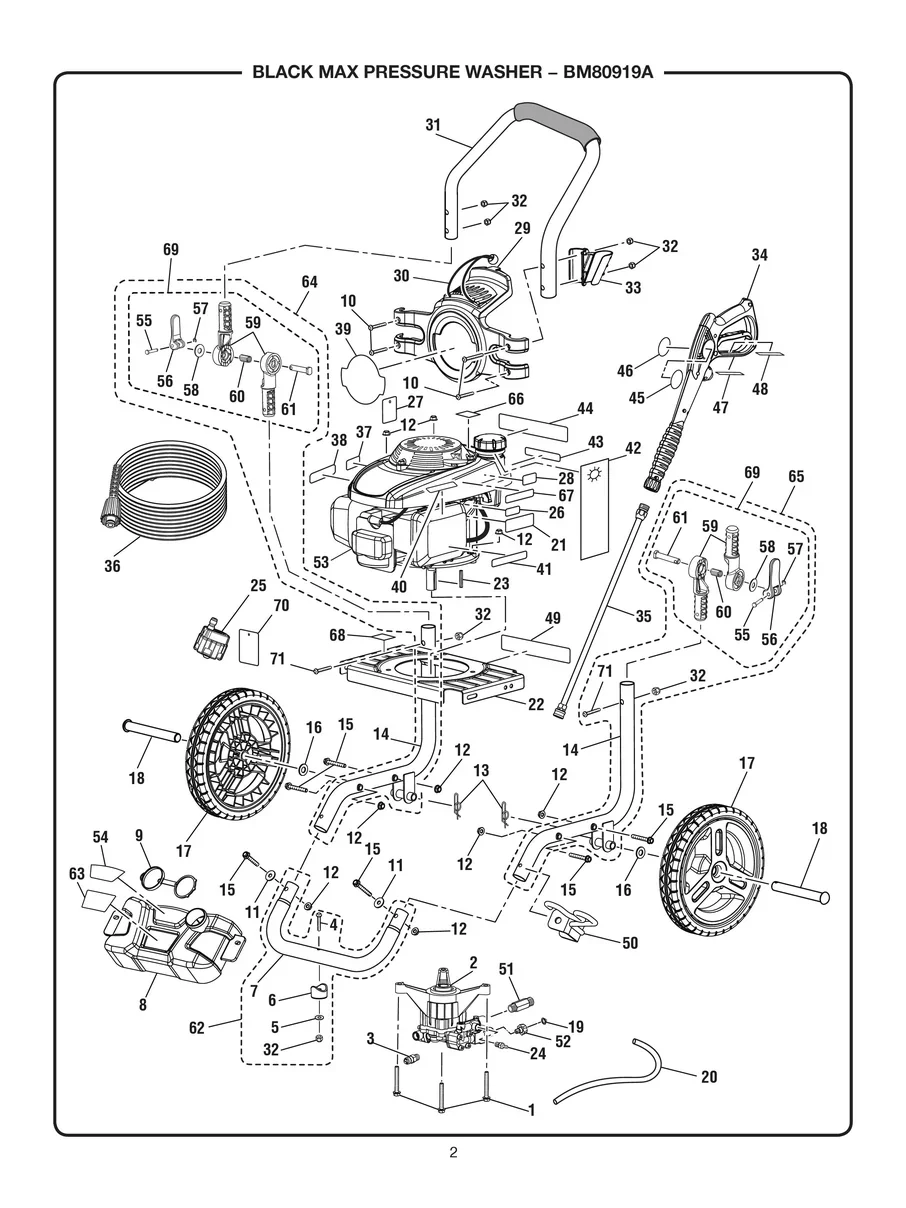

Illustrated Parts List

Owners Manual
