TECHNICAL SPECIFICATIONS
DOCUMENTS
Product Specifications and Attributes
Direction Direction Reverse Facing Nozzle Orifice Size Nozzle Orifice Size 3
Drive Type Drive Type Direct Nozzle Type Nozzle Type Quick Connect
Frame Orientation Frame Orientation Horizontal Power Source Power Source Gasoline
Frame Type Frame Type Cart Pressure Washer Type Pressure Washer Type Cold Water
Gun Inlet Gun Inlet 0" QC Plug Pump Orientation Pump Orientation Horizontal
Gun Outlet Gun Outlet 22 mm 14 F Pump Shaft Diameter Pump Shaft Diameter 1"
Hose Inlet Hose Inlet 0" QC Plug Pump Type Pump Type Triplex Plunger
Hose Outlet Hose Outlet 0" QC Socket Shaft Type Shaft Type Hollow Shaft
Max GPM Max GPM 2 GPM Wand Inlet Wand Inlet 22 mm 14 M
Max PSI Max PSI 3000 PSI Wand Length Wand Length 20"
Max Temperature Max Temperature 140 F

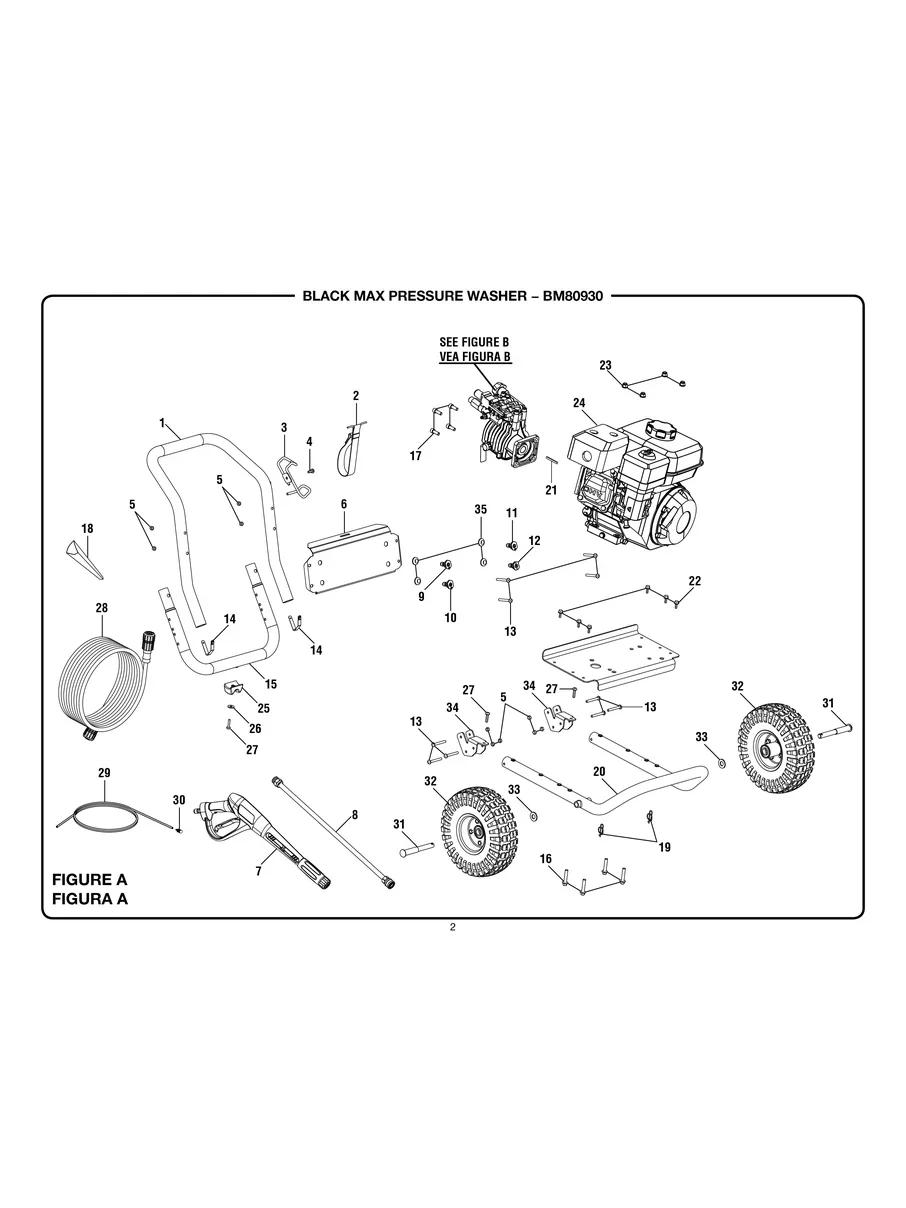

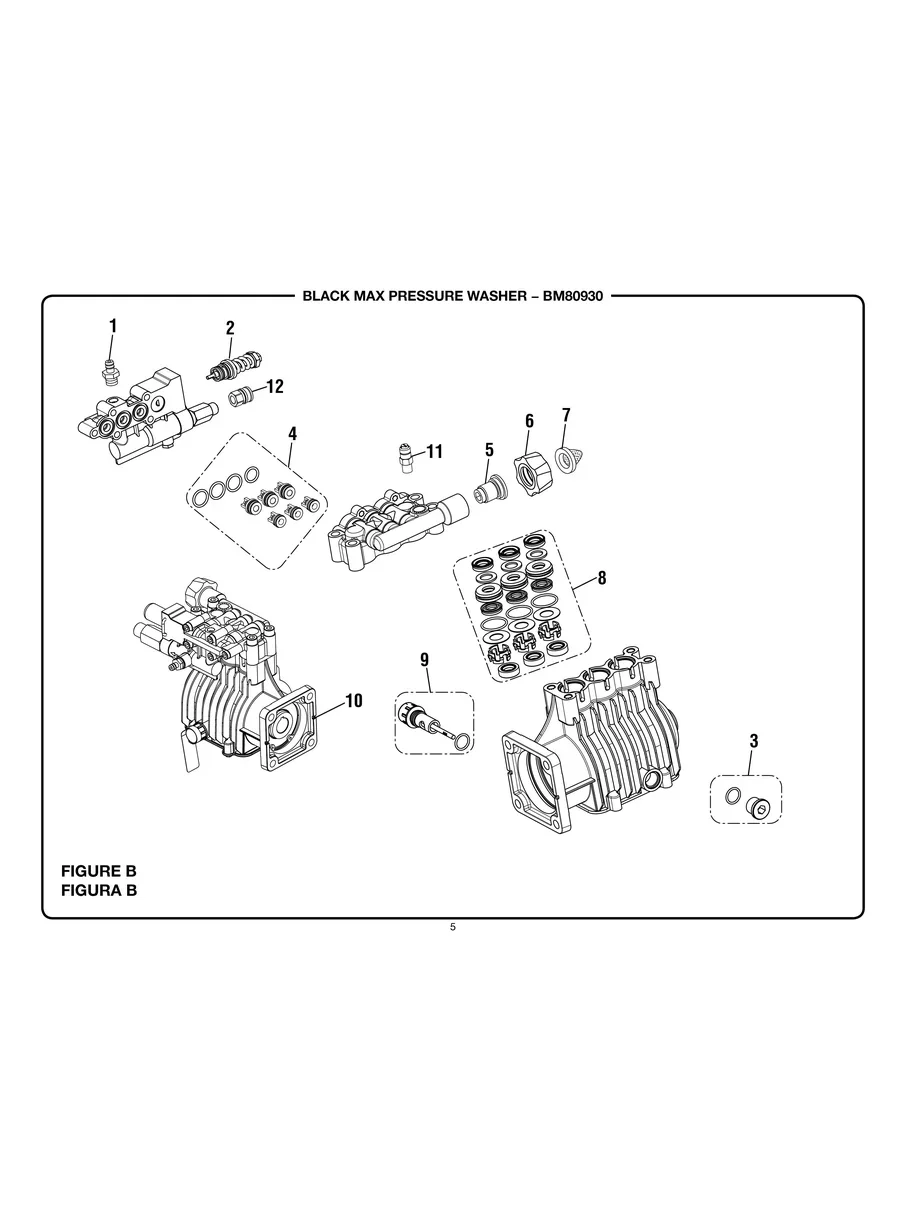

Illustrated Parts List
