TECHNICAL SPECIFICATIONS
DOCUMENTS
Product Specifications and Attributes
Direction Direction Reverse Facing Hose Outlet Hose Outlet 22 mm 14 F
Drive Type Drive Type Direct Max PSI Max PSI 2500 PSI
Frame Orientation Frame Orientation Vertical Nozzle Type Nozzle Type Variable
Frame Type Frame Type Cart Power Source Power Source Gasoline
Gun Inlet Gun Inlet 22 mm 14 M Pressure Washer Type Pressure Washer Type Cold Water
Gun Outlet Gun Outlet 22 mm 14 F Pump Orientation Pump Orientation Horizontal
Hose Inlet Hose Inlet 22 mm 14 F Wand Inlet Wand Inlet 22 mm 14 M
Hose Length Hose Length 50' Wand Length Wand Length 20"
Hose Material Hose Material Rubber

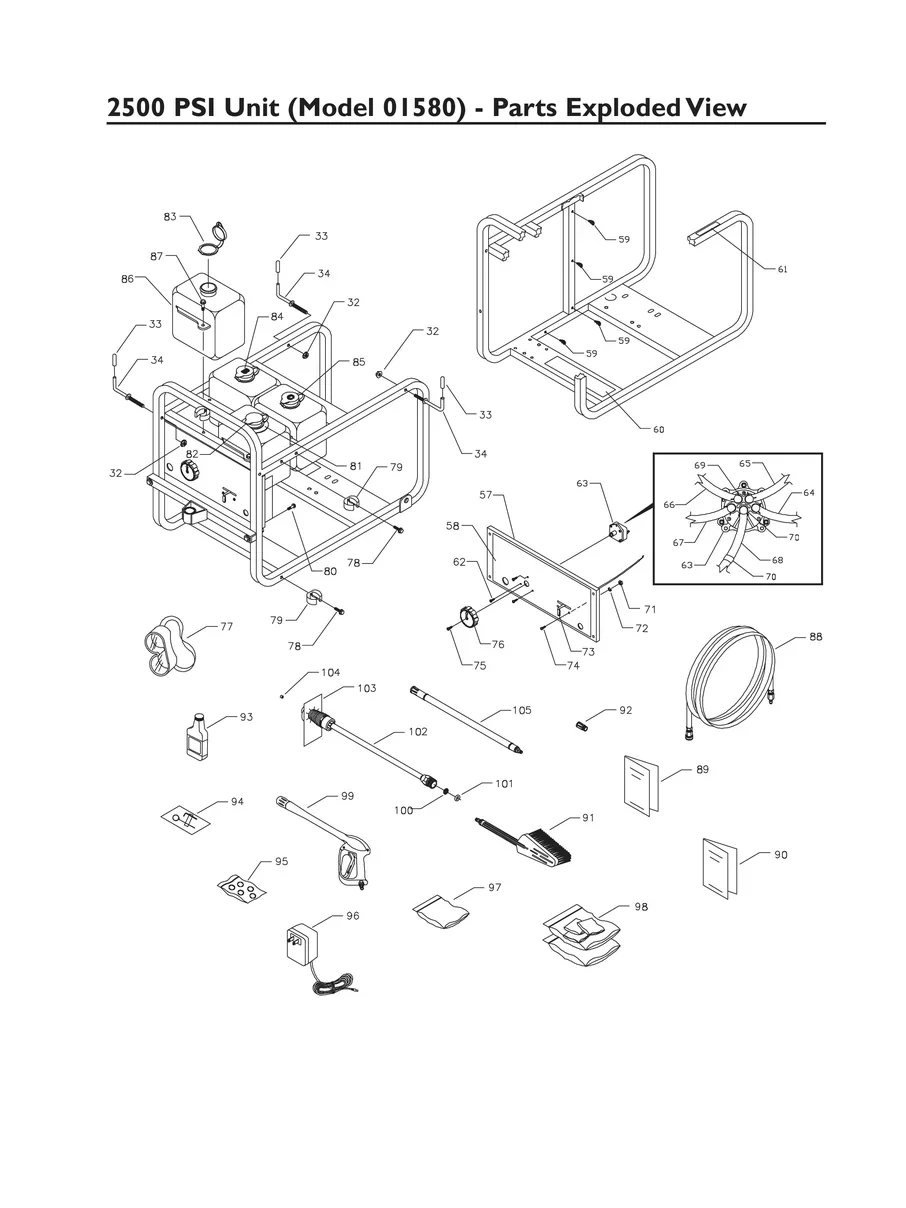

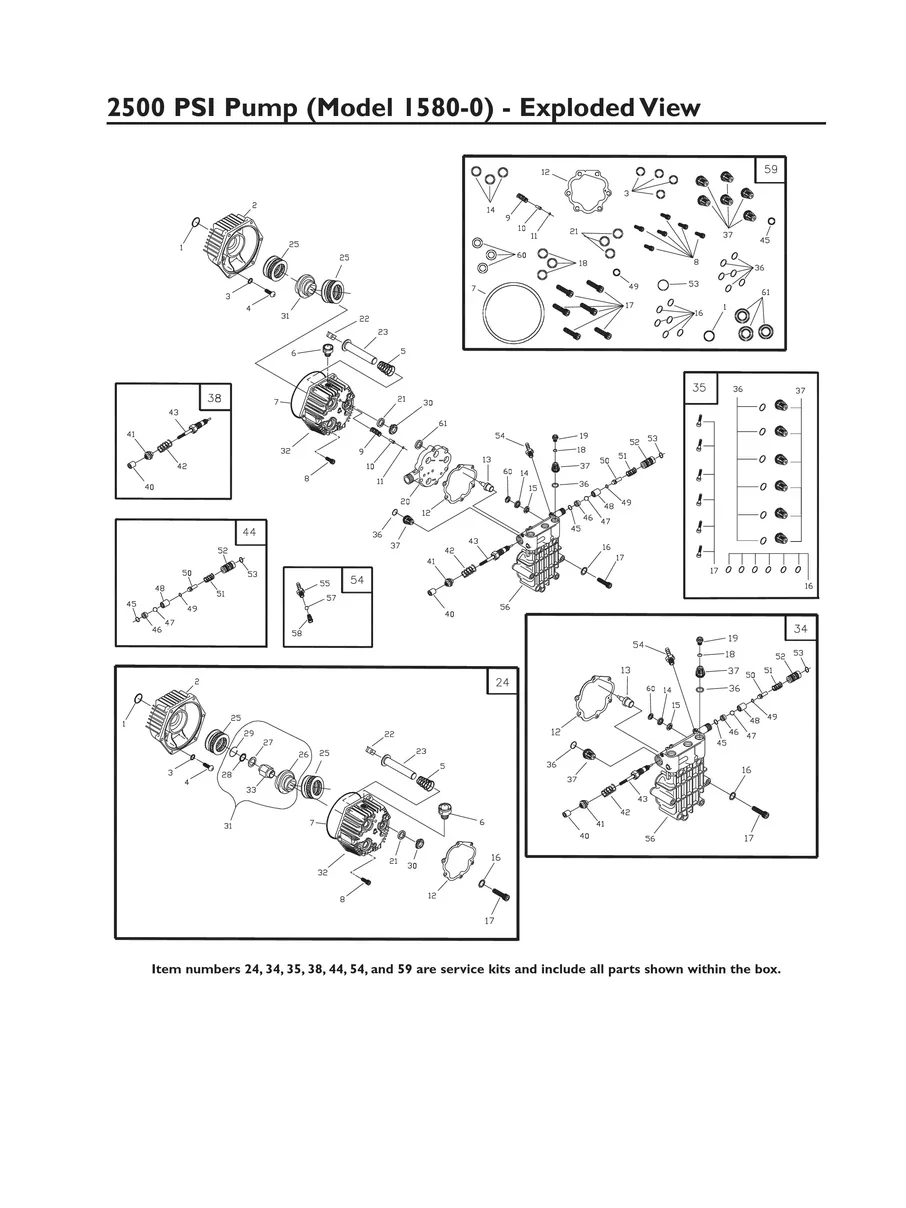

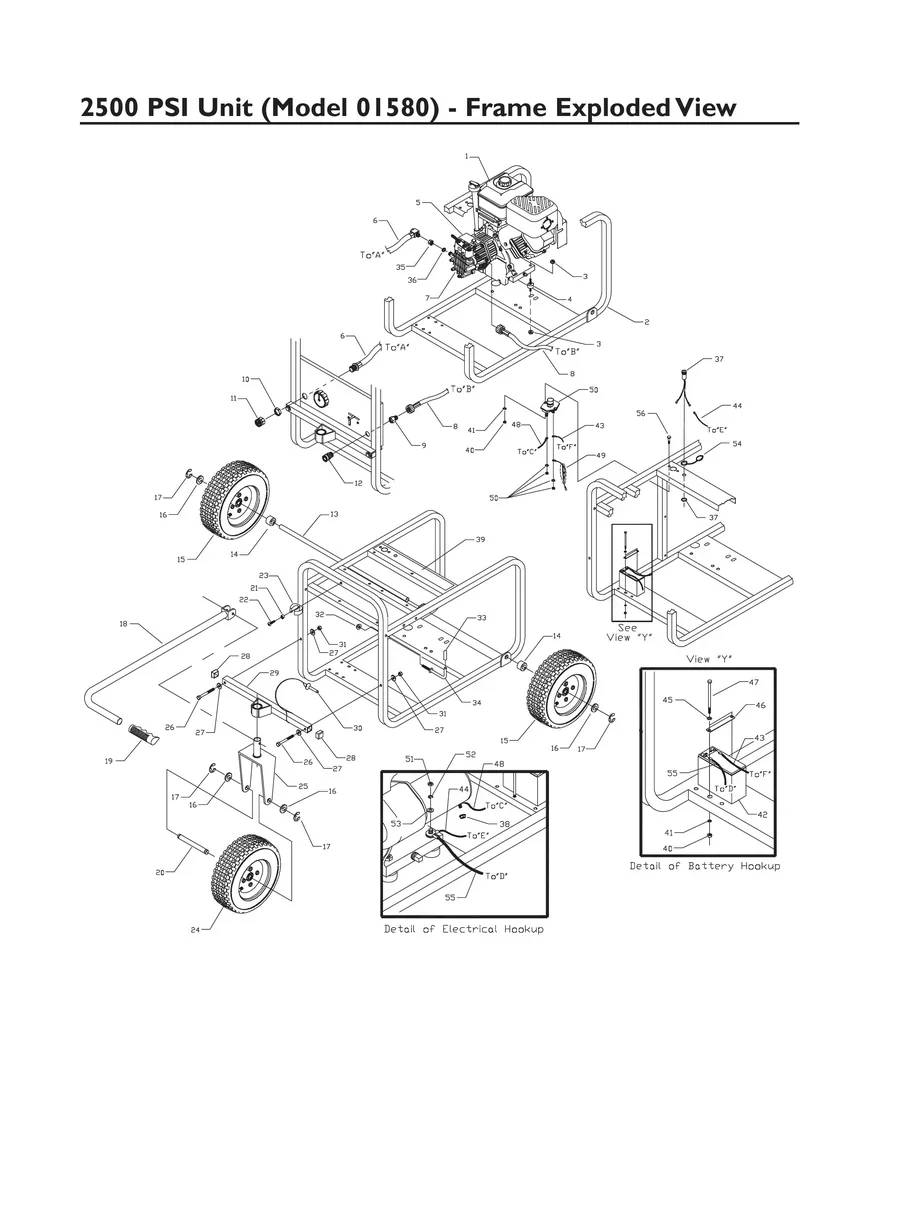

Illustrated Parts List
