TECHNICAL SPECIFICATIONS
DOCUMENTS
Product Specifications and Attributes
Direction Direction Forward Facing Max PSI Max PSI 3500 PSI
Drive Type Drive Type Direct Nozzle Count Nozzle Count 5
Frame Orientation Frame Orientation Vertical Nozzle Orifice Size Nozzle Orifice Size 4
Frame Type Frame Type Cart Nozzle Type Nozzle Type Quick Connect
Gun Inlet Gun Inlet 0" QC Plug Power Source Power Source Gasoline
Gun Outlet Gun Outlet 22 mm 14 F Pressure Washer Type Pressure Washer Type Cold Water
Hose Inlet Hose Inlet 0" QC Plug Pump Orientation Pump Orientation Horizontal
Hose Length Hose Length 50' Shaft Type Shaft Type Hollow Shaft
Hose Material Hose Material Rubber Wand Inlet Wand Inlet 22 mm 14 M
Hose Outlet Hose Outlet 0" QC Socket Wand Length Wand Length 20"

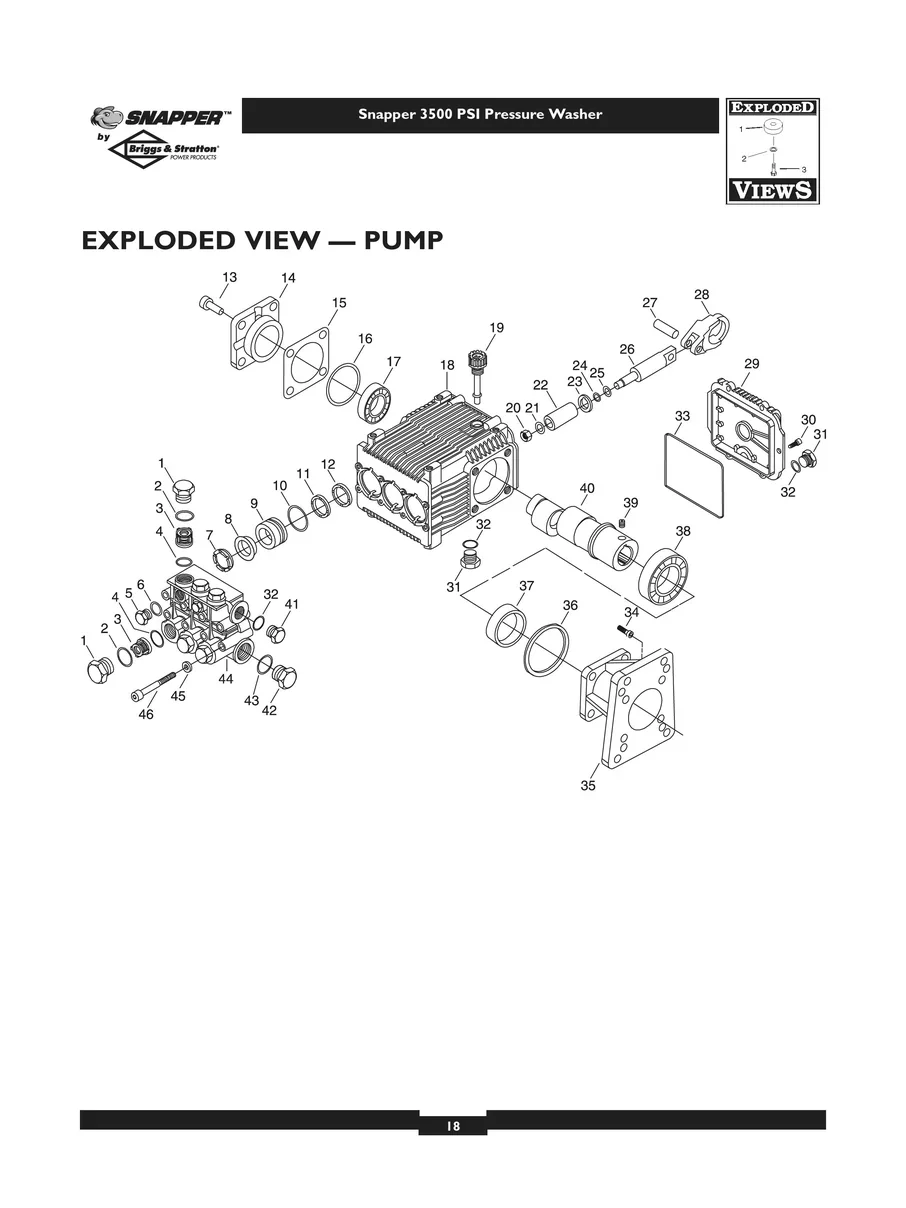

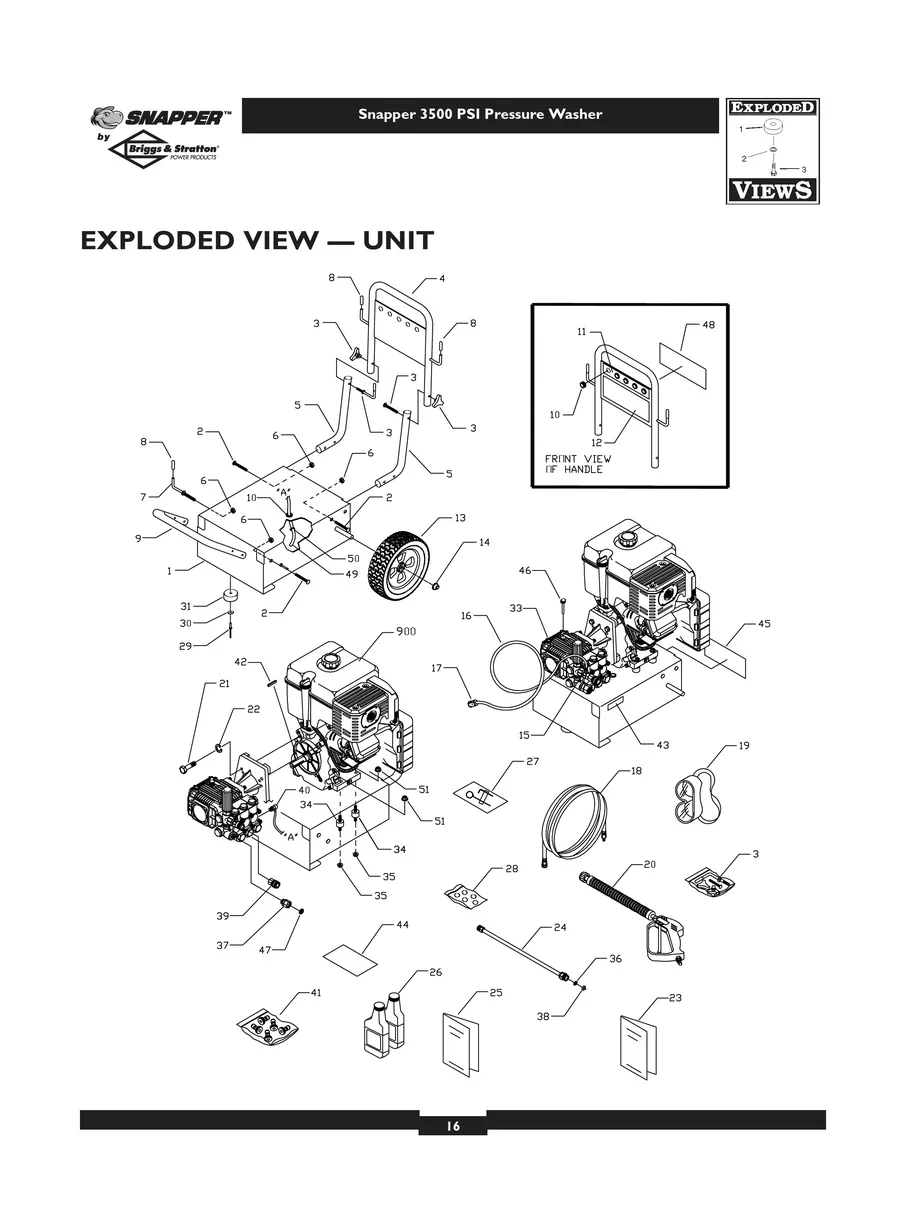

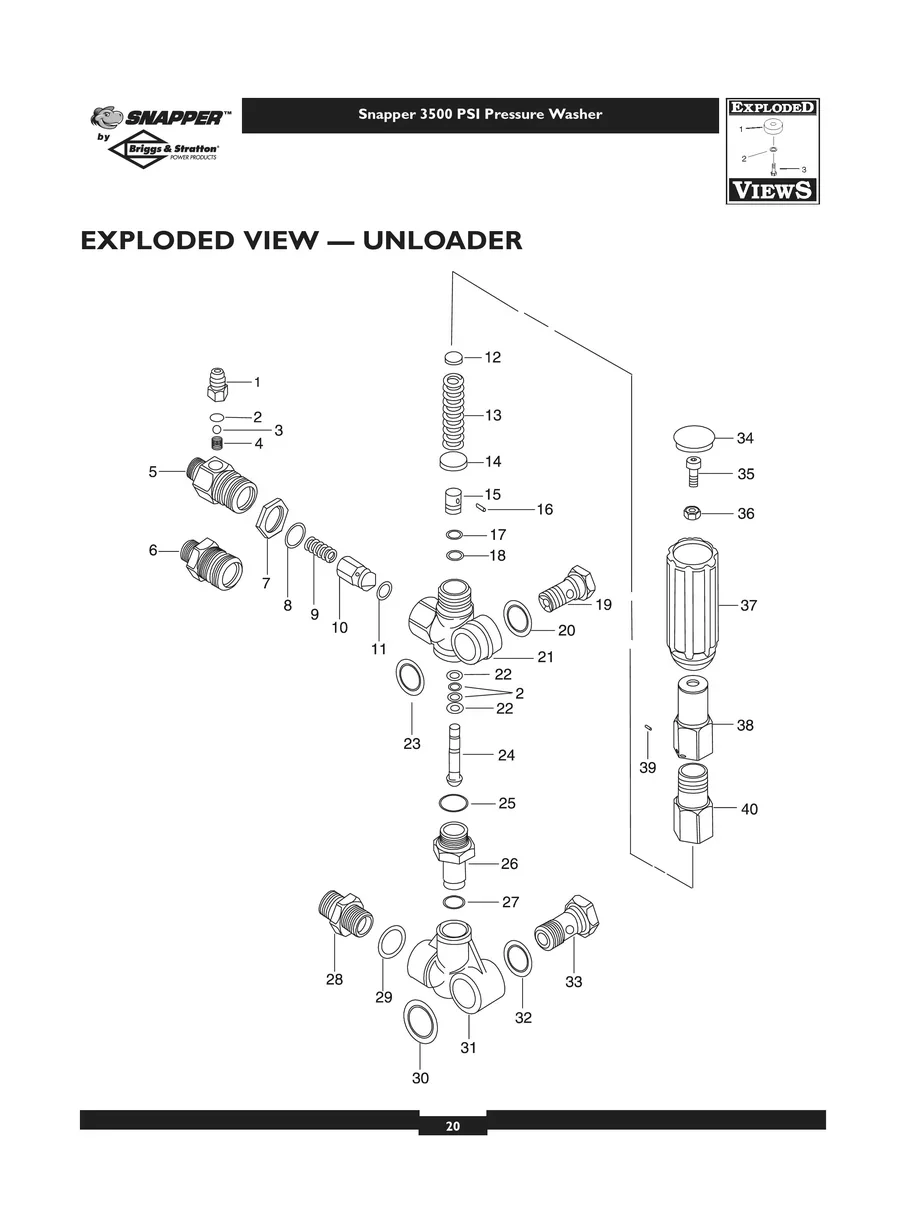

Illustrated Parts List
