TECHNICAL SPECIFICATIONS
DOCUMENTS
Product Specifications and Attributes
Color Color Black Nozzle Count Nozzle Count 4
Drive Type Drive Type Direct Nozzle Orifice Size Nozzle Orifice Size 3
Frame Orientation Frame Orientation Vertical Nozzle Type Nozzle Type Quick Connect
Frame Type Frame Type Cart Power Source Power Source Gasoline
Gun Inlet Gun Inlet 22 mm 14 M Pressure Washer Type Pressure Washer Type Cold Water
Gun Outlet Gun Outlet 22 mm 14 F Pump Orientation Pump Orientation Vertical
Hose Outlet Hose Outlet 22 mm 14 F Shaft Type Shaft Type Hollow Shaft
Max GPM Max GPM 2 GPM Wand Inlet Wand Inlet 22 mm 14 M
Max PSI Max PSI 2500 PSI Wand Length Wand Length 20"

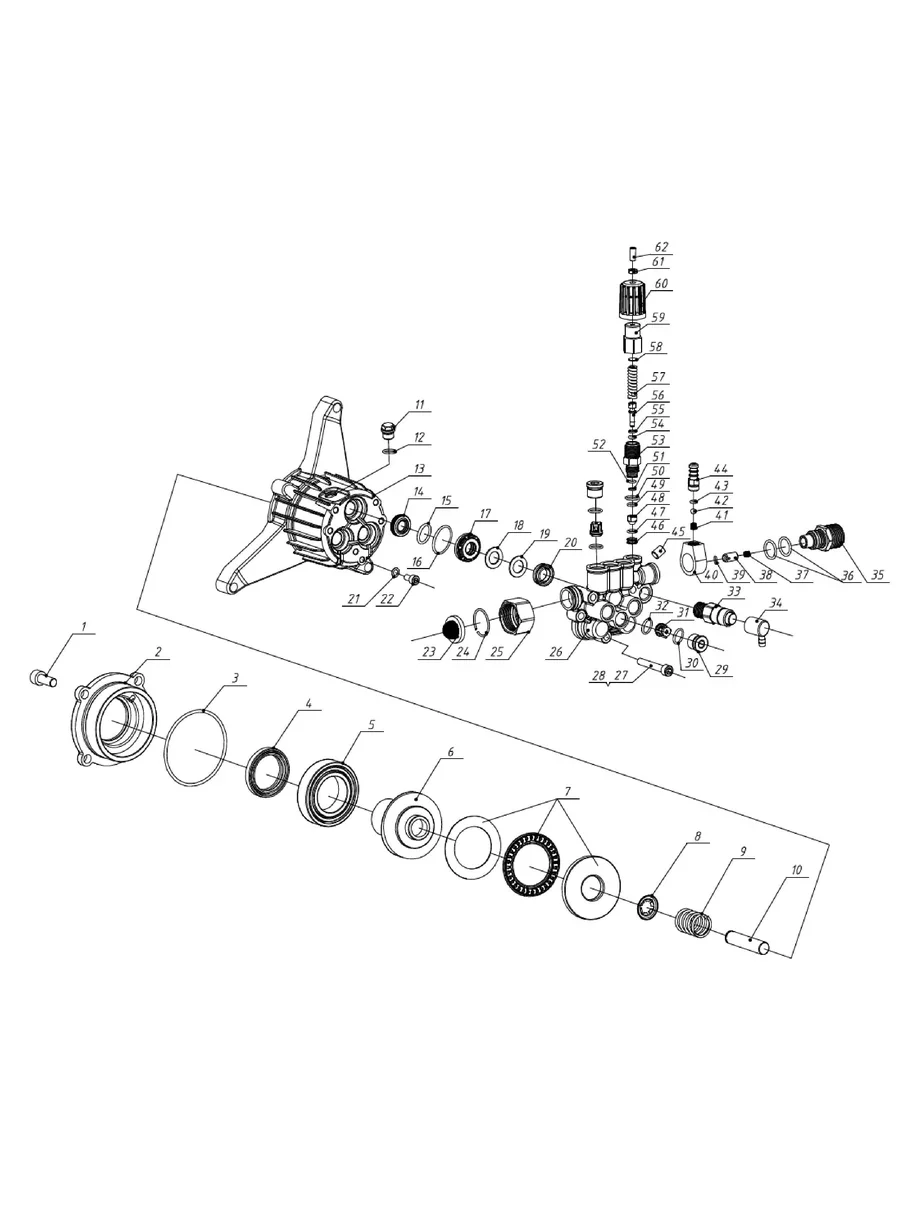

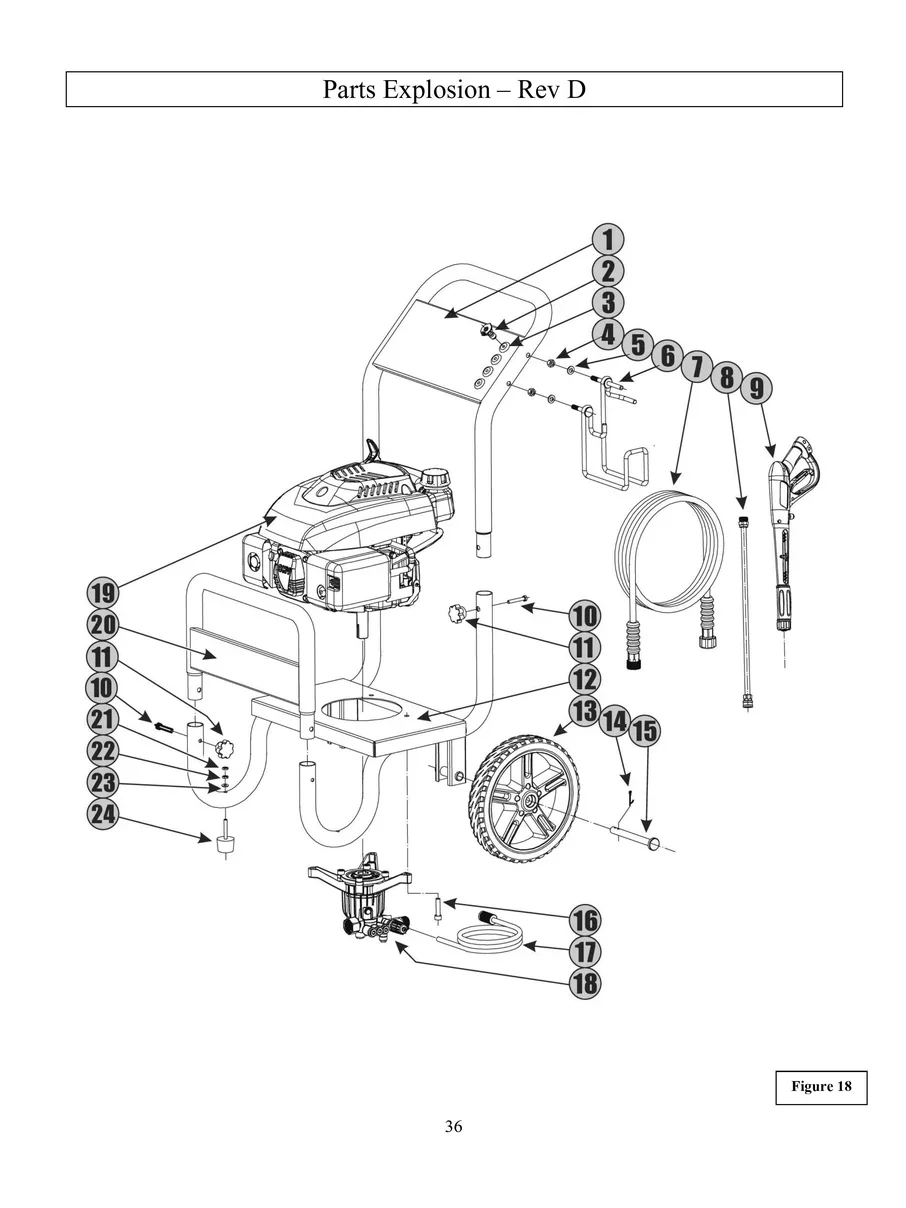

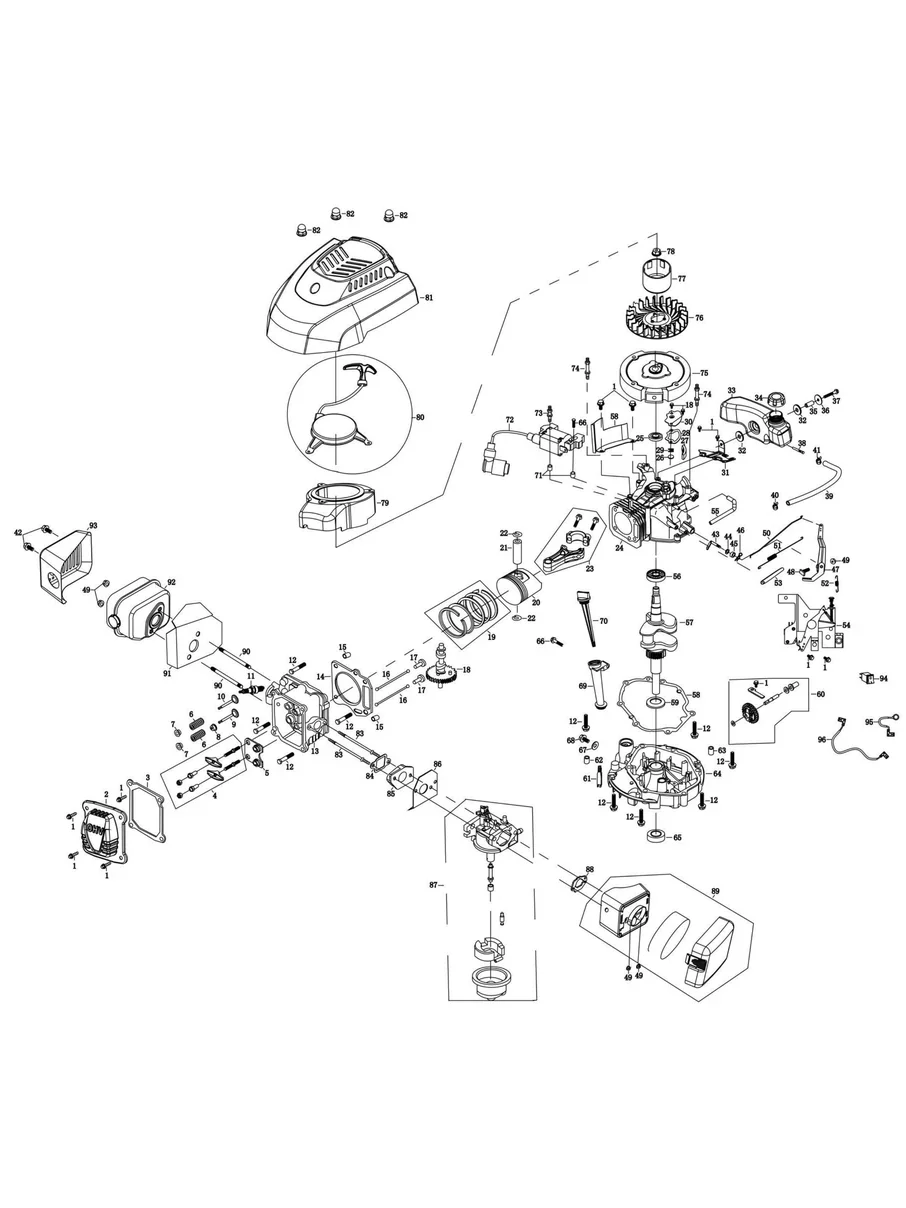

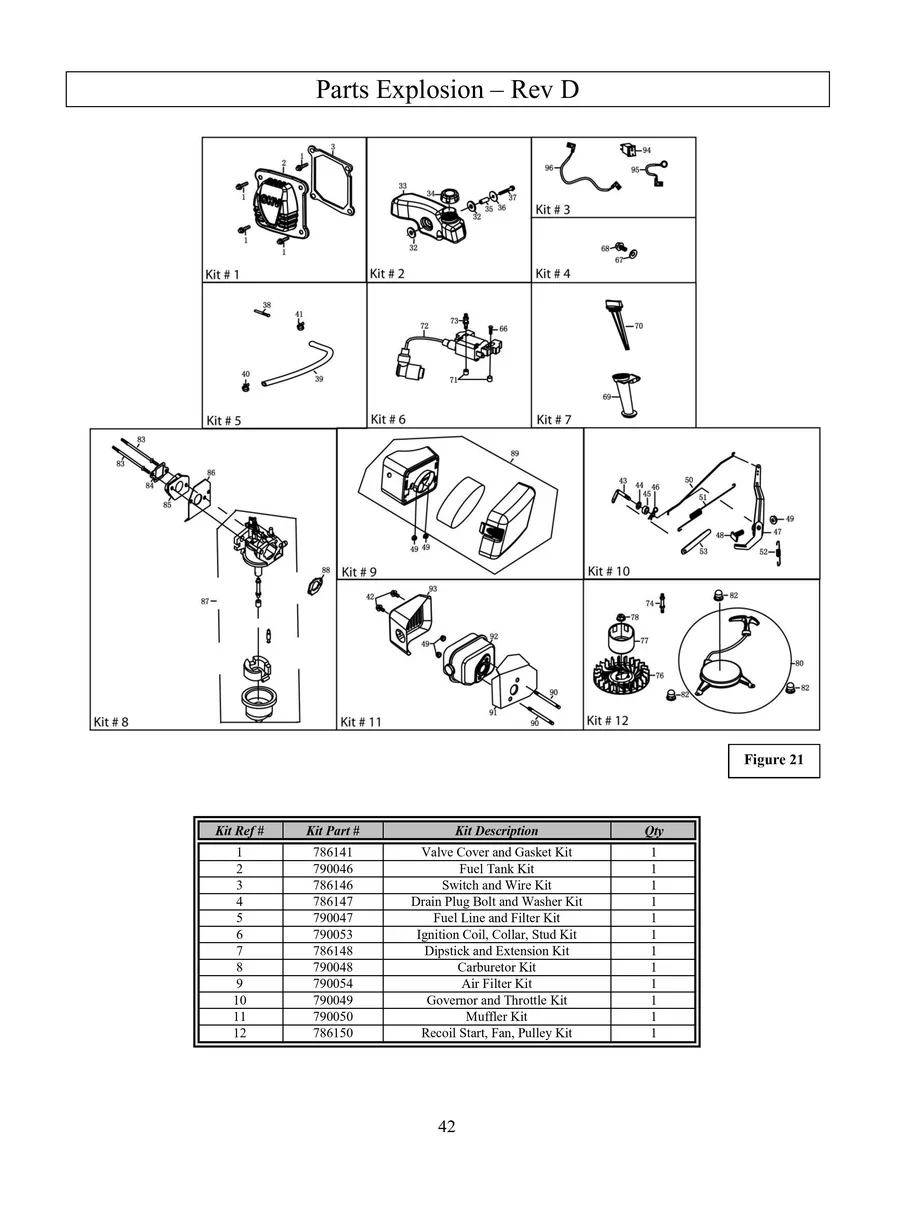

Illustrated Parts List
